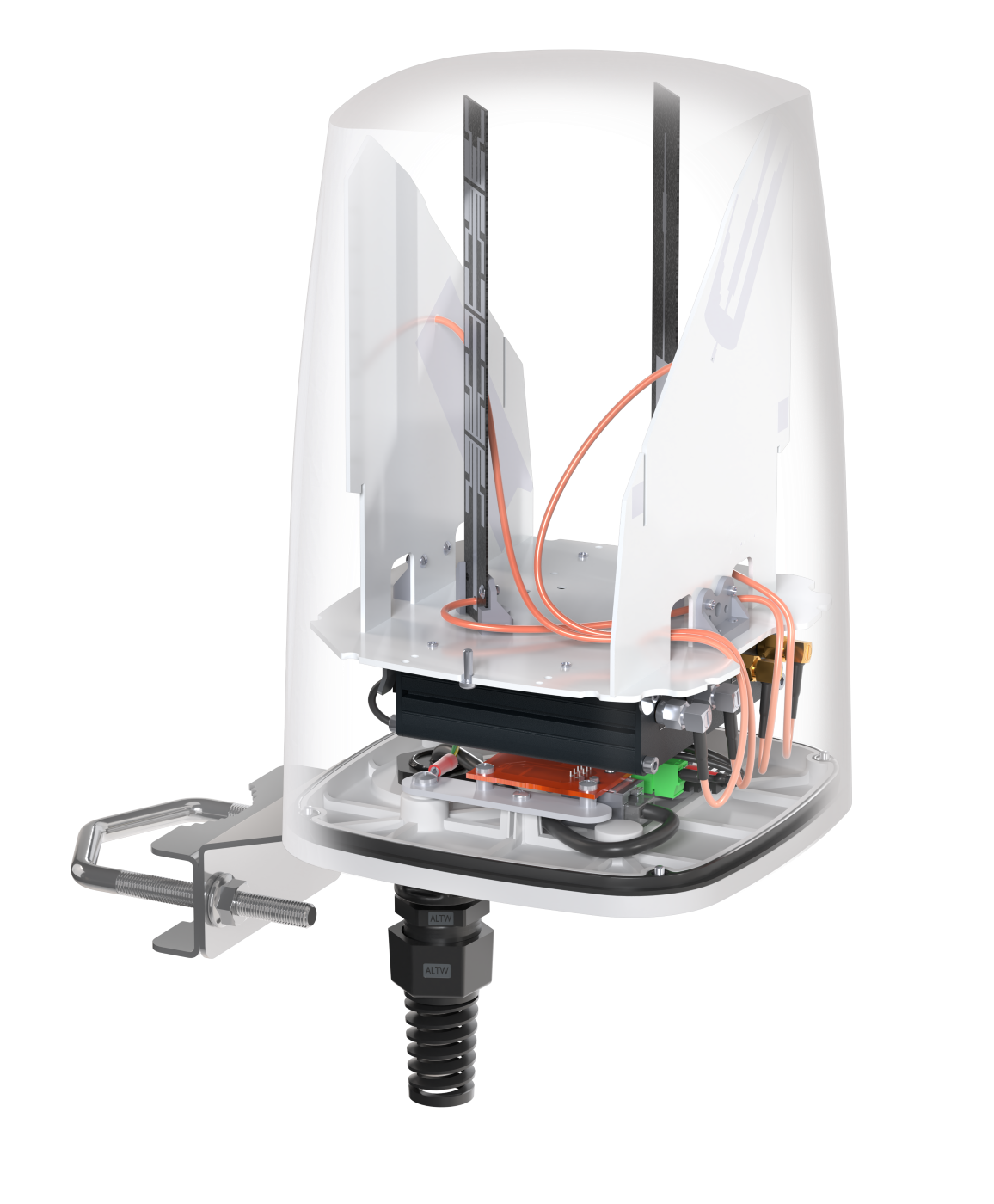

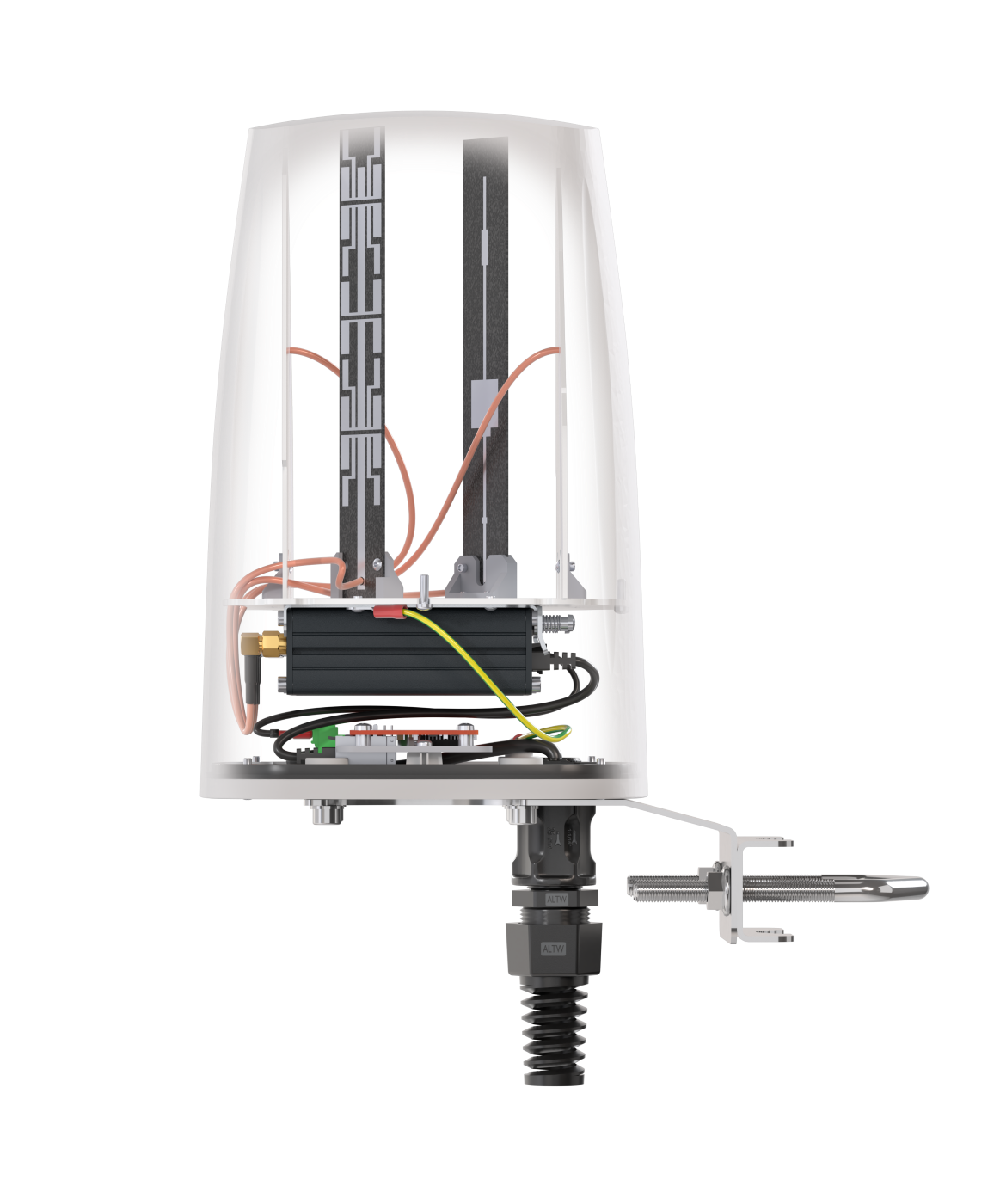

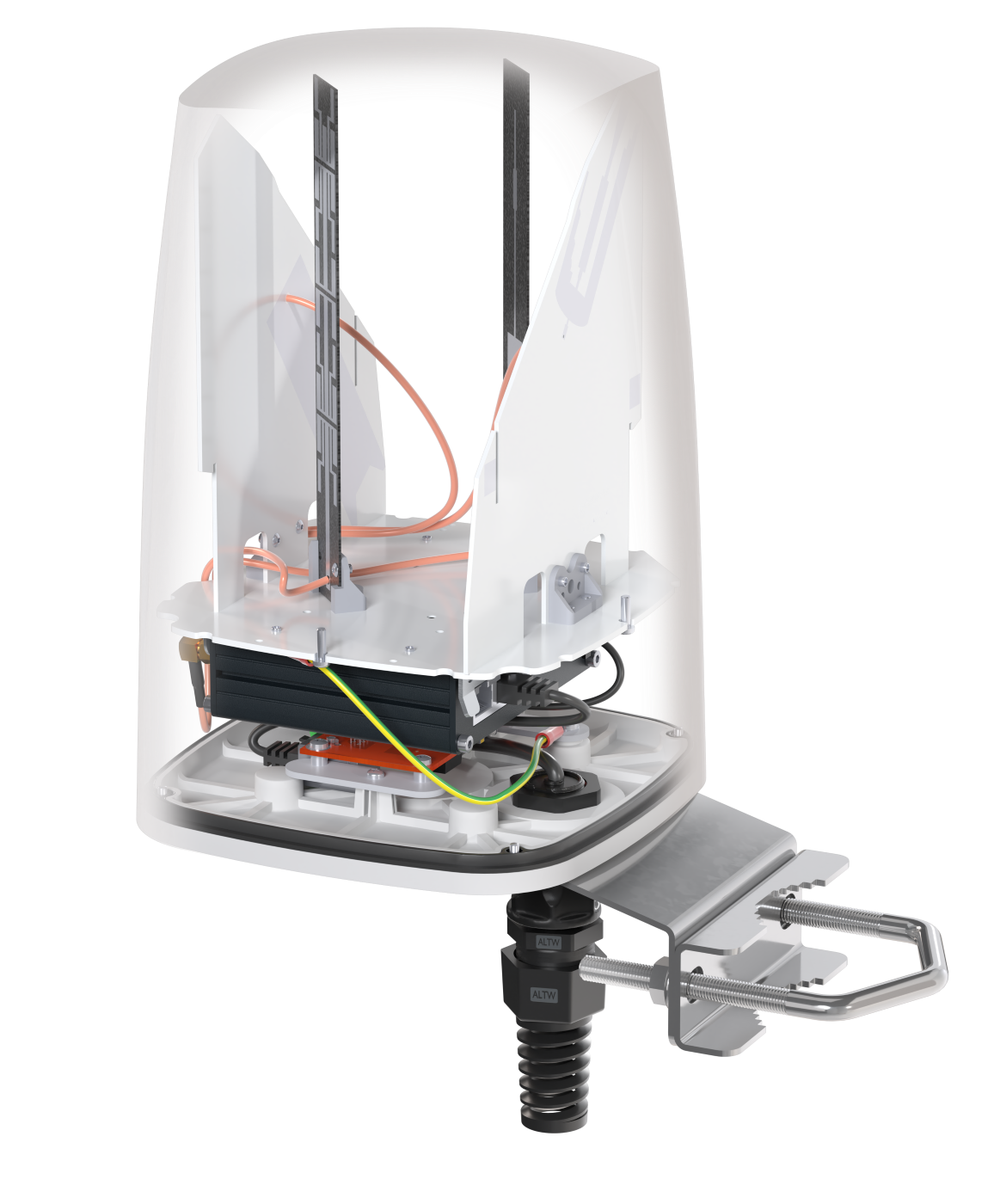

QuSpot for Teltonika RUT360/RUT361QuSpot for Teltonika RUT360/RUT361
QuSpot for Teltonika RUT360/RUT361QuSpot for Teltonika RUT360/RUT361
QuSpot for Teltonika RUT360/RUT361QuSpot for Teltonika RUT360/RUT361
QuSpot for Teltonika RUT360/RUT361QuSpot for Teltonika RUT360/RUT361
QuSpot for Teltonika RUT360/RUT361QuSpot for Teltonika RUT360/RUT361

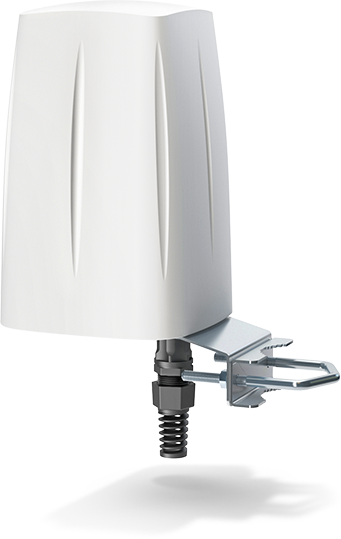

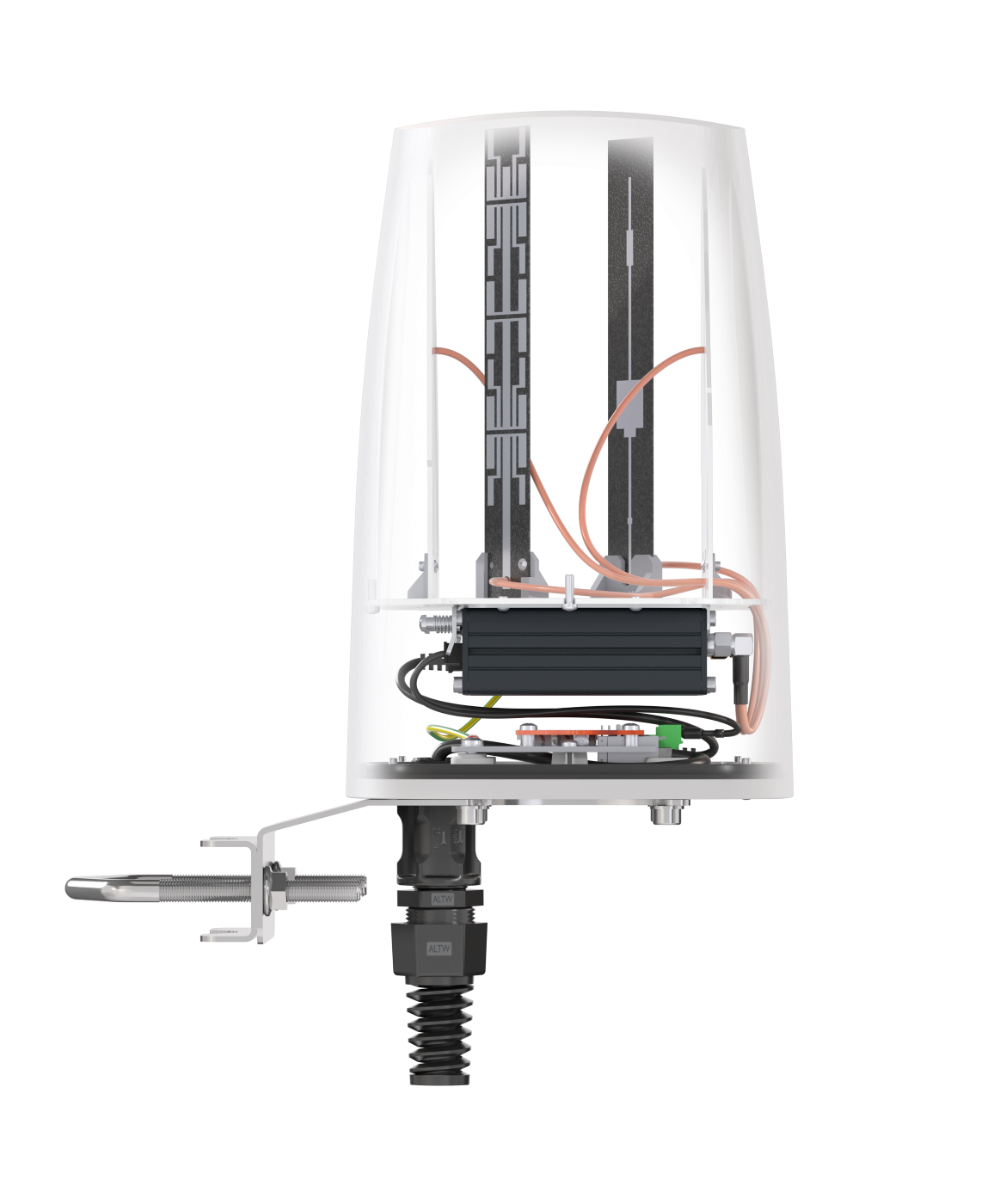

Antenna QuSpot for Teltonika RUT360/RUT361

P/n: A360S

Integrated multi-band LTE omni antennas + WiFi omni antennas + place to install Teltonika RUT360/RUT361 (All-in-one)

QuSpot omni LTE antenna for Teltonika RUT360/RUT361 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded also omni Wi-Fi antennas. If you use RUT360/RUT361 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Technical specification

Any question?

Contact us

Why QuSpot for Teltonika RUT360/RUT361

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the router

Passive PoE support

Made in Europe

QuSpot for Teltonika RUT360/RUT361

SPECIFICATION

PRODUCT DETAILS

LTE antenna specification

Wi-Fi antenna specification

Mechanical specification

Frequency bands

COMPATIBLE ROUTERS

Frequency

694 - 960 MHz

1.7 - 2.2 GHz

2.2 - 2.7 GHz

Gain

694 - 960 MHz : 2 dBi

1.7 - 2.2 GHz : 2 dBi

2.2 - 2.7 GHz : 4 dBi

Supported LTE/5G bands

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95

VSWR

<1.60, max <2.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for Wi-Fi antenna

VSWR for Wi-Fi antenna of QuSpot for Teltonika RUT360/RUT361

VSWR for LTE antenna

VSWR for LTE antenna of QuSpot for Teltonika RUT360/RUT361

Gain for Wi-Fi antenna

Gain for Wi-Fi antenna of QuSpot for Teltonika RUT360/RUT361

Gain for LTE antenna

Gain for LTE antenna of QuSpot for Teltonika RUT360/RUT361
LTE from 700MHz to 900MHz
Elevation
Azimuth
LTE from 1.71 GHz to 2.17GHz
Elevation
Azimuth
LTE from 2.3GHz to 2.7GHz
Elevation
Azimuth
Wi-Fi 2.4GHz and 5GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuSpot for Teltonika RUT360/RUT361QuSpot for Teltonika RUT360/RUT361
QuSpot for Teltonika RUT360/RUT361QuSpot for Teltonika RUT360/RUT361

WHAT'S IN THE BOX?

PRODUCT DETAILS

In the box

QuSpot for RUT360

Parts of QuSpot for Teltonika RUT360/RUT361
1x Mounting for Teltonika RUT360
Parts of QuSpot for Teltonika RUT360/RUT361
1x 8mm wrench
Parts of QuSpot for Teltonika RUT360/RUT361
x4 3,1 x 12
Parts of QuSpot for Teltonika RUT360/RUT361
4x M6 x 10
Parts of QuSpot for Teltonika RUT360/RUT361
4x
Parts of QuSpot for Teltonika RUT360/RUT361
1x
Parts of QuSpot for Teltonika RUT360/RUT361
2x M8
Parts of QuSpot for Teltonika RUT360/RUT361
1x
Parts of QuSpot for Teltonika RUT360/RUT361
1x

Designed For

Download

Datasheet QuSpot for Teltonika RUT360/RUT361
Download
3D MODEL
Download
RUT360 QUICK START GUIDE
Download
Installation Guide
Download
IP67 Certificate
Download
IP68 Certificate
Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA
Use case QuSpot for Teltonika RUT360/RUT361
Use case QuSpot for Teltonika RUT360/RUT361
Use case QuSpot for Teltonika RUT360/RUT361
