QuPoE AT-12V-5V-FP - 802.3at Splitter & Lightning arrester
AT-12V-5V-FP
QuPoE AT-12V-5V-FP - active splitter that provides full PoE and data output protection. It is compliant with the IEEE802.3at standard. The device is ideal for outdoor applications and powering gateway devices, routers, etc.
QuPoE AT-12V-5V-FP splitter provides full PoE and data output protection. It is compliant with the IEEE802.3at standard and has a work temperature range of -40…+80C. The device has lightning, surge, ESD, EFT and power fault protection and is ideal for outdoor applications and powering gateway devices, routers, etc.

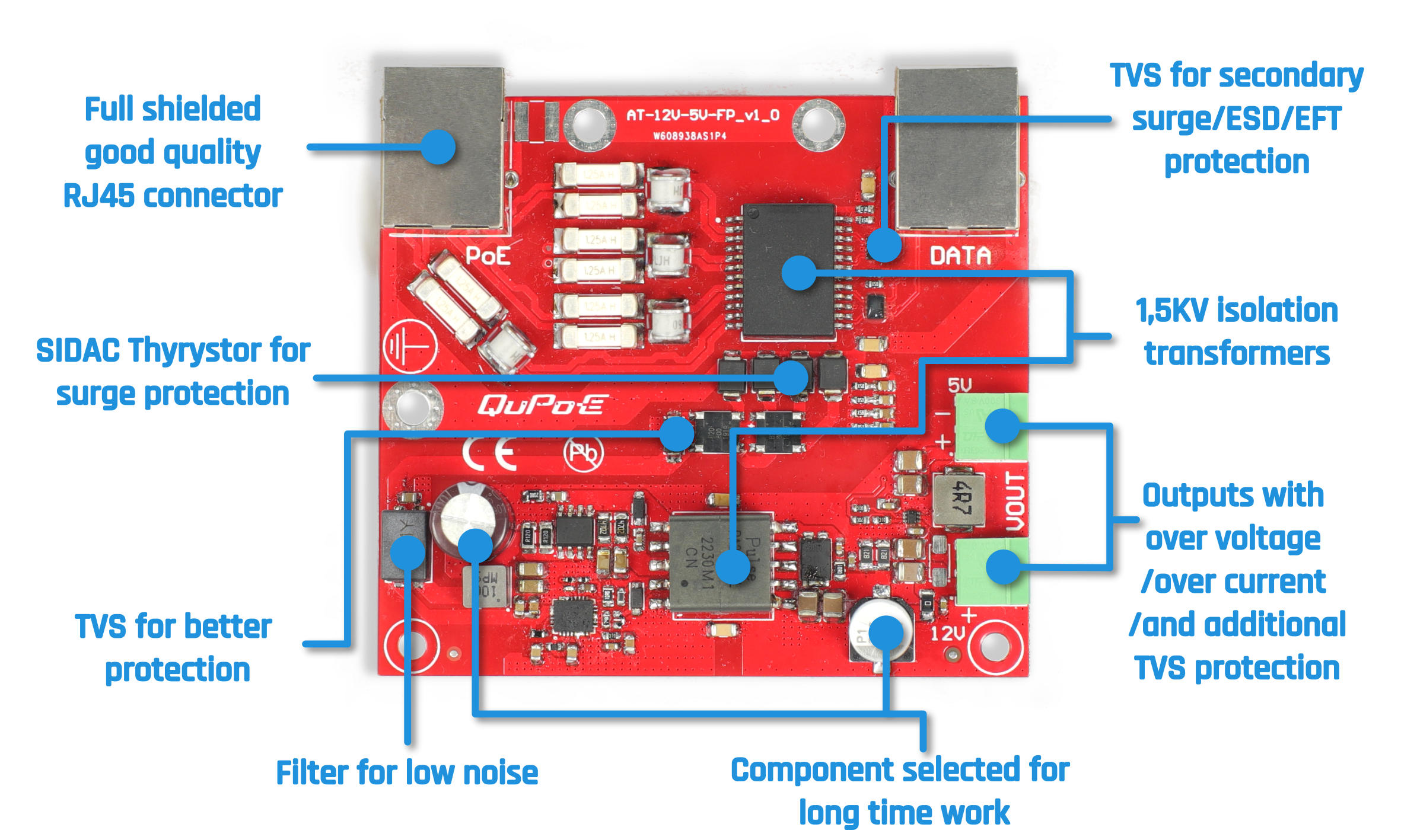

The GDT elements, SIDAC Thyristor, High power TVS Diode and TVS Diode Array provide protection against lightning and high surge. The device has overcurrent protection that complies with the GR-1089, ITU K20/21, EN60950-1 power fault requirements.
The device has 2 DC output 12VDC and 5VDC. Max power for 5V is 10W and max power for 12V is 25W - 5V power. Outputs have overcurrent/short protection with auto restart.
Based on high quality parts for working long life time.
Why QuPoE AT-12V-5V-FP - 802.3at Splitter & Lightning arrester
Gigabit Ethernet
Lightning/Surge/ESD protection
Made in Europe
SPECIFICATION
Safety Features
PORTS

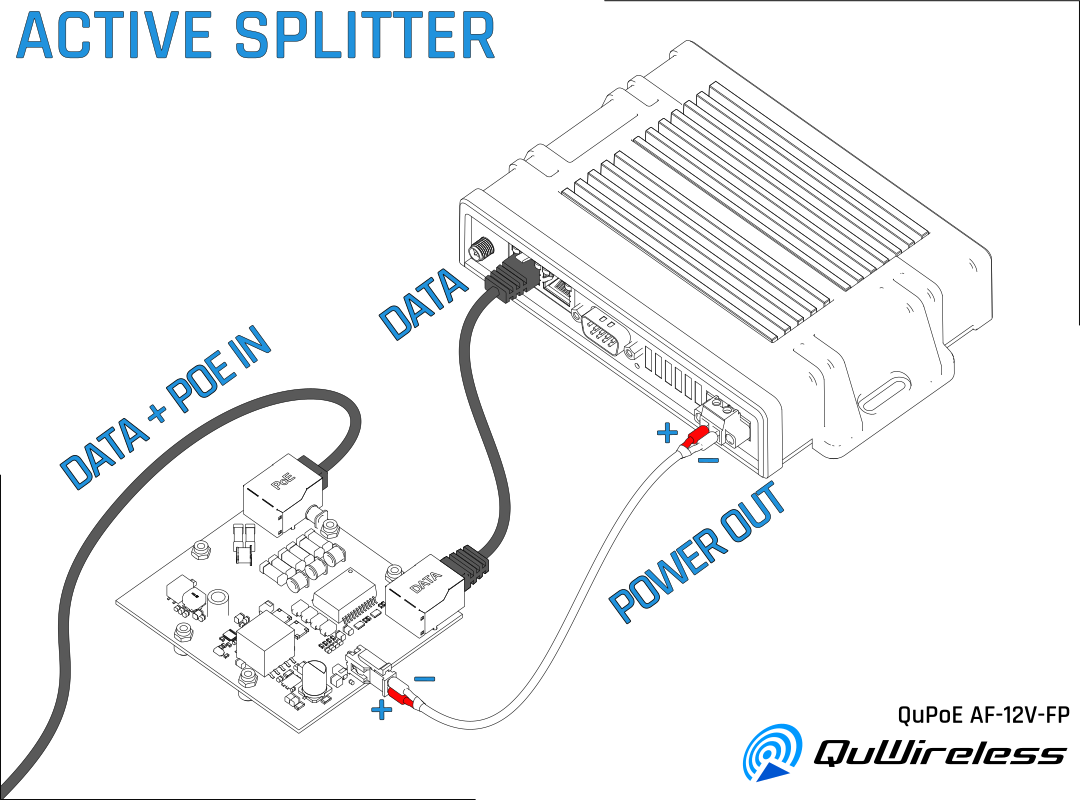

HOW TO CONNECT
.svg "Dimensions of QuPoE AT-12V-5V-FP - 802.3at Splitter & Lightning arrester")
