Antenna QuOmni LTE MIMO 4x4 Nf

P/n: AOLM4-N

Omnidirectional multiband LTE MIMO 4x4 antenna

QuOmni LTE omnidirectional MIMO 4x4 LTE outdoor antenna operates with vertical polarization and is designed for LTE/3G/2G connections. It supports various popular LTE bands (such as 3, 7, 20) across frequencies ranging from 694 MHz to 2700 MHz.

This versatile antenna can be mounted on either on pole or wall. It can be used as an outdoor client antenna, or it can be installed on mobile platforms like trains, buses, trucks, yachts, and boats to enable LTE/3G internet reception.

It is fully compatible with a range of Teltonika, Digi, Robustel as well as other MIMO 4x4 LTE/3G/2G modems and routers.

Why QuOmni LTE MIMO 4x4 Nf

Learn more about your profit

Outdoor antenna works in any weather conditions, IP68

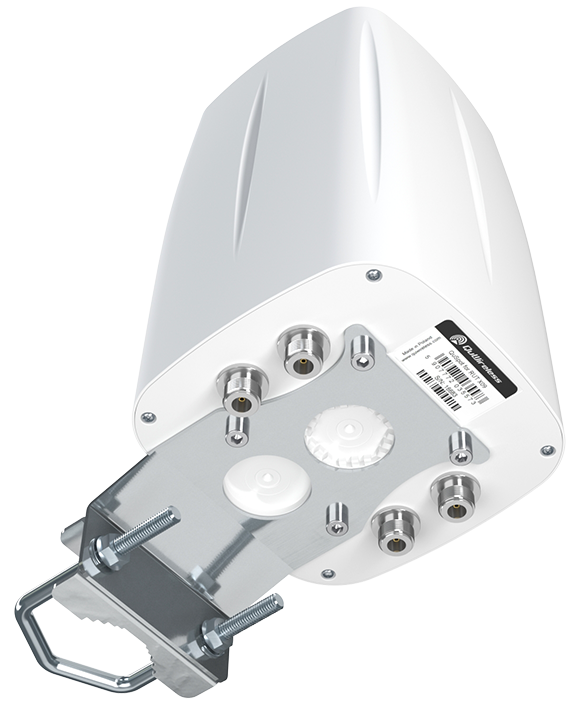

Galvanized steel, wall or pole mounting bracket

Four integrated Nf connectors

360° beamwidth

4dBi gain

Made in Europe

QuOmni LTE MIMO 4x4 Nf

SPECIFICATION

PRODUCT DETAILS

LTE ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS

Frequency

694 - 960 MHz

1.7 - 2.2 GHz

2.5 - 2.7 GHz

Gain

694 - 960 MHz : 2 dBi

1.7 - 2.2 GHz : 2 dBi

2.5 - 2.7 GHz : 3 dBi

Supported LTE/5G bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 33, 34, 35, 36, 37, 38, 39, 44, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n95, n98, n100, n101, n256

VSWR

<1.50, max <2.50

Beamwidth

360°/25° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR

VSWR of QuOmni LTE MIMO 4x4 Nf

Gain

Gain of QuOmni LTE MIMO 4x4 Nf
From 700MHz to 900MHz
Elevation
Azimuth
From 1.71GHz to 2.17GHz
Elevation
Azimuth
From 2.5GHz to 2.7GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuOmni LTE MIMO 4x4 NfQuOmni LTE MIMO 4x4 Nf
QuOmni LTE MIMO 4x4 NfQuOmni LTE MIMO 4x4 Nf

WHAT'S IN THE BOX?

PRODUCT DETAILS

IN THE BOX

QuOmni LTE MIMO 4x4 Nf

Parts of QuOmni LTE MIMO 4x4 Nf
1 x
Parts of QuOmni LTE MIMO 4x4 Nf
1 x
Parts of QuOmni LTE MIMO 4x4 Nf
2 x M8
Parts of QuOmni LTE MIMO 4x4 Nf
1 x
Parts of QuOmni LTE MIMO 4x4 Nf
4 x M6 x 10
Parts of QuOmni LTE MIMO 4x4 Nf
4 x

Download

Datasheet QuOmni LTE MIMO 4x4 Nf
Download
3D MODEL
Download
Installation Guide
Download
IP67 Certificate
Download
IP68 Certificate
Download
IK08 Certificate
Download
