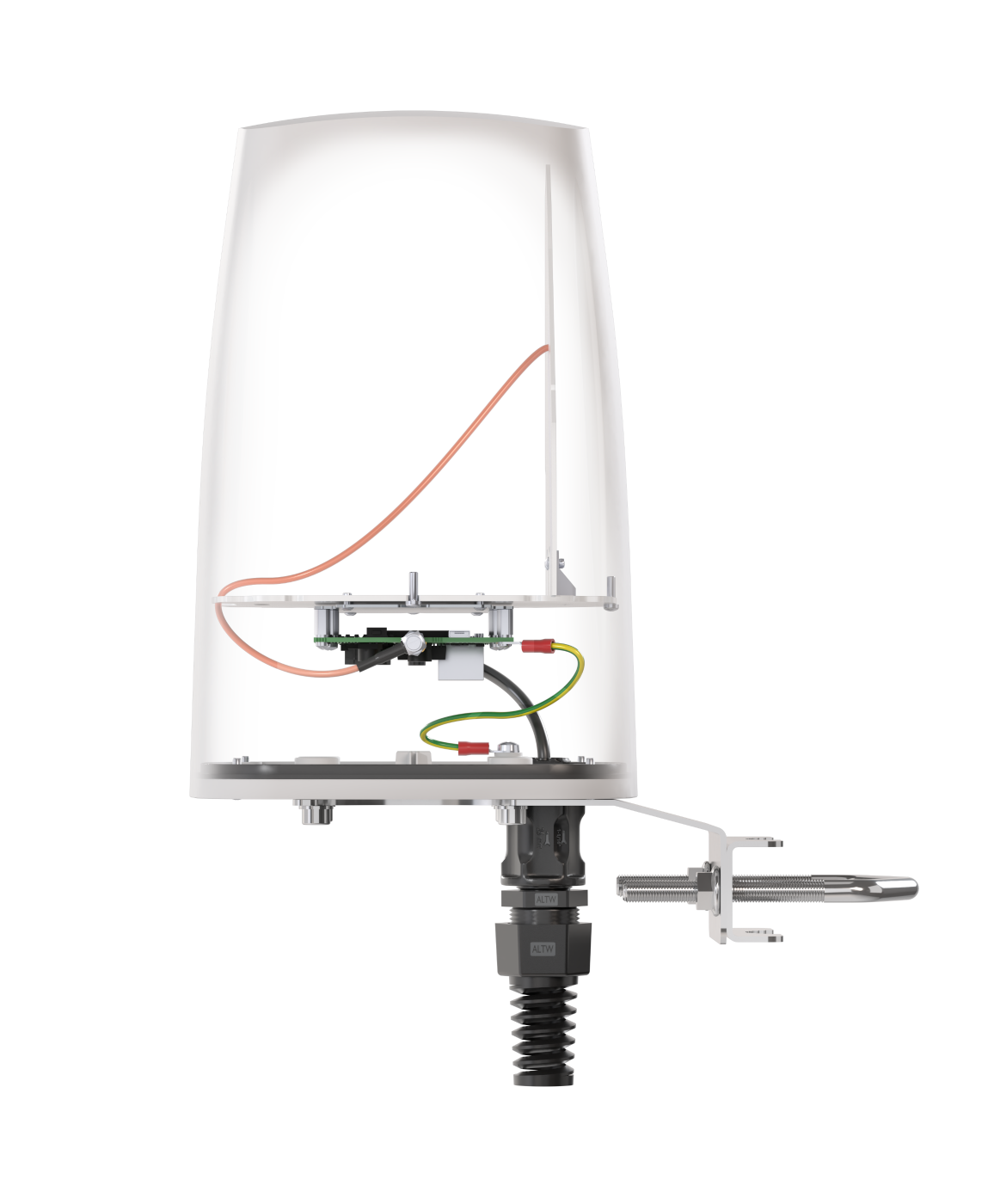

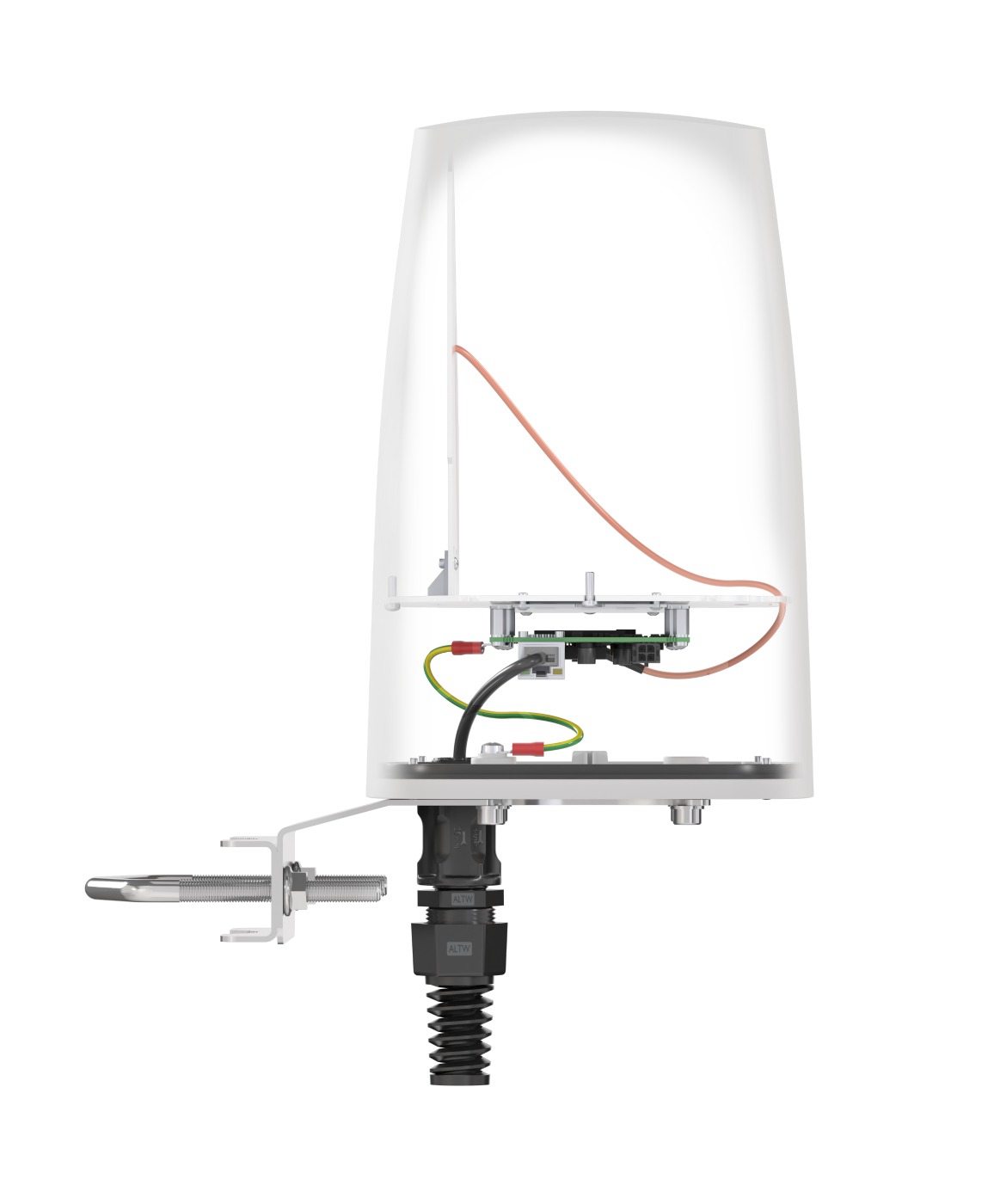

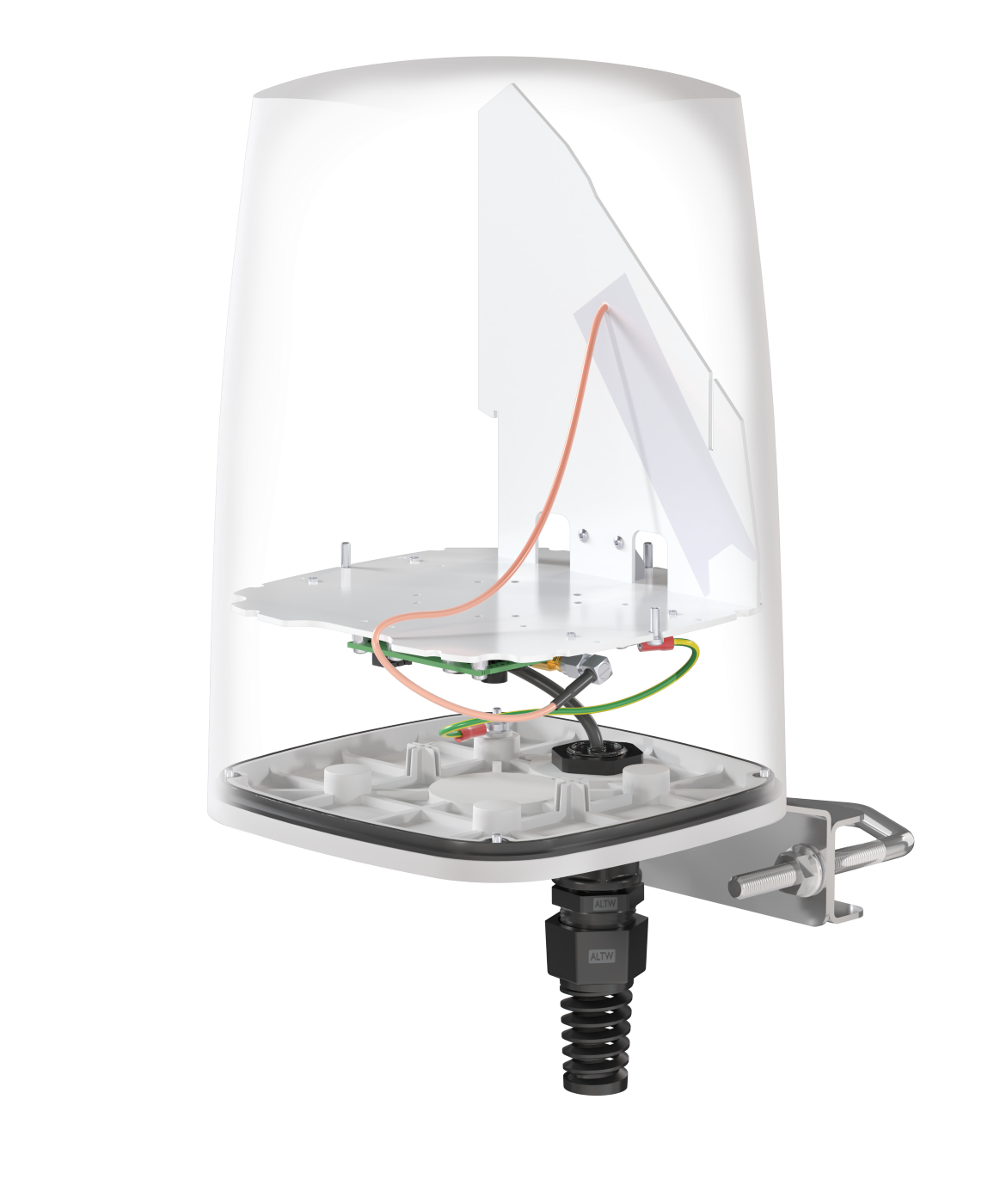

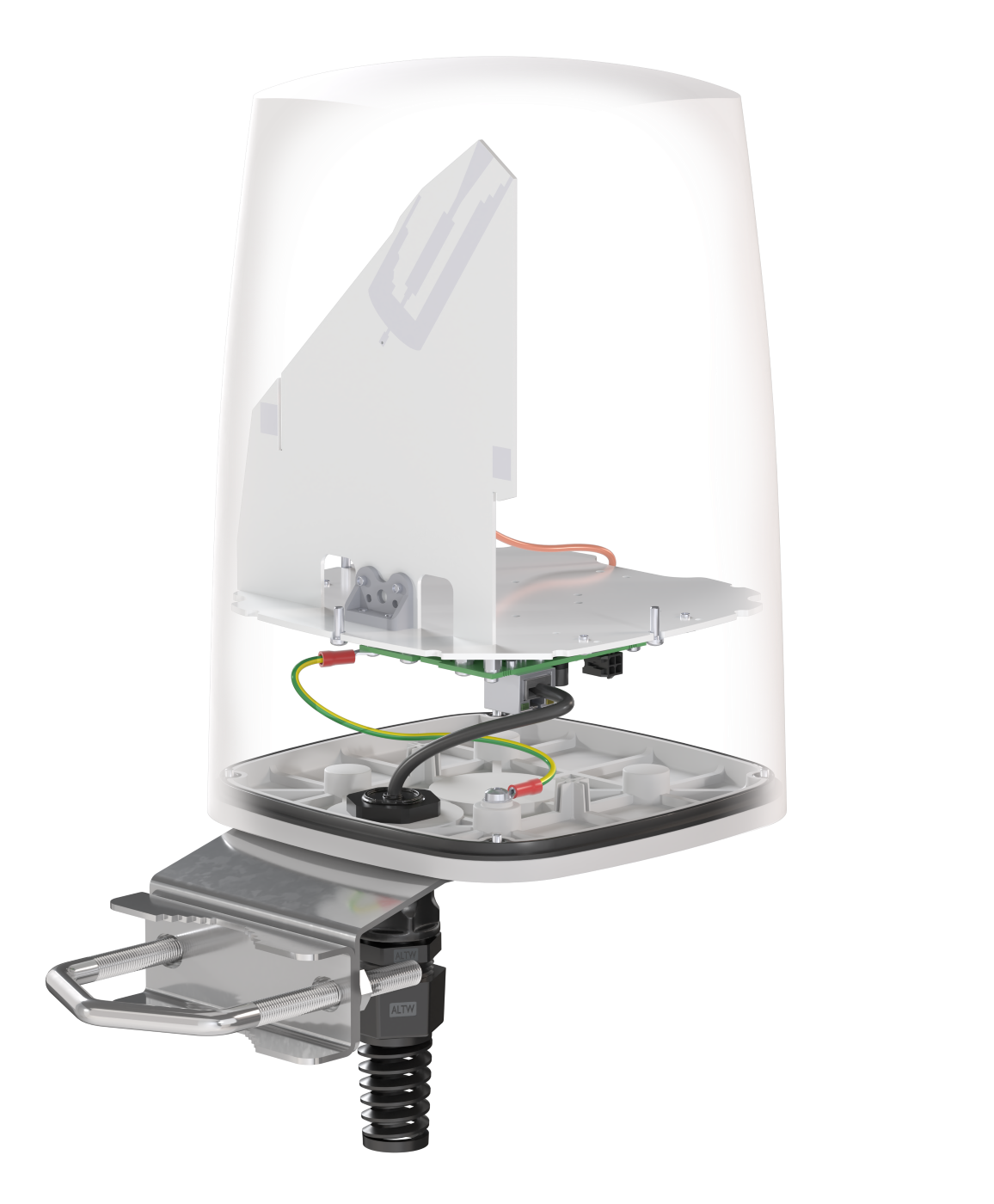

QuSpot for Teltonika TRB140
P/N: A140S
Integrated multi-band LTE omni antenna + place to install Teltonika TRB140 (All-in-one)
QuSpot omni LTE antenna for Teltonika TRB140 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. If you use TRB140 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
* TRB140 support passive Power over Ethernet from revision 4 (now Teltonika deliver TRB140 revision 7 or newer). If You have older version of TRB140 please inform us before place the order because it is necessary to replace RJ-45 power adapter for other version.
- All antennas and Teltonika router integrated in one enclosure
- Outdoor antenna works in any weather conditions, IP67
- Antenna perfectly matched with the router
- Passive PoE support
| LTE ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz |
| Supported LTE/5G bands | 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256 |
| Gain | 0.694 - 0.96 GHz : 2 dBi 1.7 - 2.2 GHz : 2 dBi 2.2 - 2.7 GHz : 4 dBi |
| VSWR | <1.60, max <2.00 |
| Beamwidth | 360°/35° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| MECHANICAL SPECIFICATION | |
|---|---|
| Materials | ABS, aluminum, PTFE |
| Connector type | RJ45 |
| Ingress protection | IP67 |
| Dimensions | 160 x 160 x 240 mm 6.3 x 6.3 x 9.45 inch |
| Weight | 1.5 kg 3.31 lbs |
| Operating temperature | From -40°C to 75°C From -40°F to 167°F |
| DEVICE SPECIFICATION (NOT INCLUDED) | |
|---|---|
 Small and quick to deploy industrial Ethernet to 4G LTE IoT gateway. Advanced VPN functionality, security and remote management capabilities makes TRB140 the best option for single device connectivity. | |
Frequency bands
LTE / 4G
GSM
GSM
617 MHz
5
8
12
13
14
17
18
19
20
26
27
28
29
44
67
68
85
103
n81
n82
n83
n89
n100
960 MHz
LTE / 4G
UMTS
UMTS
1710 MHz
1
2
3
4
9
10
25
33
34
35
36
37
39
n80
n84
n86
n95
n98
n101
2170 MHz
LTE / 4G
WCS
DARS
WCS
DARS
2300 MHz
30
40
n97
2400 MHz
LTE / 4G
2400 MHz
7
38
41
53
69
n90
2700 MHz
VSWR for LTE antenna
Gain
700-900 MHz Elevation
700-900 MHz Azimuth
1710-2170 MHz Elevation
1710-2170 MHz Azimuth
2300-2700 MHz Elevation
2300-2700 MHz Azimuth
