Antenna QuSpot for MikroTik RBM11G | LTE

P/n: AMT11LS

Integrated multi-band LTE omni antenna + place to install MikroTik RBM11G (All-in-one)

QuSpot omnidirectional LTE 2x2 MIMO antenna for MikroTik RBM11G is a perfect outdoor device for mobile and fixed installations like CCTV, hotspots, industrial areas, campervans, ships etc. The set contains IP67 ABS enclosure, LTE antennas, RJ45 (Ethernet) port and mast/pole/wall mounting bracket.

If you use RBM11G with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Why QuSpot for MikroTik RBM11G | LTE

Learn more about your profit

Outdoor antenna works in any weather conditions, IP68

Antenna perfectly matched with the router

Wall or mast mounting system

Made in Europe

QuSpot for MikroTik RBM11G | LTE

SPECIFICATION

PRODUCT DETAILS

LTE ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS

Frequency

694 - 960 MHz

1.7 - 2.2 GHz

2.2 - 2.7 GHz

Supported LTE/5G bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256

Gain

694 - 960 MHz : 2 dBi

1.7 - 2.2 GHz : 2 dBi

2.2 - 2.7 GHz : 4 dBi

VSWR

<1.60, max <2.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for LTE antenna

VSWR for LTE antenna of QuSpot for MikroTik RBM11G | LTE

Gain for LTE antenna

Gain for LTE antenna of QuSpot for MikroTik RBM11G | LTE
LTE from 700MHz to 900MHz
Elevation
Azimuth
LTE from 1.71GHz to 2.17GHz
Elevation
Azimuth
LTE from 2.3GHz to 2.7GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuSpot for MikroTik RBM11G | LTEQuSpot for MikroTik RBM11G | LTE
QuSpot for MikroTik RBM11G | LTEQuSpot for MikroTik RBM11G | LTE

WHAT'S IN THE BOX?

PRODUCT DETAILS

IN THE BOX

QuSpot for MikroTik RBM11G

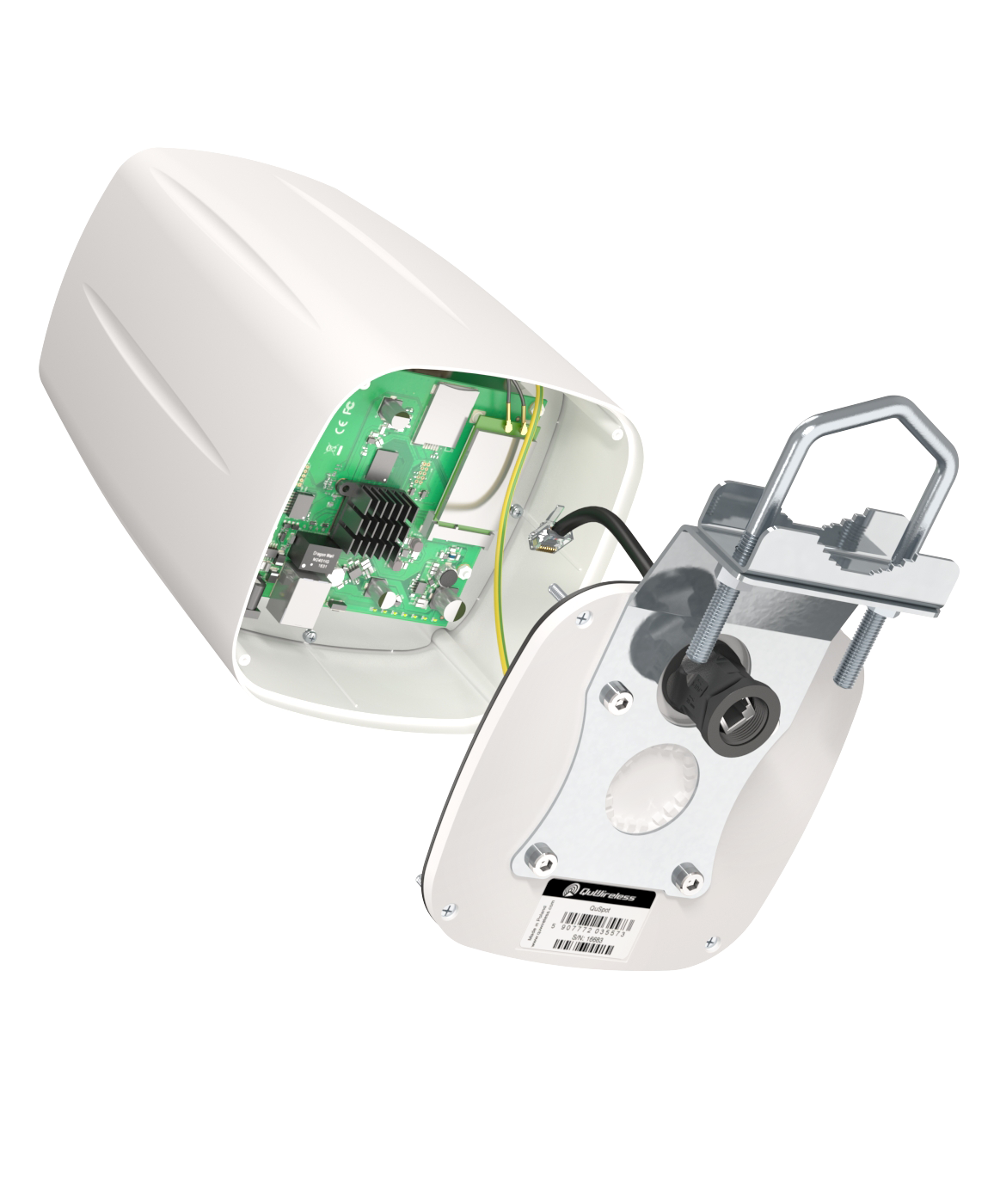

Parts of QuSpot for MikroTik RBM11G | LTE
1x With mounting for MikroTik RBM11G
Parts of QuSpot for MikroTik RBM11G | LTE
1x 8mm wrench
Parts of QuSpot for MikroTik RBM11G | LTE
x4 3,1 x 12
Parts of QuSpot for MikroTik RBM11G | LTE
4x M6 x 10
Parts of QuSpot for MikroTik RBM11G | LTE
4x
Parts of QuSpot for MikroTik RBM11G | LTE
1x
Parts of QuSpot for MikroTik RBM11G | LTE
2x M8
Parts of QuSpot for MikroTik RBM11G | LTE
1x
Parts of QuSpot for MikroTik RBM11G | LTE
1x QuRJ45

Download

Datasheet QuSpot for MikroTik RBM11G | LTE
Download
3D MODEL
Download
IP67 Certificate
Download
IP68 Certificate
Download
IK08 Certificate
Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA
Use case QuSpot for MikroTik RBM11G | LTE
Use case QuSpot for MikroTik RBM11G | LTE
Use case QuSpot for MikroTik RBM11G | LTE
