Antenna QuShell 22G

P/n: ASL22G

QuShell 5G/LTE 2x2MIMO, 2x2 MIMO WiFi 6e is a high performance mobility antenna providing performance connectivity across diverse frequencies and applications for 5G/4G/LTE.

QuShell 5G/LTE 2x2MIMO, 2x2 MIMO WiFi 6e is a high performance mobility antenna providing performance connectivity across diverse frequencies and applications for 5G/4G/LTE. It offers optional GPS/GNSS and up to 2x2 MIMO/Diversity configurations at 2.4/5.0/7.2GHz for Wi-Fi. The optional high-performance GPS/GNSS antenna features an integrated 18dB gain LNA.

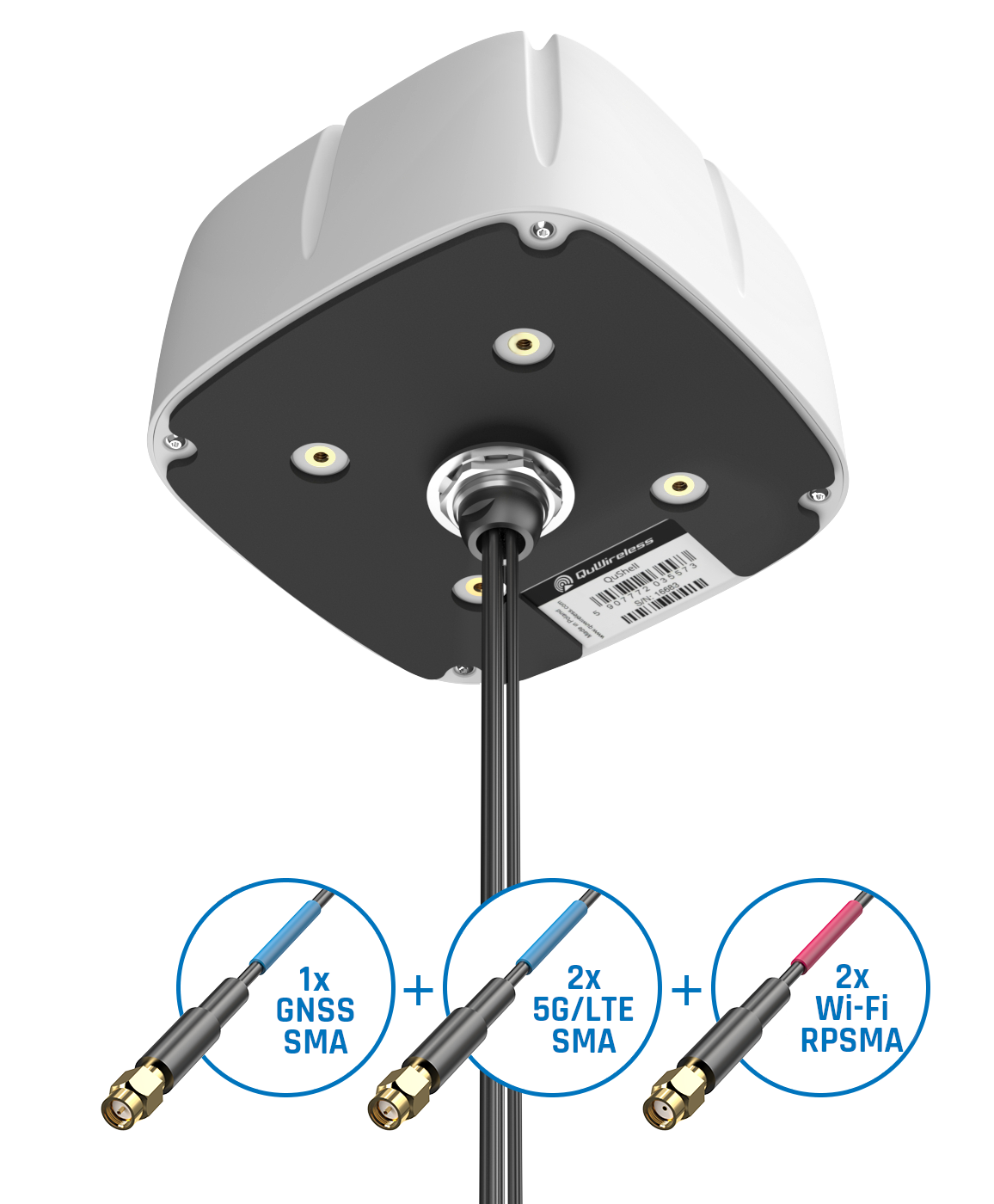

It comes with 2x 5G/LTE, 1x GPS/GNSS and 2x Wi-Fi antennas.

It covers a wide range from 617 to 6000 MHz for 5G/LTE bands and additionally dual-band Wi-Fi 6e antennas provide concurrent 2.4 GHz and 5 to 7.2 GHz.

The QuShell 5G/LTE finds its place in public sector industry (busses, firetrucks, ambulances), marine environments, tourism and various IoT systems.

The set consists of marine, surface and pole/wall mounting brackets allowing to install QuShell on a roof, mast, pole, wall or other flat surfaces.

Standard cable length is 50cm. For other variants please contact your local reseller or account manager.



Why QuShell 22G

Learn more about your profit

50cm cables

Outdoor antenna works in any weather conditions, IP67

2x 5G/LTE, 1x GPS/GNSS and 2x Wi-Fi antennas

Antenna perfect for mobility uses

Made in Europe

QuShell 22G

SPECIFICATION

PRODUCT DETAILS

Wi-Fi SPECIFICATION

5G/LTE SPECIFICATION

MECHANICAL SPECIFICATION

MOUNTING KIT

COMPATIBLE ROUTERS

Frequency

2.4 - 2.5 GHz

5 - 7.2 GHz

Gain

2.4 - 2.5 GHz: 2dBi

5 - 7.2 GHz: 5dBi

VSWR

< 2.50

Beamwidth

360°/25°

Polarization

Vertical

Impedance

50 Ω

Max Input Power

50W

DC Ground

Yes

PLOTS

PRODUCT DETAILS

5G/LTE VSWR

5G/LTE VSWR of QuShell 22G

5G/LTE GAIN

5G/LTE GAIN of QuShell 22G

WiFi - V VSWR

WiFi - V VSWR of QuShell 22G

WiFi - V GAIN

WiFi - V GAIN of QuShell 22G
5G/LTE from 617MHz to 960MHz
Elevation
Azimuth
5G/LTE from 1.71GHz to 2.7GHz
Elevation
Azimuth
5G/LTE from 3.3GHz to 4.2GHz
Elevation
Azimuth
5G/LTE from 4.8GHz to 5.8GHz
Elevation
Azimuth
Wi-Fi V From 2.4 GHz to 6.5 GHz
Elevation
Azimuth
