Antenna QuSector S24-19HV-20-2
To check PN please select variant below

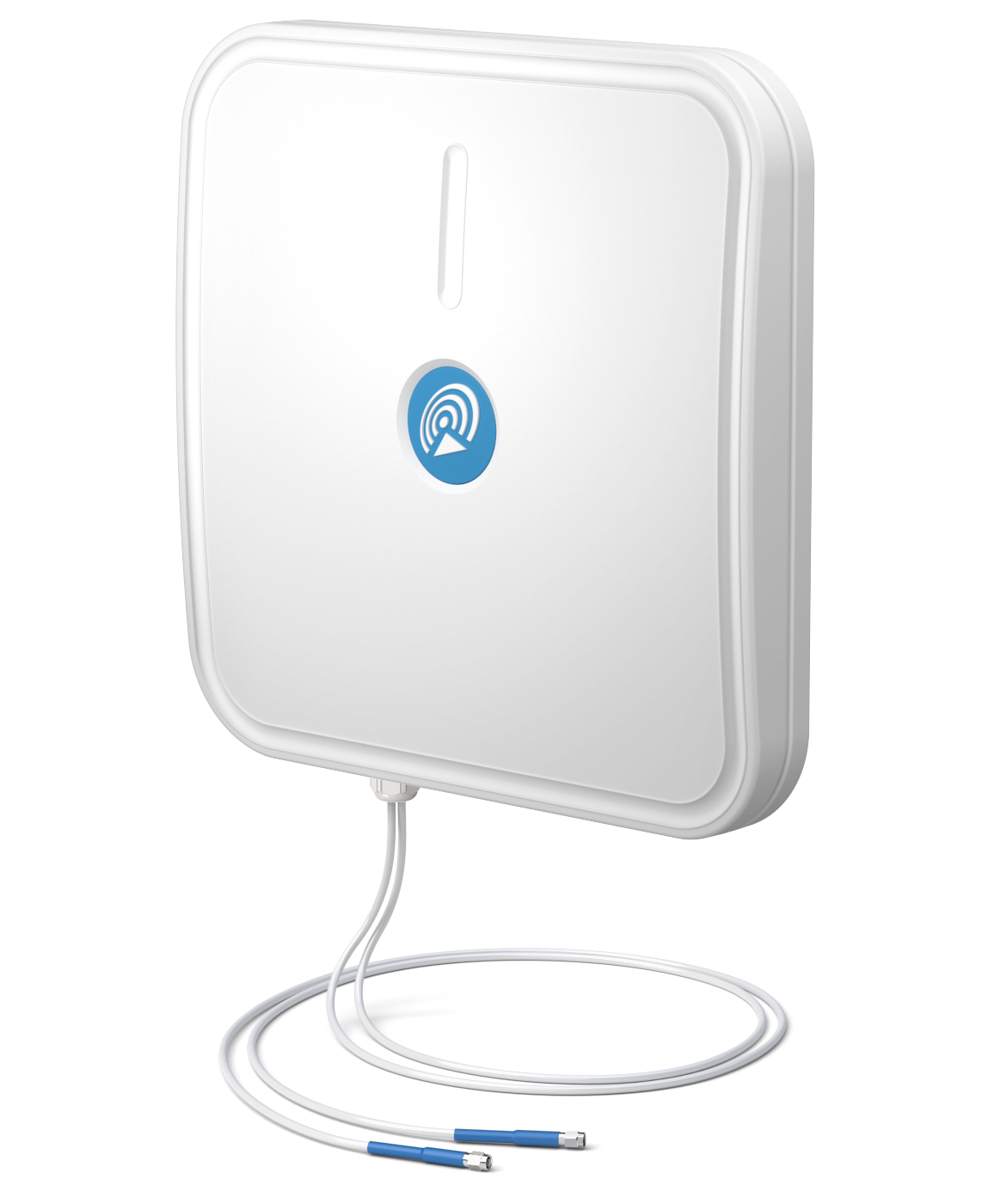

QuSector S24-19HV-20-2 offers a 90 degrees, 19dBi gain signal with two 2.4GHz connectors. It is a perfect indoor and outdoor device for industrial installations.
QuSector S24-19HV-20-2 is a single band, H&V polarity, MIMO 2x2 panel antenna. Two connectors operate at 2.4GHz with 19dBi gain. Due to its medium gain, it can be used on short or medium distances, for example for hotspots in schools, stadiums, offices or public places. High quality injection moulded enclosure allows to implement it alongside with indoor and IP67 outdoor solutions. The antenna comes in with 2*70cm (28inch) cables terminated with Nm, RPSMA, RPTNC connectors. QuSector 9S24-19HV-20-2 was designed to be a perfect match for your access point.
Variants:
Why QuSector S24-19HV-20-2
Outdoor antenna works in any weather conditions, IP67
Antenna perfectly matched with the router
Wall or mast mounting system with two planes, 60 degrees regulation
Made in Europe
SPECIFICATION
PLOTS
PORT 1 Elevation
PORT 1 Azimuth
PORT 2 Elevation
PORT 2 Azimuth
DIMENSIONS
.png "Dimensions of QuSector S24-19HV-20-2")
.png "Dimensions of QuSector S24-19HV-20-2")
