Antenna QuSector 9HV-65-2 Wi-Fi 6E
To check PN please select variant below
QuSector 9HV-65-2 Wi-Fi 6E offers a 65 degrees, 8dBi (2.4GHz) & 9dBi (5GHz-7GHz) gain signal. It is a perfect indoor and outdoor device for industrial installations.

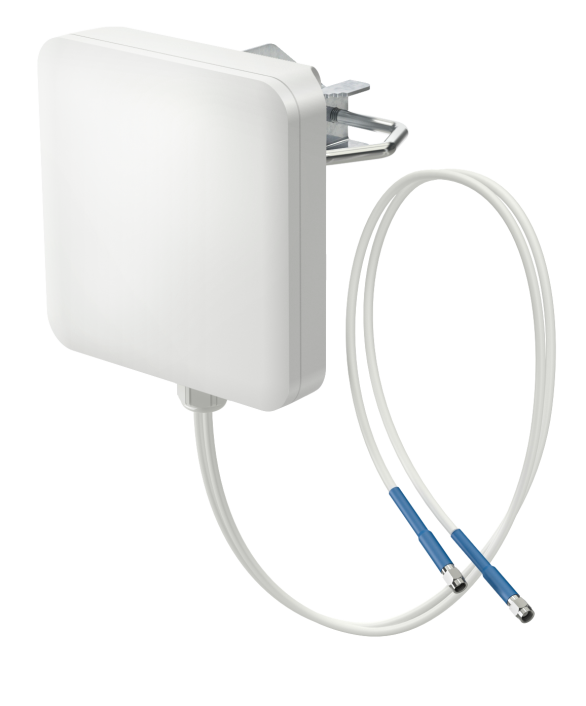

QuSector 9HV-65-2 is a concurrent dual band, H&V polarity, MIMO 2x2 panel antenna. It simultaneously operates at 2.4GHz with 8dBi gain and at 5GHz-7GHz with 9dBi gain. Due to its medium gain, it can be used on short or medium distances, for example for hotspots in schools, stadiums, offices or public places. It is a futureproof solution with Wi-Fi 6E and Wi-Fi 7 support. High quality injection moulded enclosure allows to implement it alongside with indoor and IP67 outdoor solutions. Wide frequency range (2.4-2.5GHz & 5-7.125GHz) helps to find suitable frequency for the most effective operation. It is designed to be applied mainly to special access points working in the systems where two bands (frequencies) are diplexed for one antenna connector The antenna comes with 2*70cm (28inch) cables terminated with Nm, RPSMA, RPTNC connectors. QuSector 9HV-65-2 was designed to be a perfect match for your access point.
Variants:
WHY QUSECTOR 9HV-65-2 Wi-Fi 6E
Adjustable, pole mounting system
Outdoor antenna works in any weather conditions, IP67
Made in Europe
SPECIFICATION
PLOTS
VSWR
.svg "VSWR of QuSector 9HV-65-2 Wi-Fi 6E")
Gain
.svg "Gain of QuSector 9HV-65-2 Wi-Fi 6E")
PORT 1 Elevation
PORT 1 Azimuth
PORT 1 Elevation
PORT 1 Azimuth
PORT 2 Elevation
PORT 2 Azimuth
PORT 2 Elevation
PORT 2 Azimuth
DIMENSIONS
