Antenna QuSector 15V-35-5 Wi-Fi 6E
To check PN please select variant below
QuSector 15V-35-5 offers a 35 degrees, 11dBi (2.4GHz) & 15dBi (5+7GHz) signal gain. It is a perfect indoor and outdoor device for industrial installations.

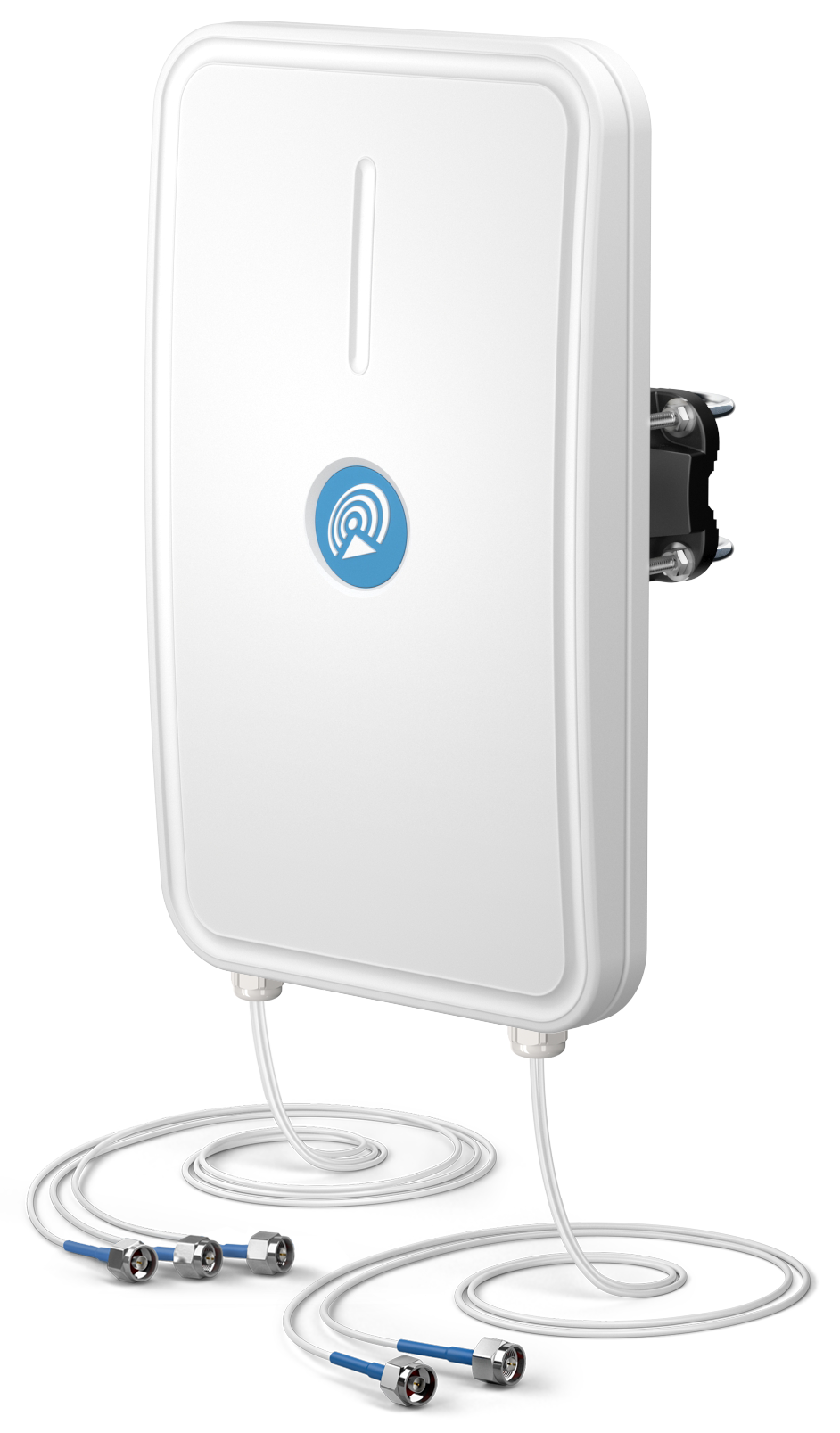

QuSector 15V-35-5 Wi-Fi 6E is a concurrent triple band, Vertical polarity, panel antenna. It operates at 2.4GHz with 11dBi gain and at 5GHz+7GHz with 15dBi gain. Its main purpose is to build small cells in high-density environments such as stadiums, lecture halls and concert halls. High quality injection moulded enclosure allows to implement it alongside with indoor and IP67 outdoor solutions. Wide frequency range (2.4-2.5GHz & 5.0-7.125GHz) helps to find suitable frequency for the most effective operation. The antenna comes with 5*70cm (28inch) cables terminated with RPSMA, RPTNC or Nm connectors.
Variants:
WHY QUSECTOR 15V-35-5 Wi-Fi 6E
Antenna perfectly matched with the router
Outdoor antenna works in any weather conditions, IP67
Wall or mast mounting system with two planes, 60 degrees regulation
Made in Europe
SPECIFICATION
PLOTS
VSWR
Gain
Elevation
Azimuth
Elevation
Azimuth
DIMENSIONS
.png "Dimensions of QuSector 15V-35-5 Wi-Fi 6E")
.png "Dimensions of QuSector 15V-35-5 Wi-Fi 6E")
