Antenna QuSector 14HV-90-4 Wi-Fi 6E
To check PN please select variant below
QuSector 14HV-90-4 offers a 90 degrees, 14dBi gain signal with two RP-SMA 2.4GHz and 5GHz+7GHz connectors. It is a perfect indoor and outdoor device for industrial installations.

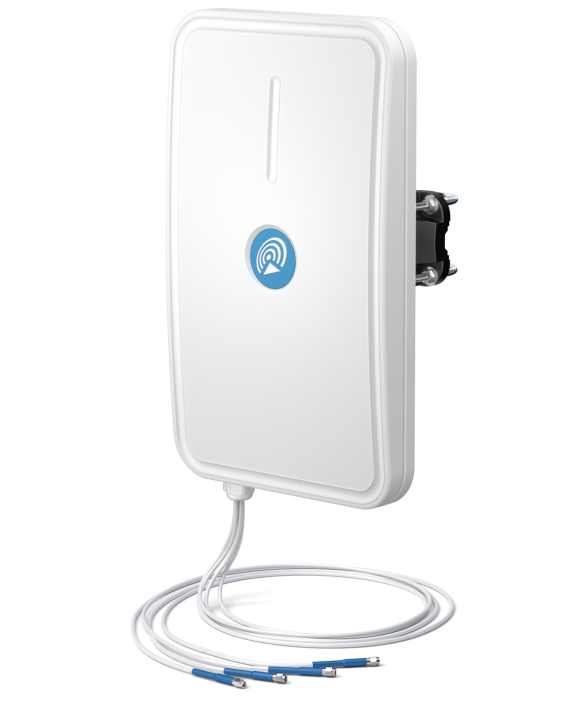

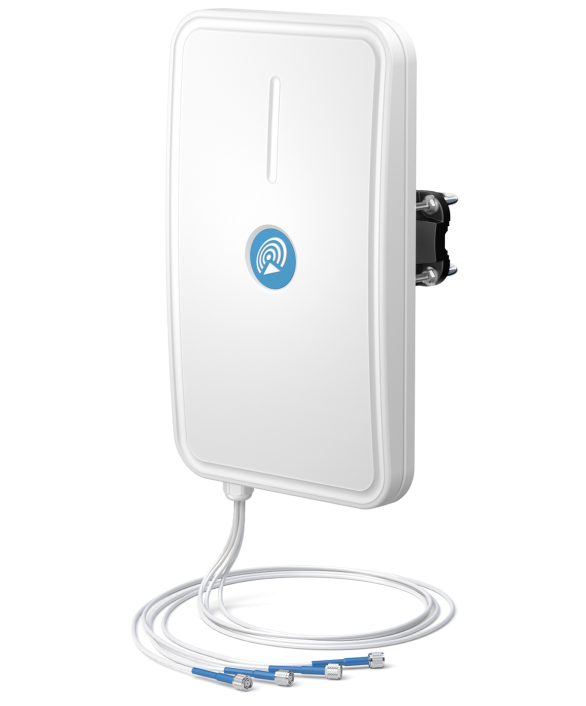

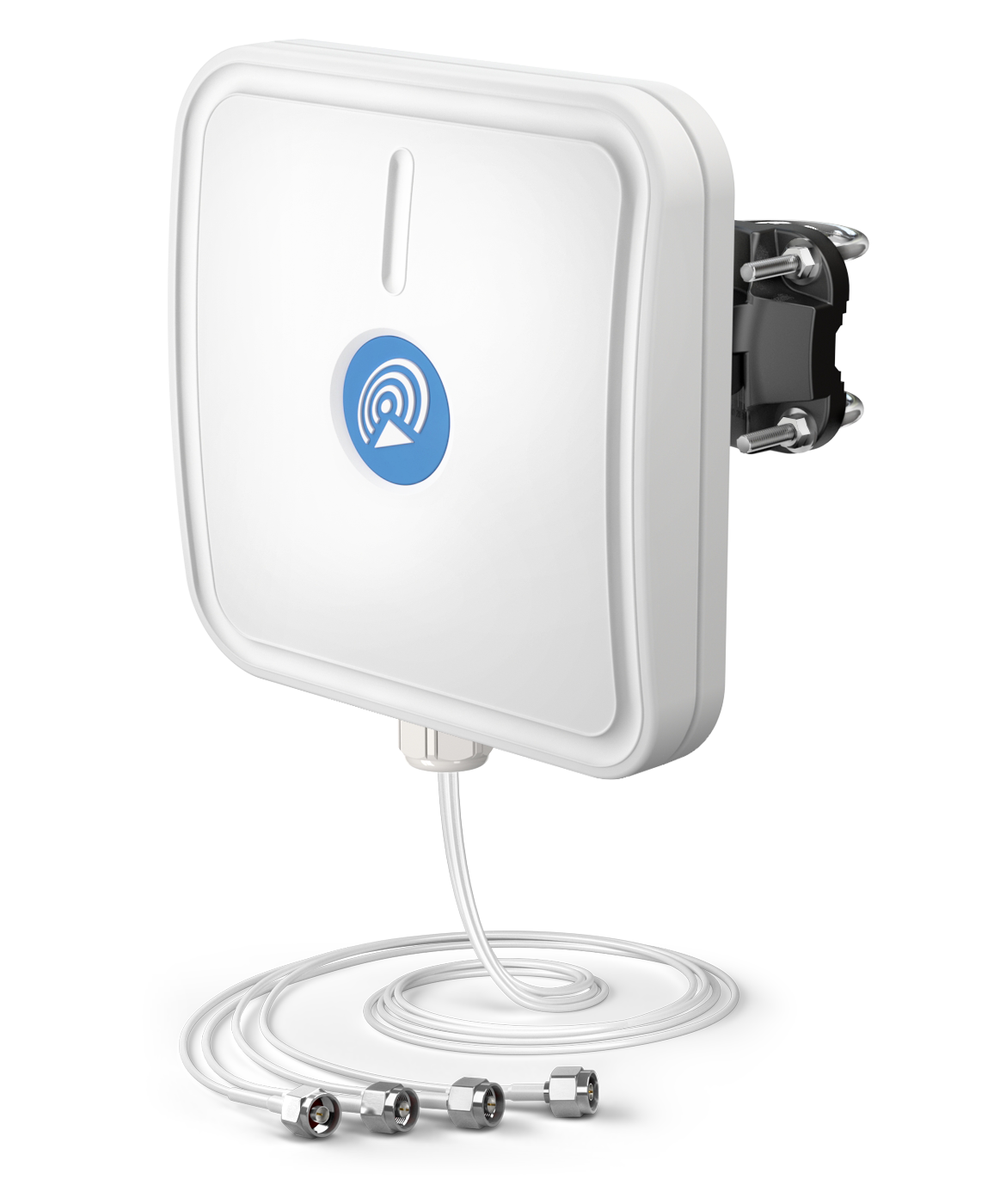

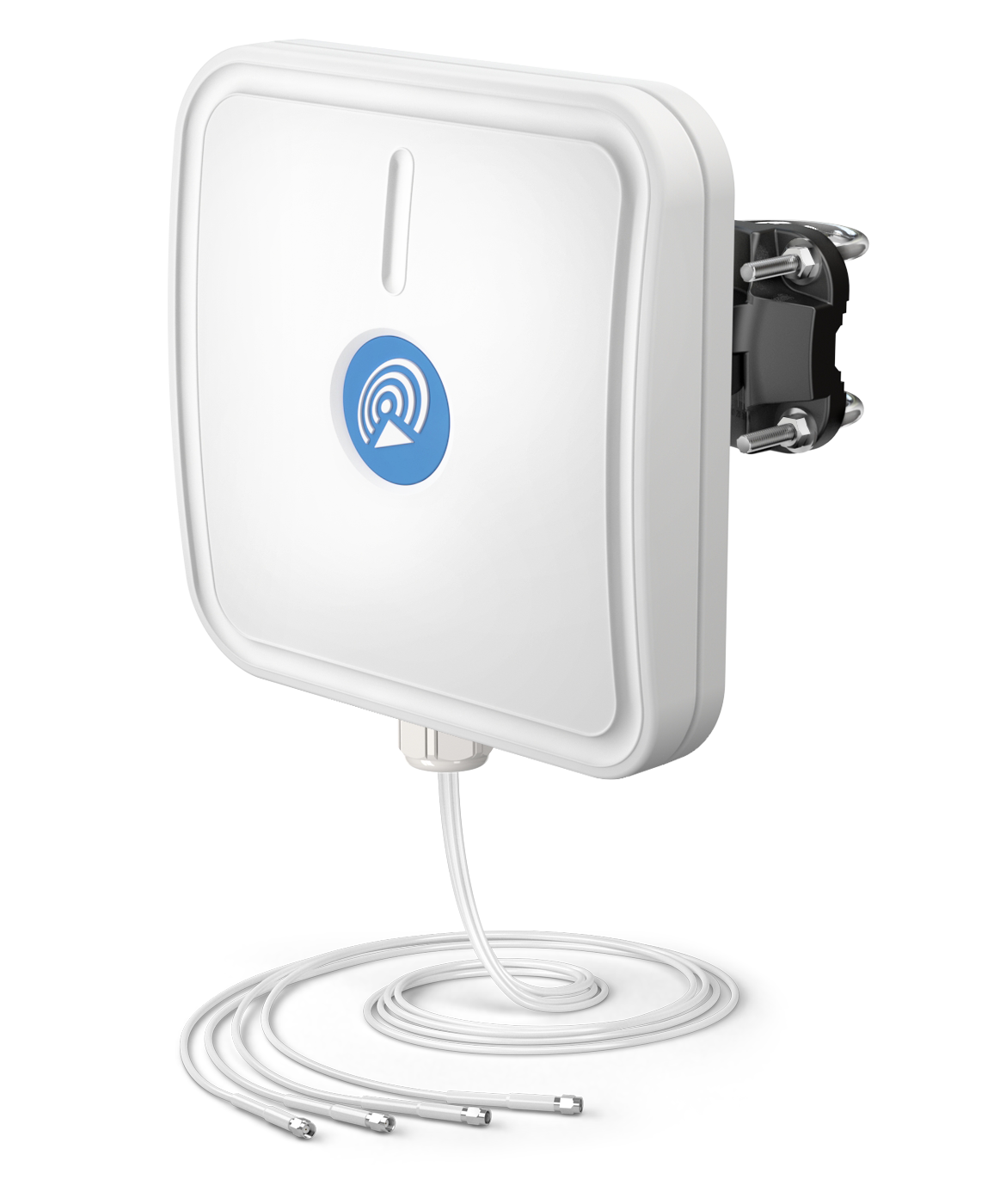

QuSector 14HV-90-4 is a concurrent, dual-band, H&V polarity, MIMO 4x4 panel antenna. It simultaneously operates at 2.4GHz with 12dBi gain and 5GHz + 7GHz with 14dBi gain. It is a futureproof solution with Wi-Fi 6E and Wi-Fi 7 support. Due to its medium gain, it can be used on short or medium distances, for example for hotspots in schools, stadiums, offices or public places. High quality injection moulded enclosure allows to implement it alongside with indoor and IP67 outdoor solutions. The antenna comes in three configurations: with 4*70cm (28inch) cables terminated with Nm, RPSMA or RPTNC connectors. QuSector 14HV-90-4 was designed to be a perfect match for your access point.
Variants:
WHY QUSECTOR 14HV-90-4 Wi-Fi 6E
Outdoor antenna works in any weather conditions, IP67
Antenna perfectly matched with the router
Wall or mast mounting system with two planes, 60 degrees regulation
Made in Europe
SPECIFICATION
PLOTS
Gain
.svg "Gain of QuSector 14HV-90-4 Wi-Fi 6E")
VSWR
.svg "VSWR of QuSector 14HV-90-4 Wi-Fi 6E")
Elevation
Azimuth
Elevation
Azimuth
Elevation
Azimuth
Elevation
Azimuth
DIMENSIONS
