PoE (Power over Ethernet) is a technology that allows electrical power to be carried inside network cables. As it transports data and power in one Ethernet cable, no extra wiring is needed to provide power.

2. What is the QuPoE Switch used for?

It is used to power Teltonika router and up to 4 CCTV cameras with PoE. It is also equipped with 2 power inputs. The source with higher voltage is the one which supplies power to the device. The other works as a backup power supply.

Registered jack (RJ) - is a standardized telecommunication network interface for connecting voice and data equipment to a service provided. RJ45 is a twisted-pair type of cable destined to send dinformation between two devices.

Porównaj

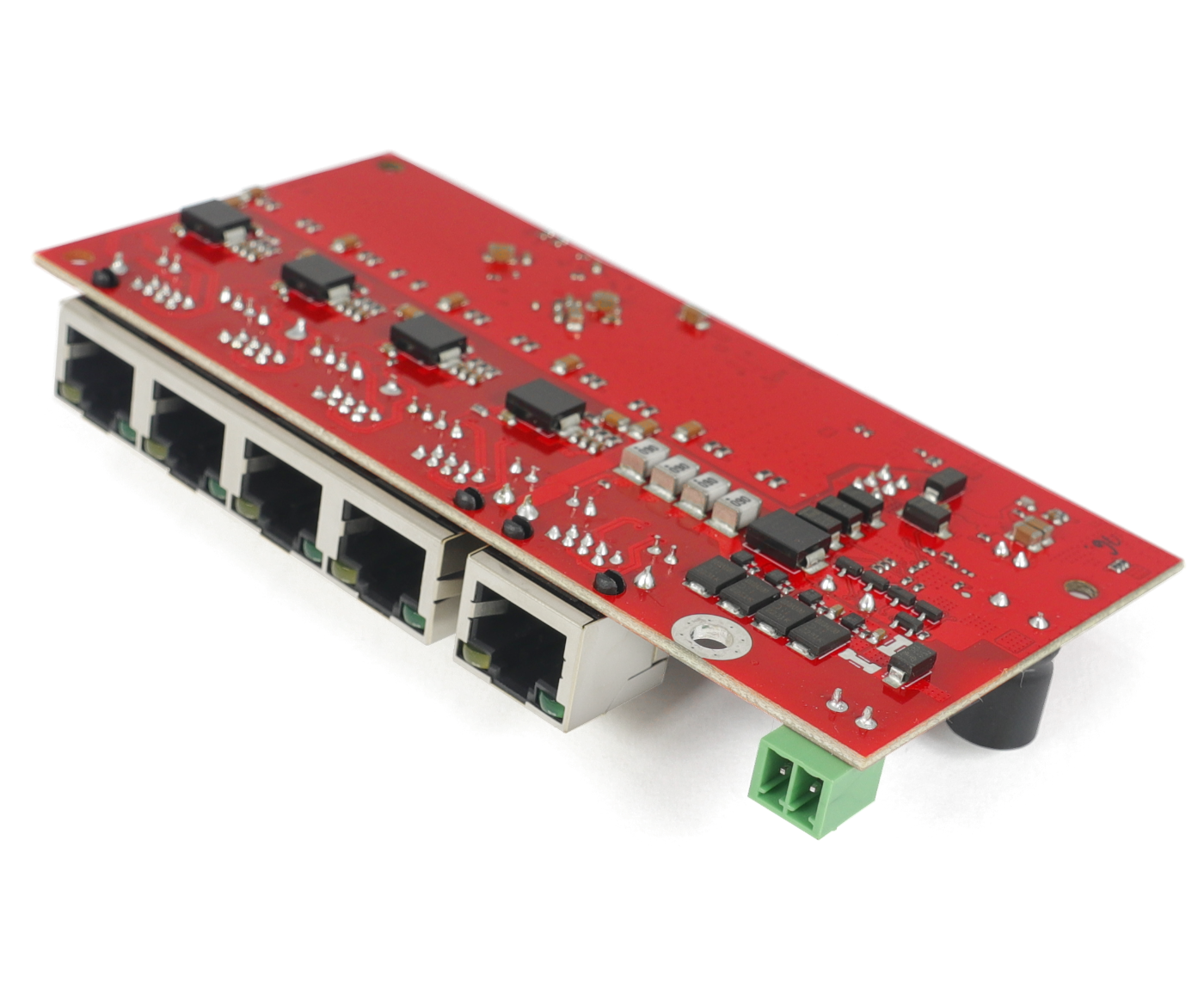

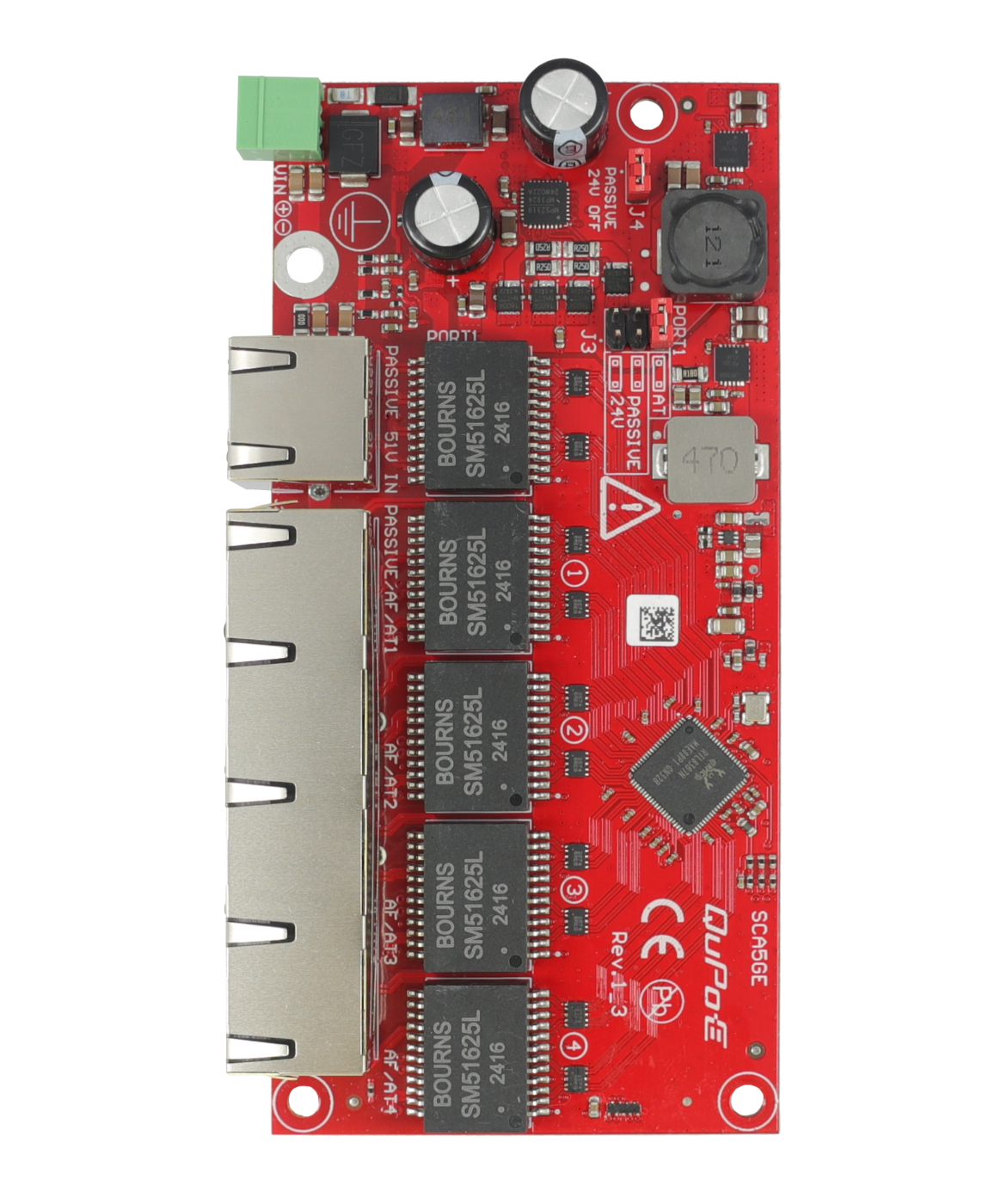

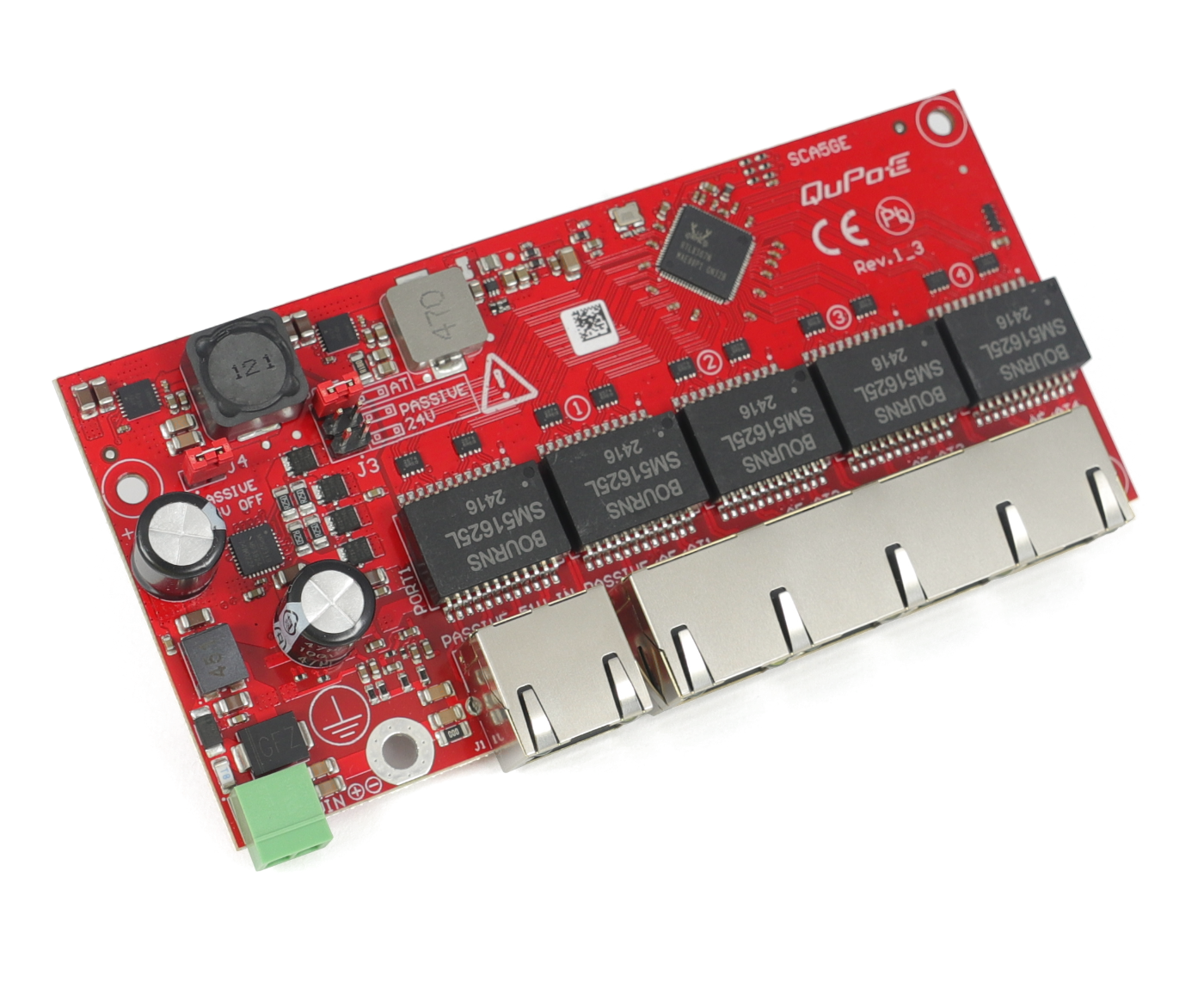

QuPoE Gigabit Switch SCA5GE

P/N: SCA5GE

QuPOE SCA5GE - POE Switch provides PoE and data output protection. It is compliant with the IEEE802.3 AT standard. The device is ideal for outdoor applications and powering gateway devices, routers, etc.

QuPOE SCA5GE - 5 port - active switch that provides PoE and data output protection. It is compliant with the IEEE802.3AT standard. The device is ideal for outdoor applications and powering gateway devices, routers, etc.

Switch can work in temperature range of -40...+70C. The device has lightning (INPUT Passive PoE port), surge, ESD, EFT and power protection and is ideal for outdoor applications and powering gateway devices, routers, etc.

QuPoE switch can be powered by DC input 48-58V 3A or 48-58V 3A Passive PoE Input.

The GDT elements on INPUT Passive PoE port, TVS Diode and TVS Diode Array provide protection against lightning and surge.

Based on high quality parts for working long life time.
