QuPoE PAS-FP - Passive PoE Splitter & Lightning arresterQuPoE PAS-FP - Passive PoE Splitter & Lightning arrester
QuPoE PAS-FP - Passive PoE Splitter & Lightning arresterQuPoE PAS-FP - Passive PoE Splitter & Lightning arrester
QuPoE PAS-FP - Passive PoE Splitter & Lightning arresterQuPoE PAS-FP - Passive PoE Splitter & Lightning arrester
QuPoE PAS-FP - Passive PoE Splitter & Lightning arresterQuPoE PAS-FP - Passive PoE Splitter & Lightning arrester

QuPoE PAS-FP - Passive PoE Splitter & Lightning arrester

PAS-FP

QuPoE PAS-FP - passive splitter that provides full PoE and data output protection. It is compliant with the IEEE802.3 standard. The device is ideal for outdoor applications and powering gateway devices, routers, etc.

QuPoE PAS-FP splitter provides full PoE and data output protection. It has a temperature range of -40…+80C and is compliant with the IEEE802.3 standard. The device has lightning, surge, ESD and EFT protection and is ideal for outdoor applications and powering gateway devices, routers, etc. The GDT elements, Hight power TVS Diode and TVS Diode Array provide protection against lightning and high surge. The device has overcurrent/short protection that complies with the GR-1089, ITU K20/21. The device has 1 DC input/output 24…58VDC overcurrent/short protection 1,5A.

Based on high-quality components ensuring long service life.


Why QuPoE PAS-FP - Passive PoE Splitter & Lightning arrester

Learn more about your profit

Gigabit Ethernet

Lightning/Surge/ESD protection

Made in Europe

QuPoE PAS-FP - Passive PoE Splitter & Lightning arrester

SPECIFICATION

PRODUCT DETAILS

POE SPECIFICATION

MECHANICAL SPECIFICATION

SURGE PROTECTION

IEEE STANDARD

IEEE 802.3ab 1000Base-T Gigabit Ethernet

POWER SUPPLY

up to 58VDC overcurrent/short protection 1.5A

POE IN

Mode type: B

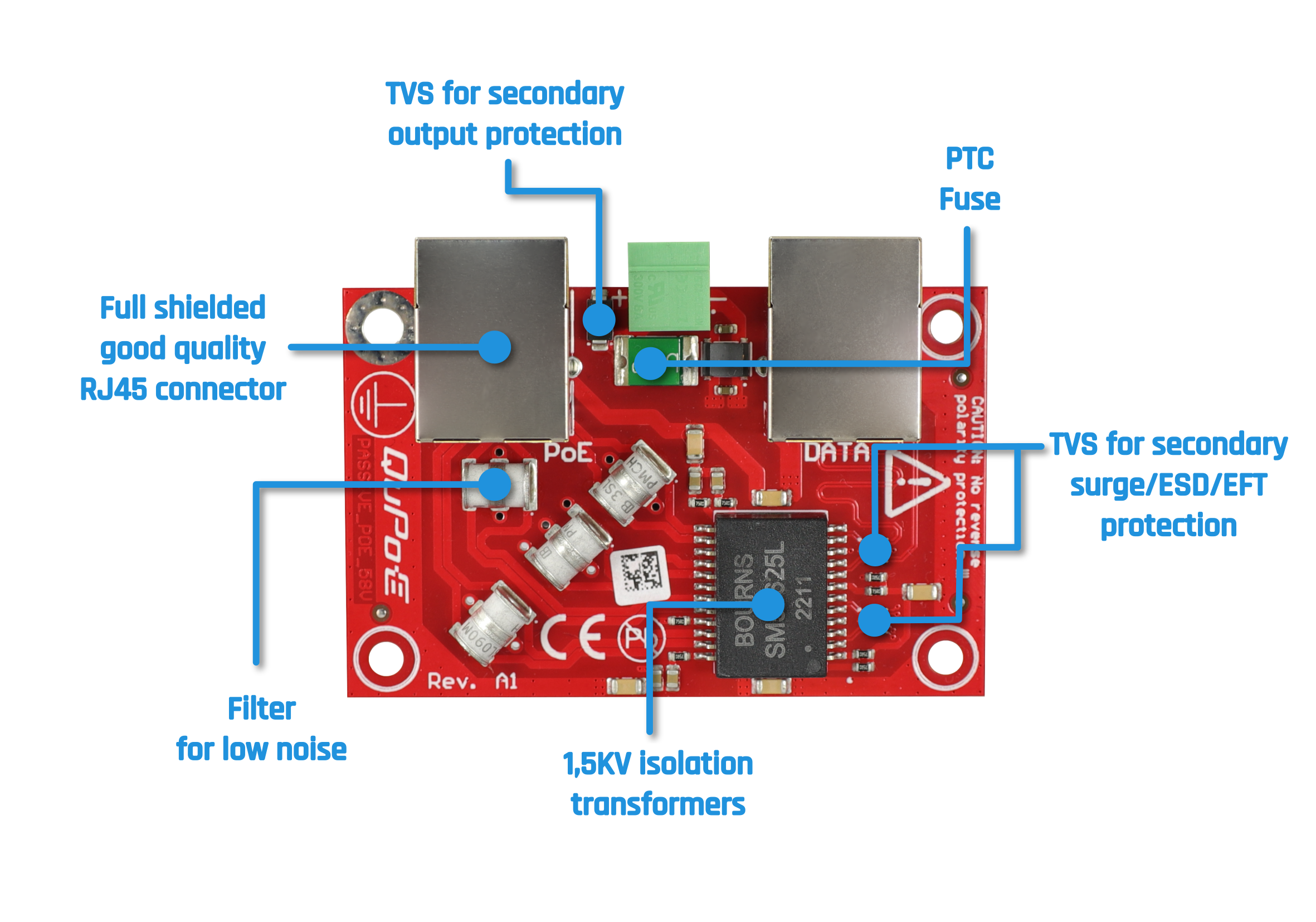

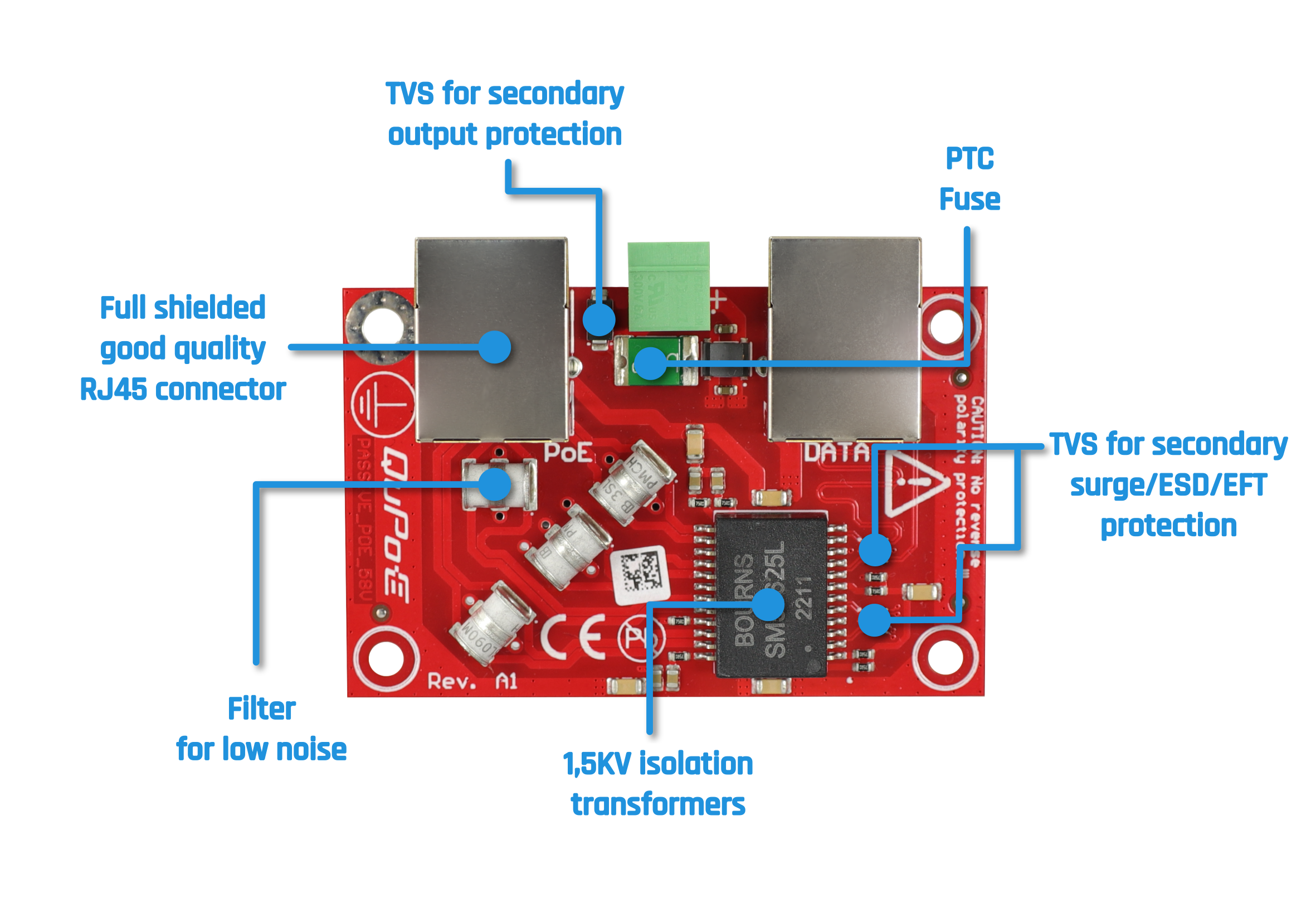

Safety Features

Working scheme of QuPoE PAS-FP - Passive PoE Splitter & Lightning arrester

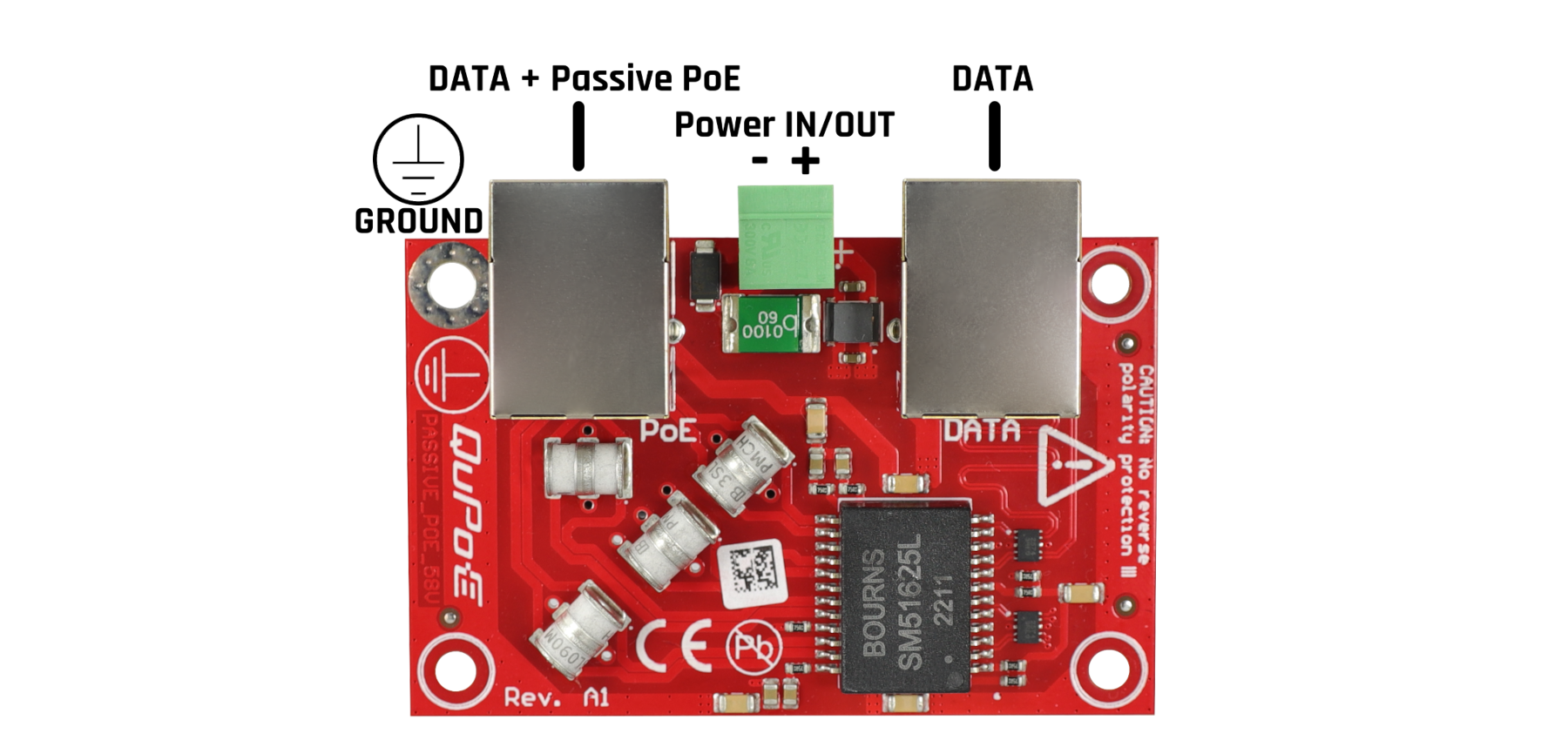

PORTS

Working scheme of QuPoE PAS-FP - Passive PoE Splitter & Lightning arrester

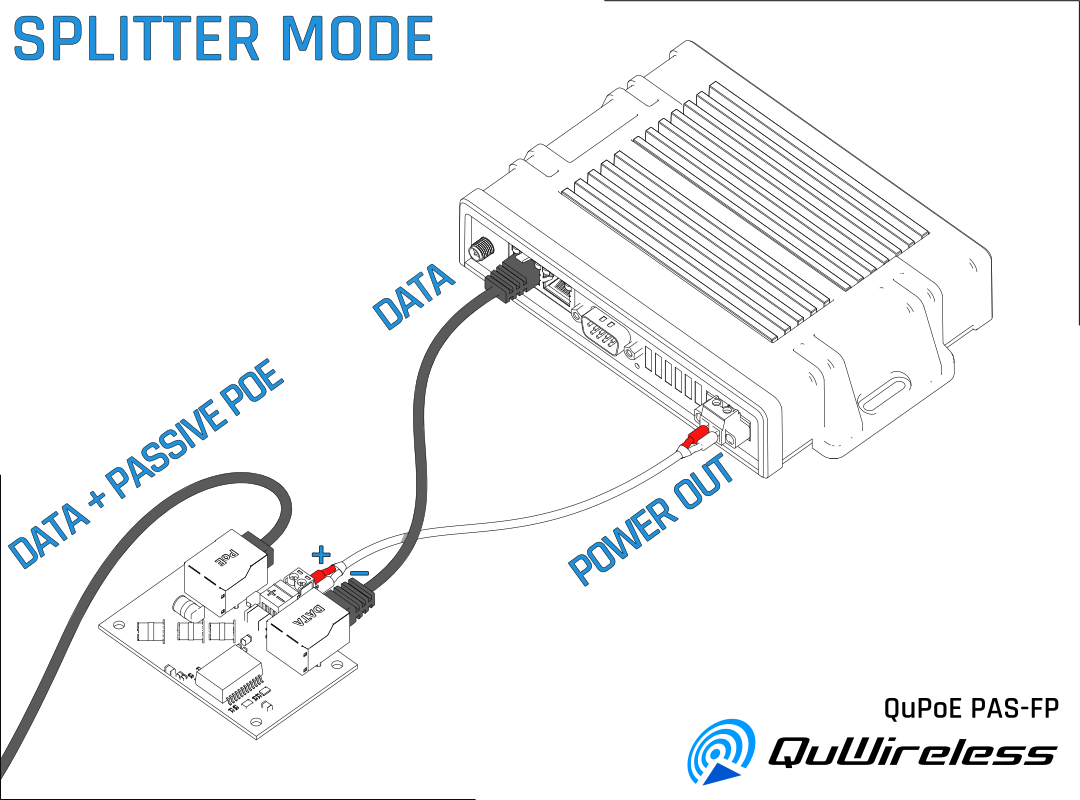

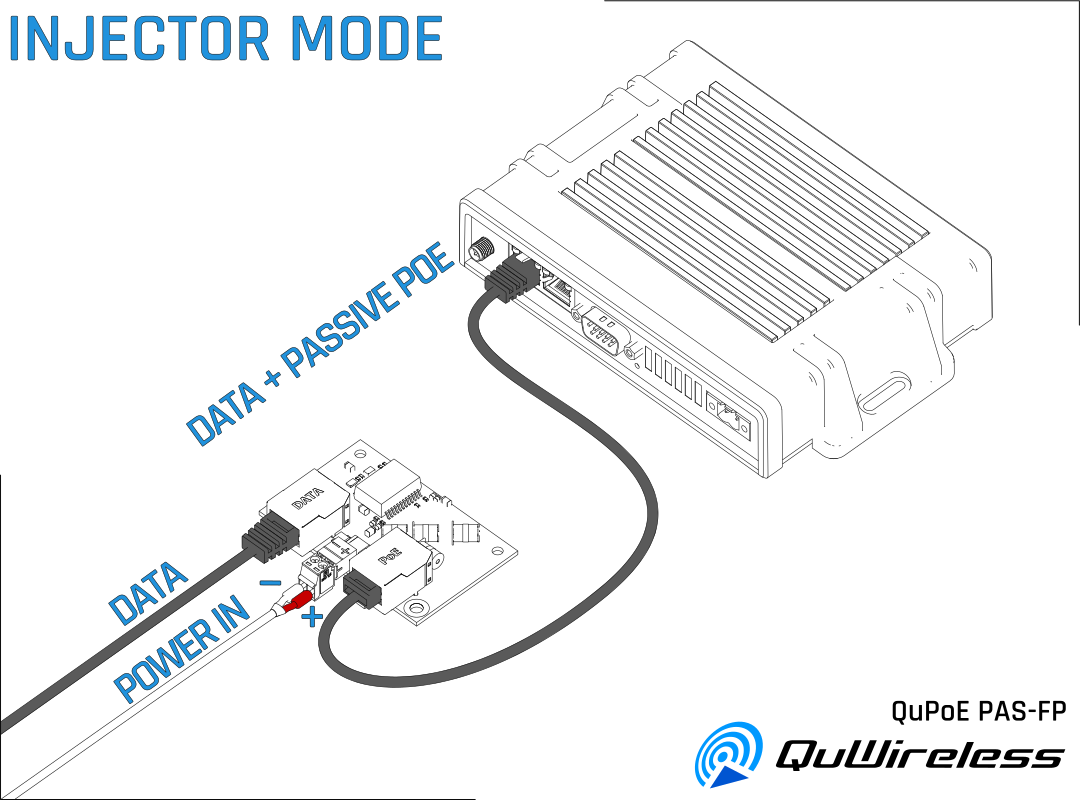

HOW TO CONNECT

QuPoE PAS-FP - Passive PoE Splitter & Lightning arresterQuPoE PAS-FP - Passive PoE Splitter & Lightning arrester
QuPoE PAS-FP - Passive PoE Splitter & Lightning arresterQuPoE PAS-FP - Passive PoE Splitter & Lightning arrester

DOWNLOAD

Datasheet QuPoE PAS-FP - Passive PoE Splitter & Lightning arrester
Download
