QuPoE AT-12V-FP - 802.3at Splitter & Lightning arrester

AT-12V-FP

QuPoE AT-12V-FP - active splitter that provides full PoE and data output protection. It is compliant with the IEEE802.3at standard. The device is ideal for outdoor applications and powering gateway devices, routers, etc.

QuPoE AT-12V-FP splitter provides full PoE and data output protection. It is compliant with the IEEE802.3at standard and has a work temperature range of -40…+80C. The device has lightning, surge, ESD, EFT and power fault protection and is ideal for outdoor applications and powering gateway devices, routers, etc.

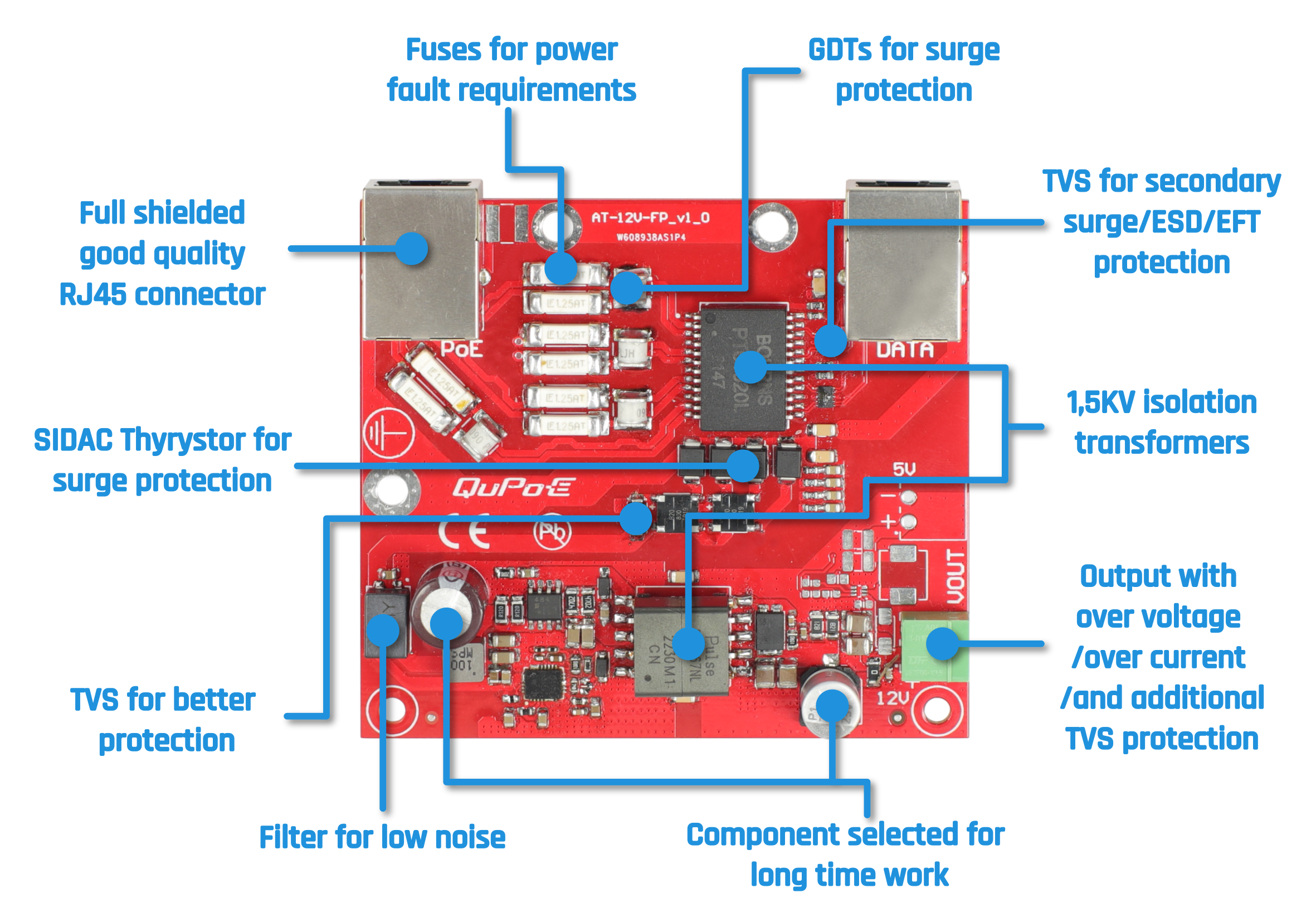

The GDT elements, SIDAC Thyristor, High power TVS Diode and TVS Diode Array provide protection against lightning and high surge. The device has overcurrent protection that complies with the GR-1089, ITU K20/21, EN60950-1 power fault requirements.

The device has 1 DC output 12VDC 2,1A (25W) overcurrent/short protection with auto restart.

Based on high quality parts for working long life time.


Why QuPoE AT-12V-FP - 802.3at Splitter & Lightning arrester

Learn more about your profit

Gigabit Ethernet

Lightning/Surge/ESD protection

Made in Europe

QuPoE AT-12V-FP - 802.3at Splitter & Lightning arrester

SPECIFICATION

PRODUCT DETAILS

POE SPECIFICATION

MECHANICAL SPECIFICATION

PROTECTION

IEEE Standard

IEEE 802.3ab 1000Base-T Gigabit Ethernet

IEEE 802.3at PoE (Power over Ethernet)

POE IN

Powered from PoE in, IEEE802.3at

38-58V, 30W max for PD_802.3AT

Supports both PoE A mode or B mode

DC Output

PD_802AT 12V 25W

Data Out

RJ45 10/100/1000Base-T(X)

Safety Features

Working scheme of QuPoE AT-12V-FP - 802.3at Splitter & Lightning arrester

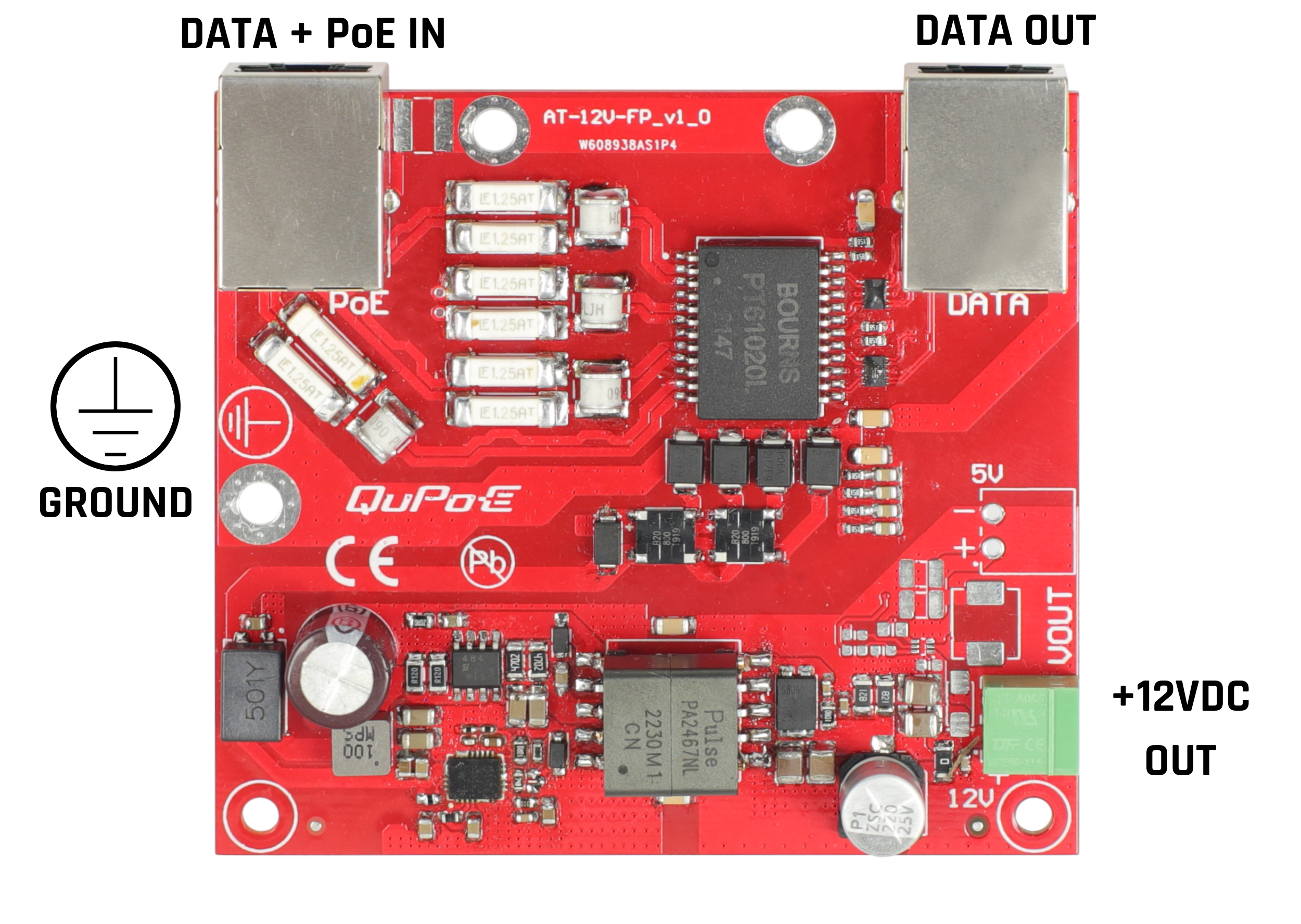

PORTS

Working scheme of QuPoE AT-12V-FP - 802.3at Splitter & Lightning arrester

HOW TO CONNECT

QuPoE AT-12V-FP - 802.3at Splitter & Lightning arresterQuPoE AT-12V-FP - 802.3at Splitter & Lightning arrester

Download

Datasheet QuPoE AT-12V-FP - 802.3at Splitter & Lightning arrester
