Antenna QuPanel LTE HP SISO Nf

P/n: APLS1-HN

Directional High Power multiband LTE SISO antenna

QuPanel LTE HP directional high gain antenna is predicted for 4G LTE mainly, but is compatible with 3G and 2G as well. The antenna improves the signal in rural/suburban and locations where the mobile signal is weak. That antenna is predicted to be installed on the buildings (on the pole or on the wall). Due to very wide working frequency range, the antenna is universal client for LTE bands like LTE700/800/1800/1900/2100/2300/2600. It’s compatible with Teltonika: RUT230, TRB140, TRB141, TRB142, TRB145, TRM240, TRM250 and other SISO LTE/3G/2G modems and routers.

Why QuPanel LTE HP SISO Nf

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

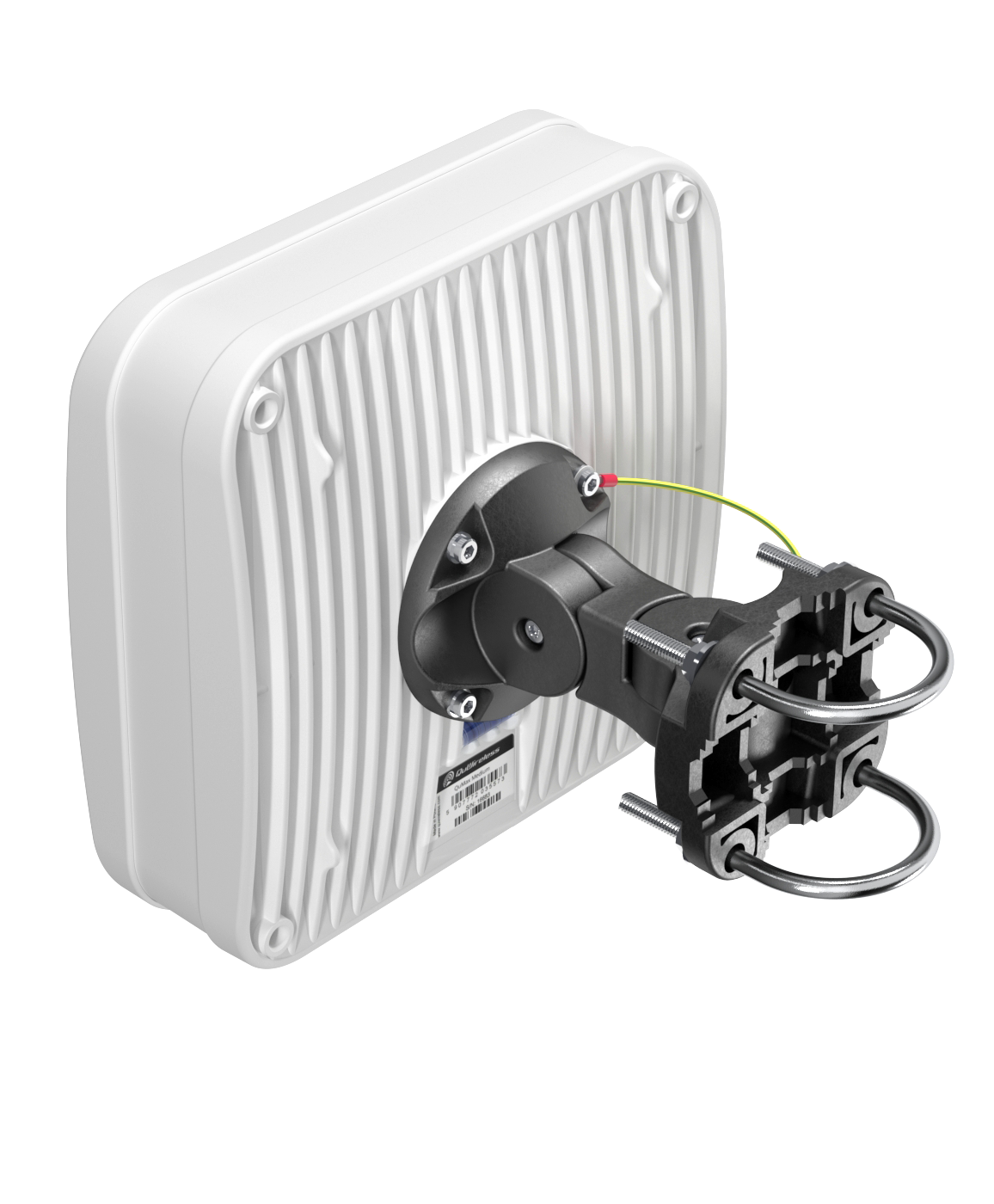

Mounting system with two planes, 60 degrees regulation

Integrated Nf connector

7 dBi gain

70° Beamwidth

Made in Europe

QuPanel LTE HP SISO Nf

SPECIFICATION

PRODUCT DETAILS

LTE ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS

Frequency

694 - 960 MHz

1.7 - 2.2 GHz

2.2 - 2.7 GHz

Supported LTE/5G bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256

Gain

694 - 960 MHz : 7 dBi

1.7 - 2.2 GHz : 7 dBi

2.2 - 2.7 GHz : 7 dBi

Front-to-Back

>10 dB

VSWR

<1.70, max <2.00

Beamwidth

70°/70° ±15°

Polarization

±45°

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR

VSWR of QuPanel LTE HP SISO Nf

Gain

Gain of QuPanel LTE HP SISO Nf
From 700MHz to 900MHz
Elevation
Azimuth
From 1.71GHz to 2.17GHz
Elevation
Azimuth
From 2.3GHz to 2.7GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuPanel LTE HP SISO NfQuPanel LTE HP SISO Nf
QuPanel LTE HP SISO NfQuPanel LTE HP SISO Nf
QuPanel LTE HP SISO NfQuPanel LTE HP SISO Nf

WHAT'S IN THE BOX?

PRODUCT DETAILS

IN THE BOX

QuPanel LTE HP SISO Nf

Parts of QuPanel LTE HP SISO Nf
1 x
Parts of QuPanel LTE HP SISO Nf
1 x
Parts of QuPanel LTE HP SISO Nf
4 x M6 x 18
Parts of QuPanel LTE HP SISO Nf
4 x
Parts of QuPanel LTE HP SISO Nf
4 x M8
Parts of QuPanel LTE HP SISO Nf
2 x
Parts of QuPanel LTE HP SISO Nf
1 x

Download

Datasheet QuPanel LTE HP SISO Nf
Download
3D MODEL
Download
Installation Guide
Download
IP67 Certificate
Download
