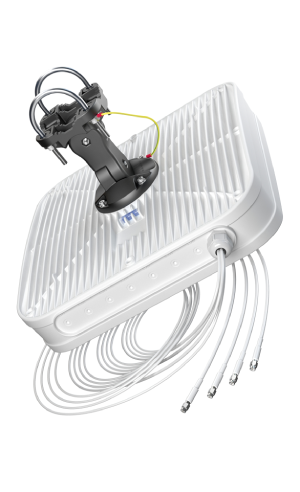

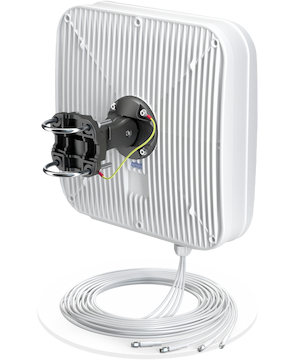

Antenna QuPanel 5G/LTE MIMO 4x4

P/n: AP5G4

Directional High Power multiband 5G/LTE MIMO 4x4 antenna

QuPanel 5G/LTE directional MIMO 4x4 high gain antenna is predicted for 5G and 4G LTE mainly, but is compatible with 3G and 2G as well. The antenna improves the signal in rural/suburban and locations where the mobile signal is weak. That antenna is predicted to be installed on the buildings (on the pole or on the wall). Due to very wide working frequency range, the antenna is universal client for 5G bands n77, n78 and LTE bands like LTE700 / 800 / 1800 / 1900 / 2100 / 2300 / 2600 / 3400 / 3800. It’s compatible with Teltonika and other MIMO 4x4 5G / LTE / 3G / 2G modems and routers.

Check out the new, ultra wide 5G Global antenna.

Variants:

10m

Technical specification

Any question?

Why QuPanel 5G/LTE MIMO 4x4

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Mounting system with two planes, 60 degrees regulation

Four SMA connectors

7.5 dBi gain

70° beamwidth

Made in Europe

SPECIFICATION

PRODUCT DETAILS

Frequency

694 - 960 MHz

1.7 - 2.2 GHz

2.2 - 2.7 GHz

3.3 - 3.8 GHz

Gain

694 - 960 MHz : 7 dBi

1.7 - 2.2 GHz : 7 dBi

2.2 - 2.7 GHz : 7.5 dBi

3.3 - 3.8 GHz : 5.5 dBi

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 85, 103, 106

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<1.70, max <2.00

Beamwidth

70°/70° ±15°

Polarization

Dual polarized X-Pol

Impedance

50 Ω

Front-to-Back

694 - 960 MHz : >10 dB

1.7 - 2.2 GHz : >12 dB

2.2 - 2.7 GHz : >14 dB

3.3 - 3.8 GHz : >17 dB
