1. What does it mean that the antenna is directional?

Type of antenna which maximizes its gain in particular direction. Like a flashlight concentrates its light at one spot, directional antenna emits radio waves in a concentrated beam. Directioanl antenna radiation pattern:

IPXY is an Ingress Protection Rating, which defines protection levels of certain product. X from 0-6 defines security level from penetration of solids. Y from 0-9 defines security level from water.

3. What is MIMO and SISO?

MIMO (Multiple Input Multiple Output) is a technology that uses more than one antenna for both, transmitter and receiver. Systems using MIMO utilize those numerous antennas to receive many data streams at once operating in a single radio channel. In general, the more antennas are in your MIMO system,the more data streams can be received. SISO (Single Input Single output) – kind of system that uses only one antenna for transmitter and receiver, e.g. GSM, CDMA, satellite or radio systems. It is the most basic antenna technology used.

Porównaj

Antenna QuPanel 5G/LTE MIMO 4x4 TS9

To check PN please select variant below

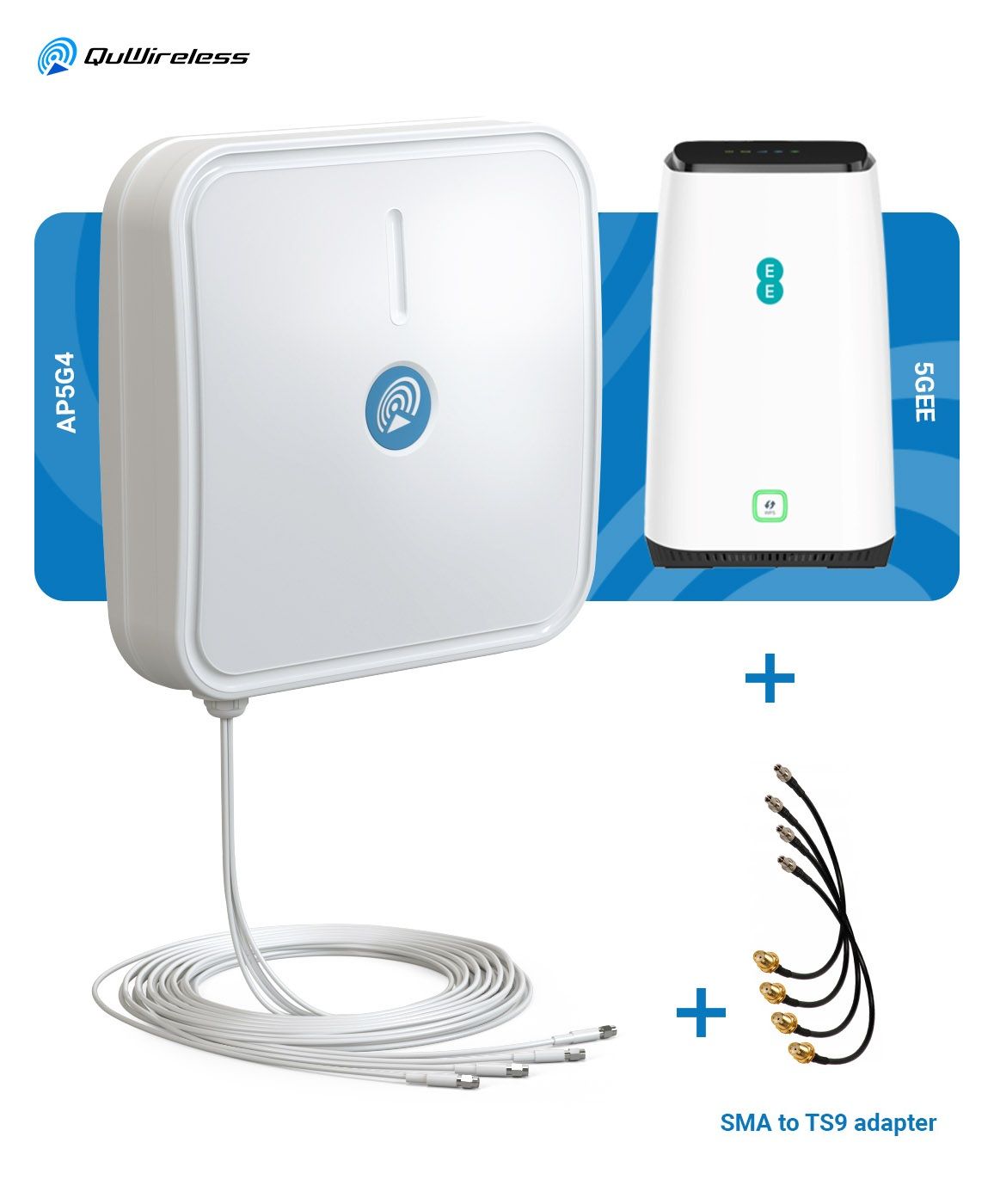

Directional High Power multiband 5G/LTE MIMO 4x4 antenna for 5GEE router

QuPanel 5G/LTE for 5GEE directional, MIMO 4x4, high gain antenna is predicted for 5G and 4G LTE mainly, but is compatible with 3G and 2G as well. The antenna improves the signal in rural/suburban and locations where the mobile signal is weak. That antenna is predicted to be installed on the buildings (on the pole or on the wall). Due to very wide working frequency range, the antenna is universal client for 5G bands n77, n78 and LTE bands like LTE700 / 800 / 1800 / 1900 / 2100 / 2300 / 2600 / 3400 / 3800. It’s compatible with 5GEE Smart 5G Hub and other MIMO 4x4, 5G routers.

Antenna comes with SMA connectors and SMA to TS9 adapters.

Variants:

10m

Technical specification

Any question?

Why QuPanel 5G/LTE MIMO 4x4 TS9

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Mounting system with two planes, 60 degrees regulation

Four TS9 adapters

7.5 dBi gain

70° beamwidth

Made in Europe

SPECIFICATION

PRODUCT DETAILS

Frequency

694 - 960 MHz

1.7 - 2.2 GHz

2.2 - 2.7 GHz

3.3 - 3.8 GHz

Gain

694 - 960 MHz : 7 dBi

1.7 - 2.2 GHz : 7 dBi

2.2 - 2.7 GHz : 7.5 dBi

3.3 - 3.8 GHz : 5.5 dBi

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 85, 103, 106

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<1.70, max <2.00

Beamwidth

70°/70° ±15°

Polarization

Dual polarized X-Pol

Impedance

50 Ω

Front-to-Back

694 - 960 MHz : >10 dB

1.7 - 2.2 GHz : >12 dB

2.2 - 2.7 GHz : >14 dB

3.3 - 3.8 GHz : >17 dB

PLOTS

PRODUCT DETAILS

VSWR

Gain

Port 1&3 700MHz to 900MHz

Elevation

Azimuth

Port 1&3 1.71GHz to 2.17GHz

Elevation

Azimuth

Port 1&3 2.3GHz to 2.7GHz

Elevation

Azimuth

Port 1&3 3.3GHz to 3.8GHz

Elevation

Azimuth

Port 2&4 700MHz to 900MHz

Elevation

PORT 2&4 Azimuth

Port 2&4 1.71GHz to 2.17GHz

Elevation

Azimuth

Port 2&4 2.3GHz to 2.7GHz

Elevation

Azimuth

Port 2&4 3.3GHz to 3.8GHz

Elevation

Azimuth

ANY QUESTIONS?

DIMENSIONS

PRODUCT DETAILS

WHAT'S IN THE BOX?

PRODUCT DETAILS

IN THE BOX

QuPanel 5G/LTE for 5GEE

1 x

4 x M6 x 18

4 x

4 x M8

2 x

1 x

4x SMA to TS9 adapter
