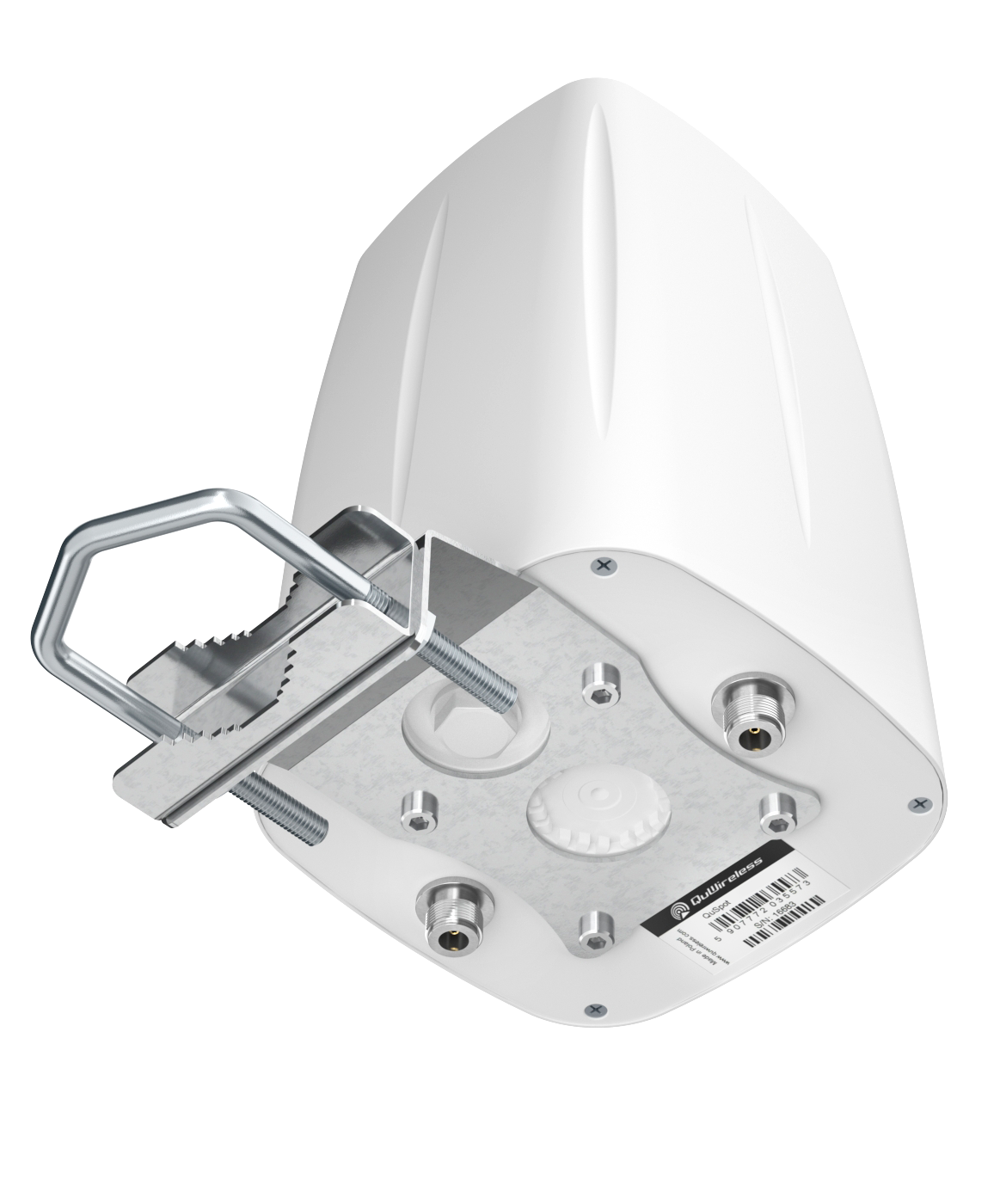

Antenna QuOmni LTE MIMO 2x2 Nf

P/n: AOLM2-N

Omnidirectional multiband LTE MIMO 2x2 antenna

QuOmni LTE omnidirectional MIMO 2x2 LTE outdoor antenna operates with vertical polarization and is designed for LTE/3G/2G connections. It supports various popular LTE bands (such as 3, 7, 20) across frequencies ranging from 694 MHz to 2700 MHz.

This versatile antenna can be mounted on either on pole or wall. It can be used as an outdoor client antenna, or it can be installed on mobile platforms like trains, buses, trucks, yachts, and boats to enable LTE/3G internet reception.

It is fully compatible with a range of Teltonika products, including the RUT240, RUT900, RUT950, RUT955, RUTX09, RUTX11, as well as other MIMO 2x2 LTE/3G/2G modems and routers.

Why QuOmni LTE MIMO 2x2 Nf

Learn more about your profit

Outdoor antenna works in any weather conditions, IP68

Galvanized steel, wall or pole mounting bracket

Two, integrated, Nf connectors

360° beamwidth

4dBi gain

Made in Europe

QuOmni LTE MIMO 2x2 Nf

SPECIFICATION

PRODUCT DETAILS

LTE ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS

Frequency

694 - 960 MHz

1.7 - 2.2 GHz

2.2 - 2.7 GHz

Gain

694 - 960 MHz : 2 dBi

1.7 - 2.2 GHz : 2 dBi

2.2 - 2.7 GHz : 4 dBi

Supported LTE/5G bands

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95

VSWR

<1.60, max <2.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR

VSWR of QuOmni LTE MIMO 2x2 Nf

Gain

Gain of QuOmni LTE MIMO 2x2 Nf
From 700MHz to 900MHz
Elevation
Azimuth
From 1.71GHz to 2.17GHz
Elevation
Azimuth
From 2.3GHz to 2.7GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuOmni LTE MIMO 2x2 NfQuOmni LTE MIMO 2x2 Nf
QuOmni LTE MIMO 2x2 NfQuOmni LTE MIMO 2x2 Nf

WHAT'S IN THE BOX?

PRODUCT DETAILS

IN THE BOX

QuOmni LTE MIMO 2x2 Nf

Parts of QuOmni LTE MIMO 2x2 Nf
1 x
Parts of QuOmni LTE MIMO 2x2 Nf
1 x
Parts of QuOmni LTE MIMO 2x2 Nf
2 x M8
Parts of QuOmni LTE MIMO 2x2 Nf
1 x
Parts of QuOmni LTE MIMO 2x2 Nf
4 x M6 x 10
Parts of QuOmni LTE MIMO 2x2 Nf
4 x
