Antenna QuOmni 7V-3 Nf Wi-Fi 6E

P/n: O7V.3Nf

QuOmni 7V-3 Wi-Fi 6E offers a 360 degrees, 6dBi (2.4GHz) & 7.5dBi (5GHz and 7GHz) gain signal. It is a perfect indoor and outdoor device for industrial installations.

QuOmni 7V-3 is a concurrent dual band, Vertical polarity, MIMO 3x3 omni antenna. It simultaneously operates at 2.4GHz with 6dBi gain and 5GHz+7GHz with 7.5dBi gain. It is a futureproof solution with Wi-Fi 6E and Wi-Fi 7 support. This antenna is predicted to be installed as the hotspot in parks, stadiums, warehouses, production halls, malls, lecture halls or another public places. Its aesthetic design is acceptable in most of the visible places. Wide frequency range (2.4-2.5GHz & 5.0-7.2GHz) helps to find suitable frequency for the most effective operation. The antenna comes in with three Nf connectors



WHY QUOMNI 7V-3 NF Wi-Fi 6E

Learn more about your profit

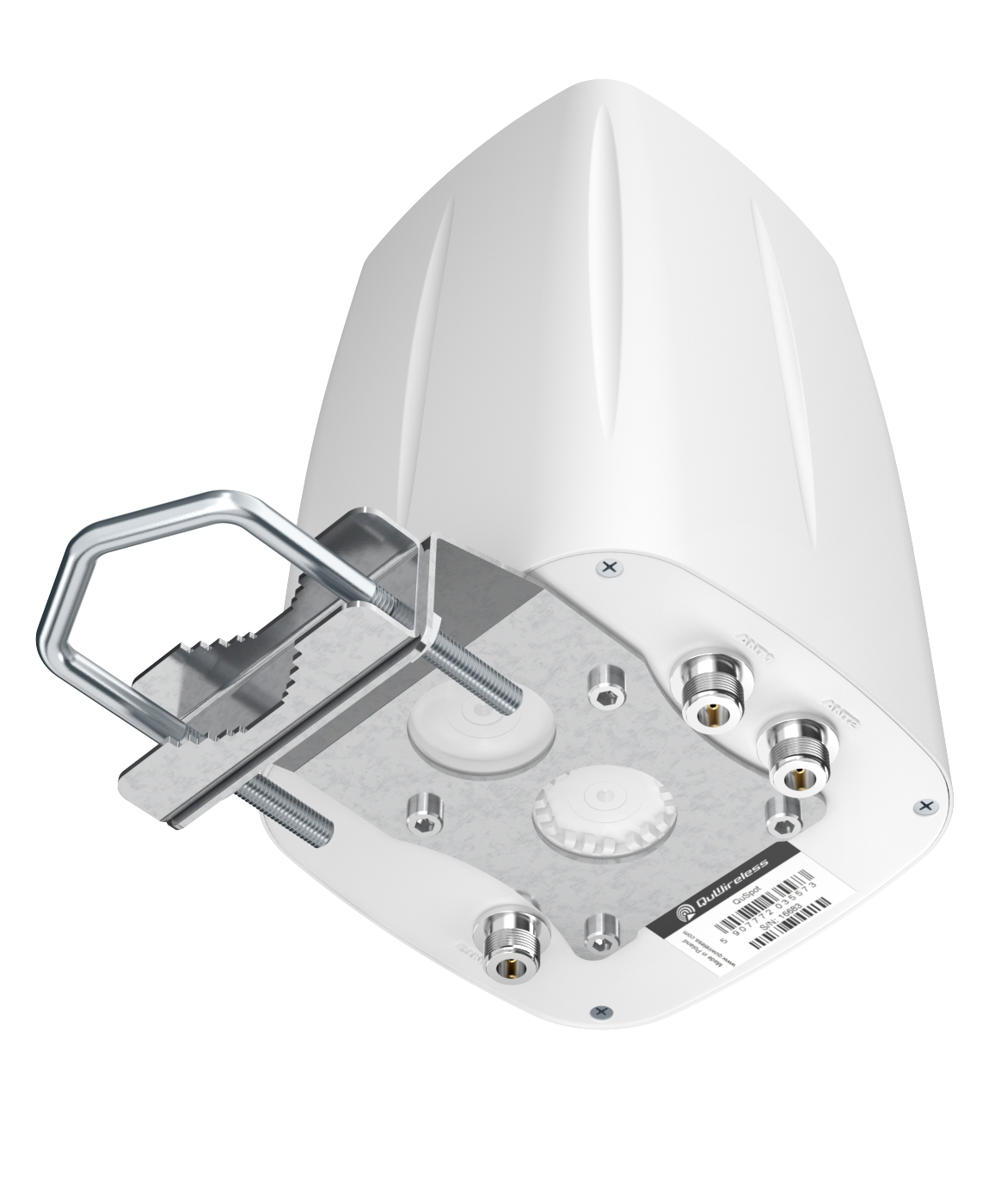

Three integrated Nf connectors

Outdoor antenna works in any weather conditions, IP68

Antenna perfectly matched with the router

Made in Europe

QuOmni 7V-3 Nf Wi-Fi 6E

SPECIFICATION

PRODUCT DETAILS

Wi-Fi SPECIFICATION

MECHANICAL SPECIFICATION

MOUNTING KIT

COMPATIBLE ROUTERS

Frequency

2.4 - 2.5 GHz

5.0 - 7.2 GHz

Gain

2.4 - 2.5 GHz: 6dBi

5 GHz: 7.5dBi

7 GHz: 7.5dBi

VSWR

< 1.50, max < 2.00

Beamwidth

360°/25°

Polarization

Vertical

Impedance

50 Ω

Max Input Power

50W

DC Ground

Yes

PLOTS

PRODUCT DETAILS

VSWR

VSWR of QuOmni 7V-3 Nf Wi-Fi 6E

GAIN

GAIN of QuOmni 7V-3 Nf Wi-Fi 6E
2.4GHz and 5GHz
Azimuth
Elevation

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuOmni 7V-3 Nf Wi-Fi 6EQuOmni 7V-3 Nf Wi-Fi 6E
QuOmni 7V-3 Nf Wi-Fi 6EQuOmni 7V-3 Nf Wi-Fi 6E

Download

Datasheet QuOmni 7V-3 Nf Wi-Fi 6E
Download
Installation Guide
Download
IP67 Certificate
Download
IP68 Certificate
Download
