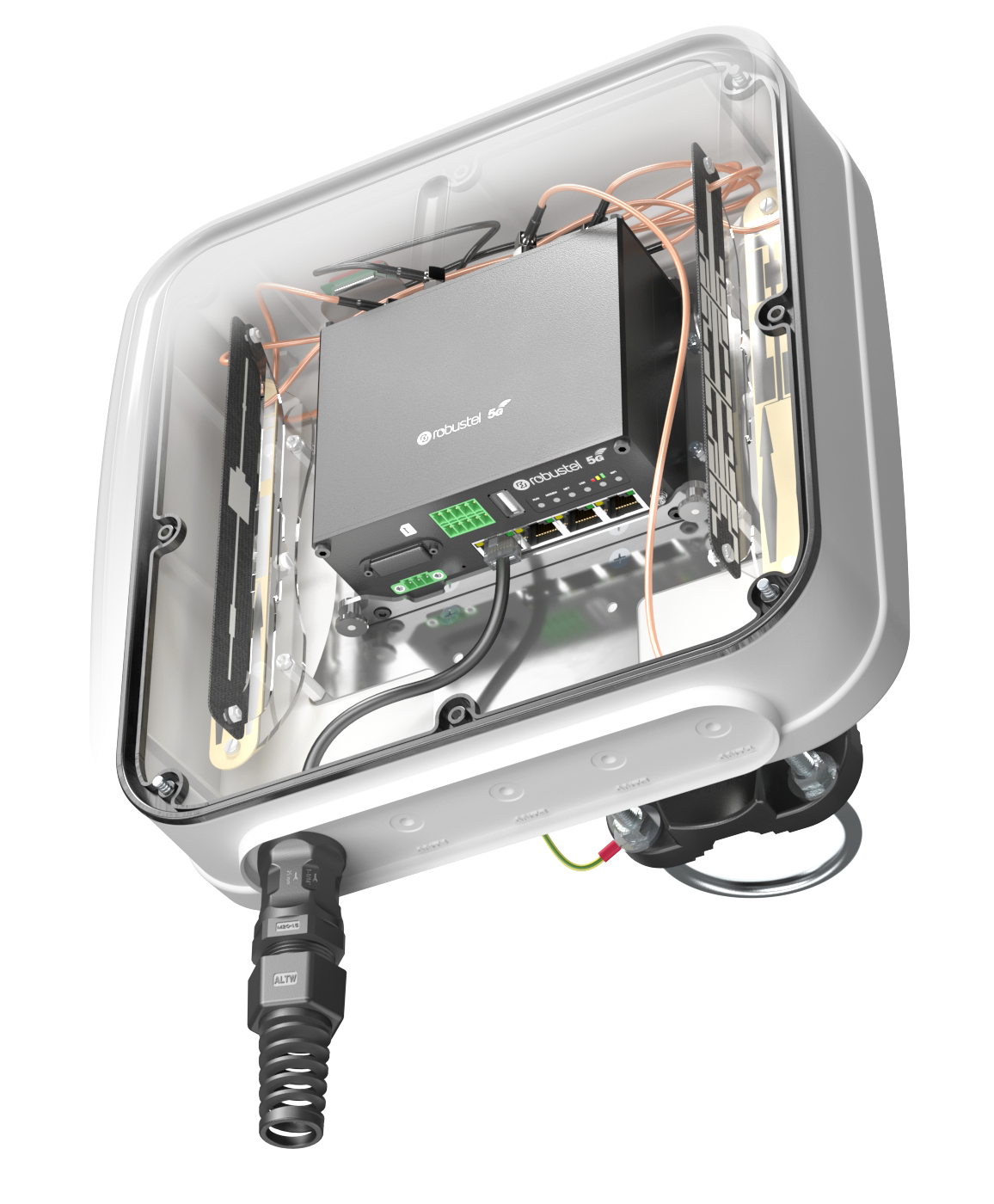

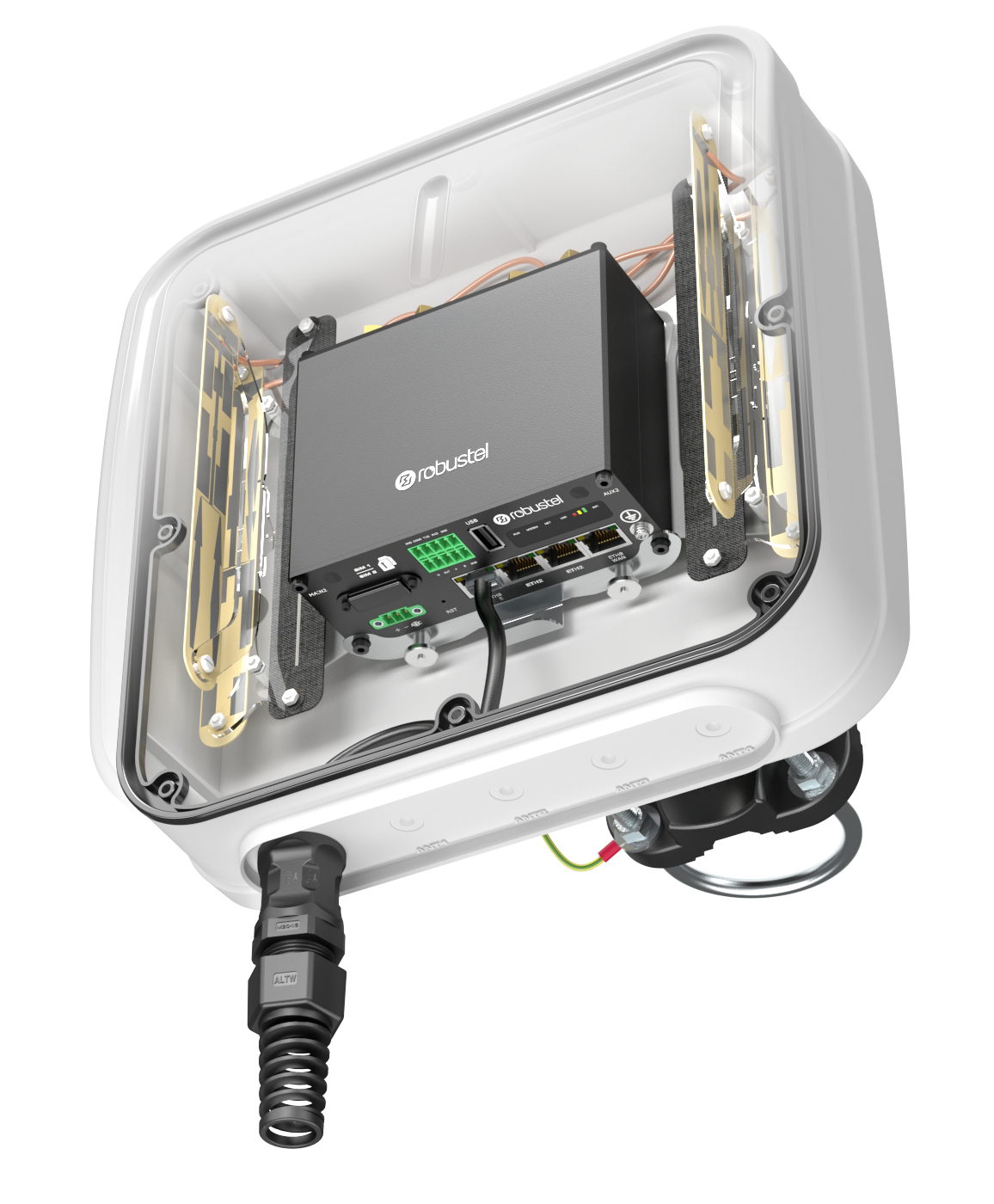

Antenna QuMax Omni for Robustel R2110

To check PN please select variant below

INTEGRATED MULTI-BAND LTE OMNI ANTENNA + WIFI OMNI ANTENNA + BLUETOOTH ANTENA + GPS ANTENNA + PLACE TO INSTALL ROBUSTEL R2110 (ALL-IN-ONE)

QuMax Omni all-in-one antenna for Robustel R2110 router is a perfect outdoor device for mobile and fixed installations like industrial, public, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded omni LTE, Wi-Fi, Bluetooth and GPS antenna. If you use R2110 with QuMax Omni antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Wi-Fi 7 support!

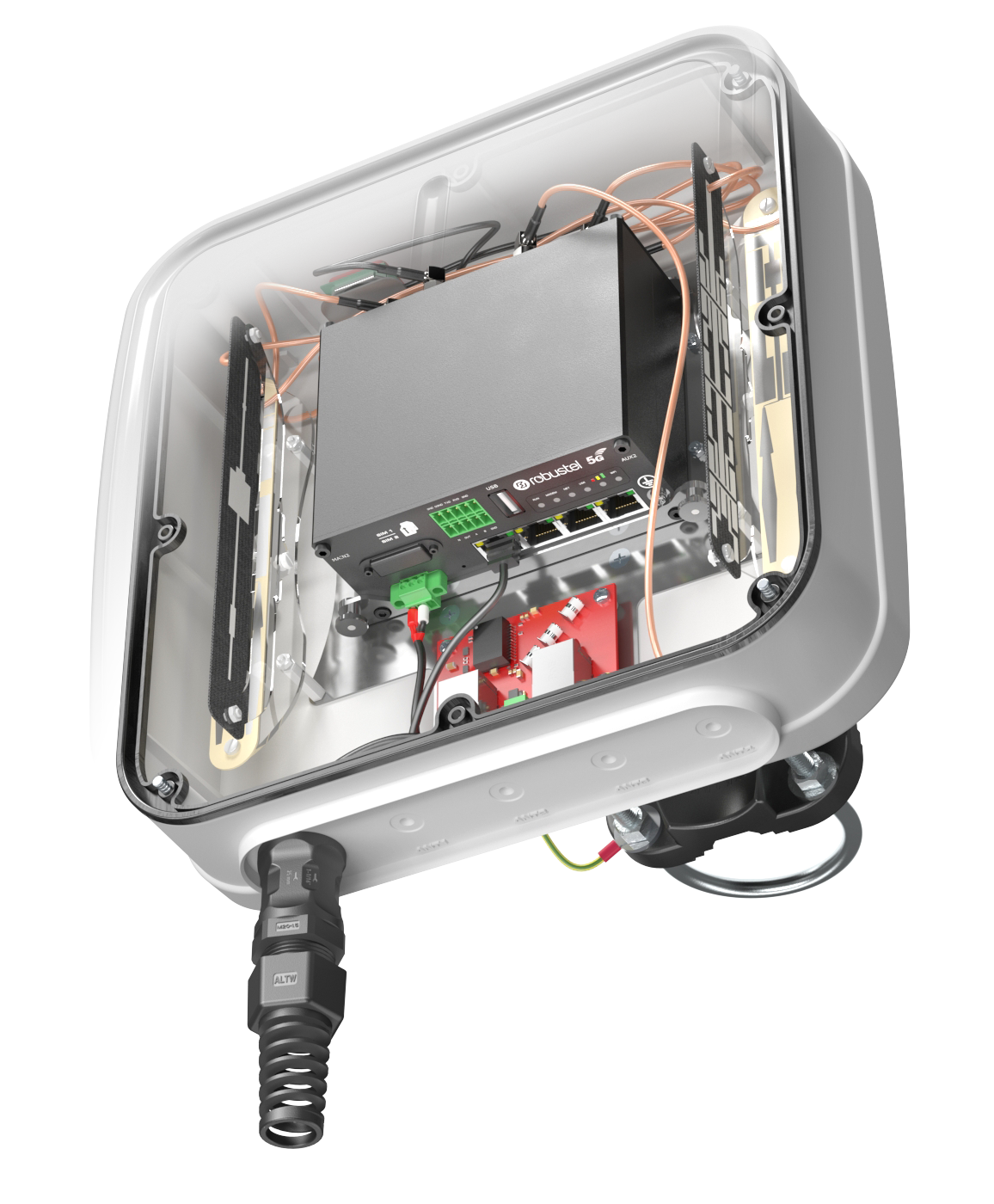

Note! This antenna comes in two different versions, depending on your router configuration. When you use R2110 supporting Power over Ethernet (PoE) please choose version "no PoE splitter'. For R2110 without PoE support, please choose "PoE splitter" version. Compatible Robustel part numbers available in the specification below.

Variants:

no PoE splitter

PoE splitter

Why QuMax Omni for Robustel R2110

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the Robustel R2110

All antennas and Robustel router integrated in one enclosure

Made in Europe

QuMax Omni for Robustel R2110

SPECIFICATION

PRODUCT DETAILS

LTE SPECIFICATION

WI-FI SPECIFICATION

MECHANICAL SPECIFICATION

MOUNTING KIT

COMPATIBLE PART NUMBERS

COMPATIBLE ROUTERS

FREQUENCY

0.694-0.96 GHz

1.7 - 2.2 GHz

2.5 - 2.7 GHz

SUPPORTED LTE/5G BANDS

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 33, 34, 35, 36, 37, 38, 39, 44, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n95

GAIN

0.694 - 0.96 GHz : 4 dBi

1.7 - 2.2 GHz : 5 dBi

2.5 - 2.7 GHz : 6 dBi

VSWR

<1.50, max <2.50

BEAMWIDTH

360°/25° +/- 5°

POLARIZATION

Vertical

IMPEDANCE

50 Ω

PLOTS

PRODUCT DETAILS

LTE VSWR

LTE VSWR of QuMax Omni for Robustel R2110

WI-FI VSWR

WI-FI VSWR of QuMax Omni for Robustel R2110

LTE Gain

LTE Gain of QuMax Omni for Robustel R2110

Wi-Fi Gain

Wi-Fi Gain of QuMax Omni for Robustel R2110
LTE from 700MHz to 900MHz
Elevation
Azimuth
LTE from 1.71GHz to 2.17GHz
Elevation
Azimuth
LTE from 2.3GHz to 2.7GHz
Elevation
Azimuth
Wi-Fi 2.4GHz and 5GHz and 6GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuMax Omni for Robustel R2110QuMax Omni for Robustel R2110

Download

Datasheet QuMax Omni for Robustel R2110
Download
Installation Guide
Download
IP67 Certificate
Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA
Use case QuMax Omni for Robustel R2110
Use case QuMax Omni for Robustel R2110
Use case QuMax Omni for Robustel R2110
