1. What does it mean that the antenna is directional?

Type of antenna which maximizes its gain in particular direction. Like a flashlight concentrates its light at one spot, directional antenna emits radio waves in a concentrated beam. Directioanl antenna radiation pattern: To learn more about directional antennas take a look at -> „link”

2. Why placing router and antenna in one enclosure is better?

The biggest benefit of router and antenna being next to each other is the reduction of cable used to connect the elements. Reducing the cable length reduces its loss, which has high impact on signal quality.

IPXY is an Ingress Protection Rating, which defines protection levels of certain product. X from 0-6 defines security level from penetration of solids. Y from 0-9 defines security level from water.

Porównaj

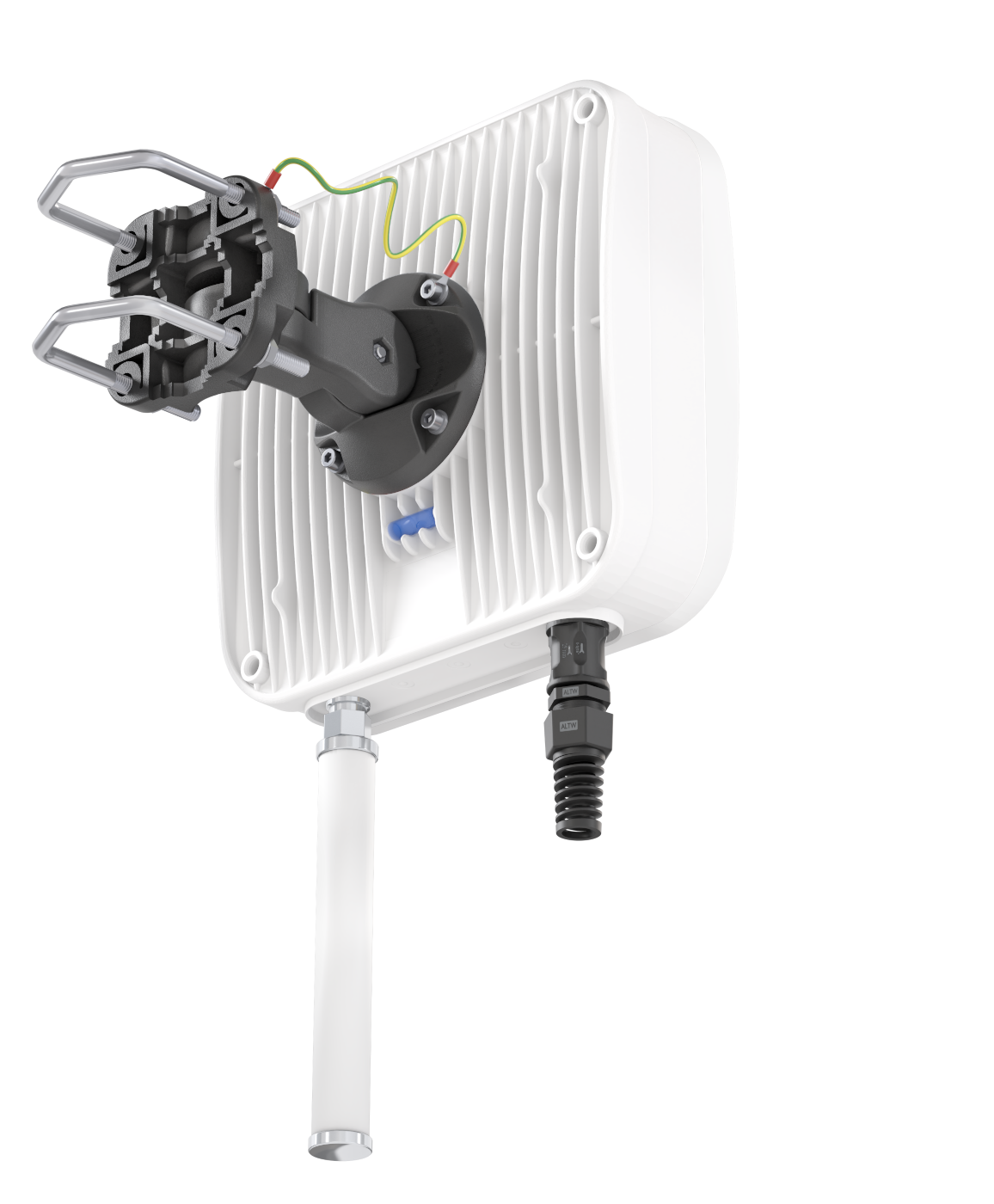

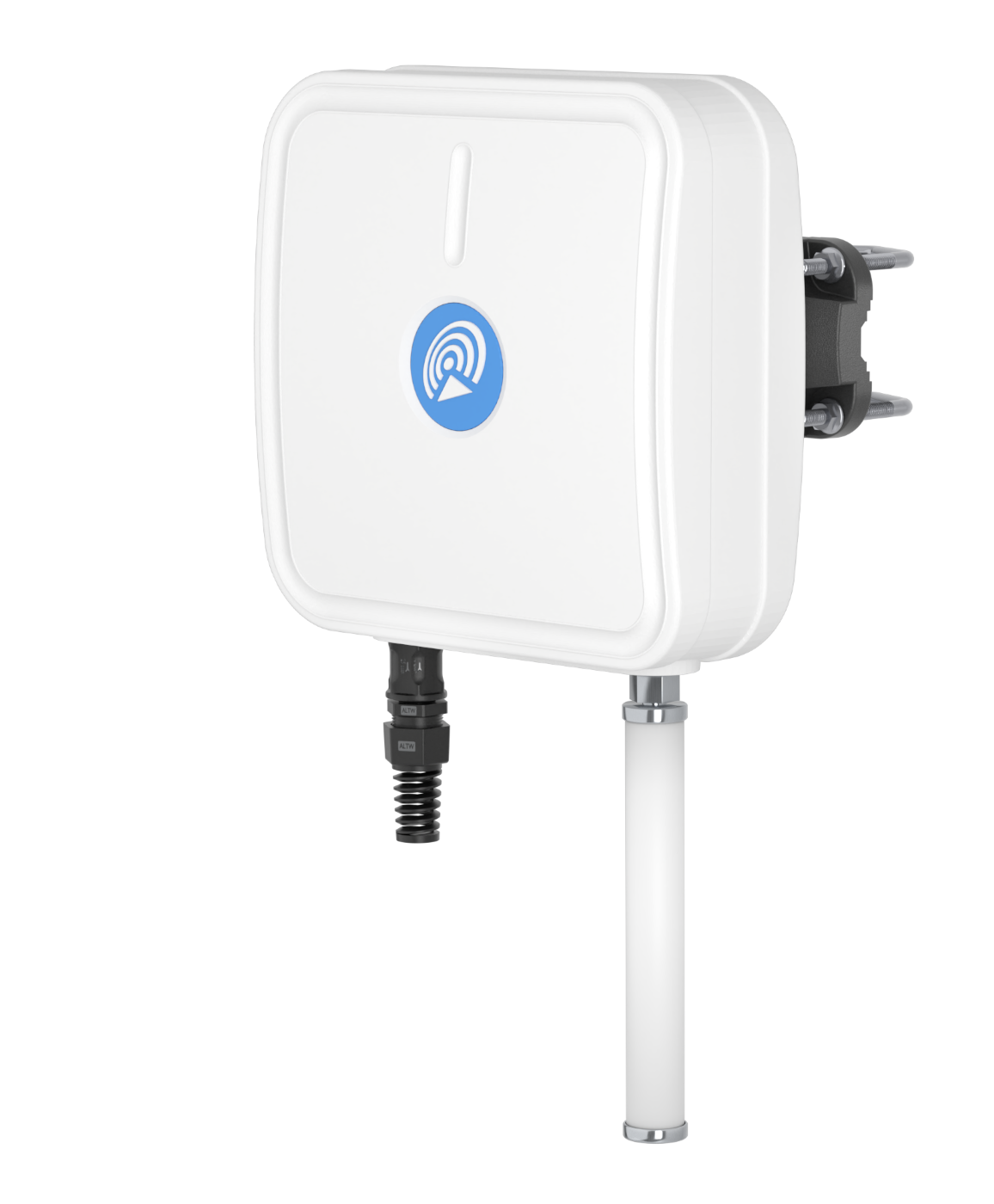

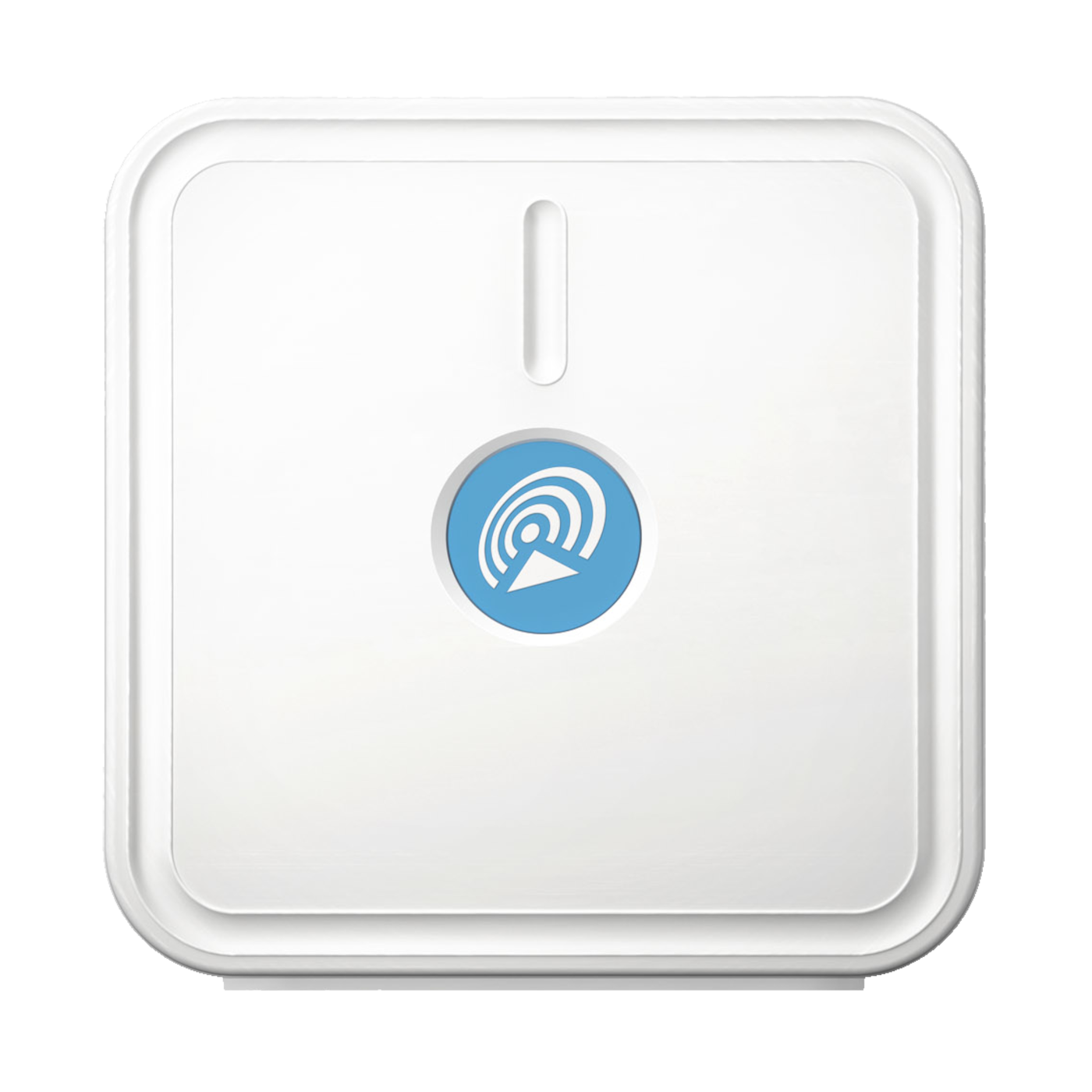

Antenna QuMax for Cradlepoint IBR200

P/n: ACP200M

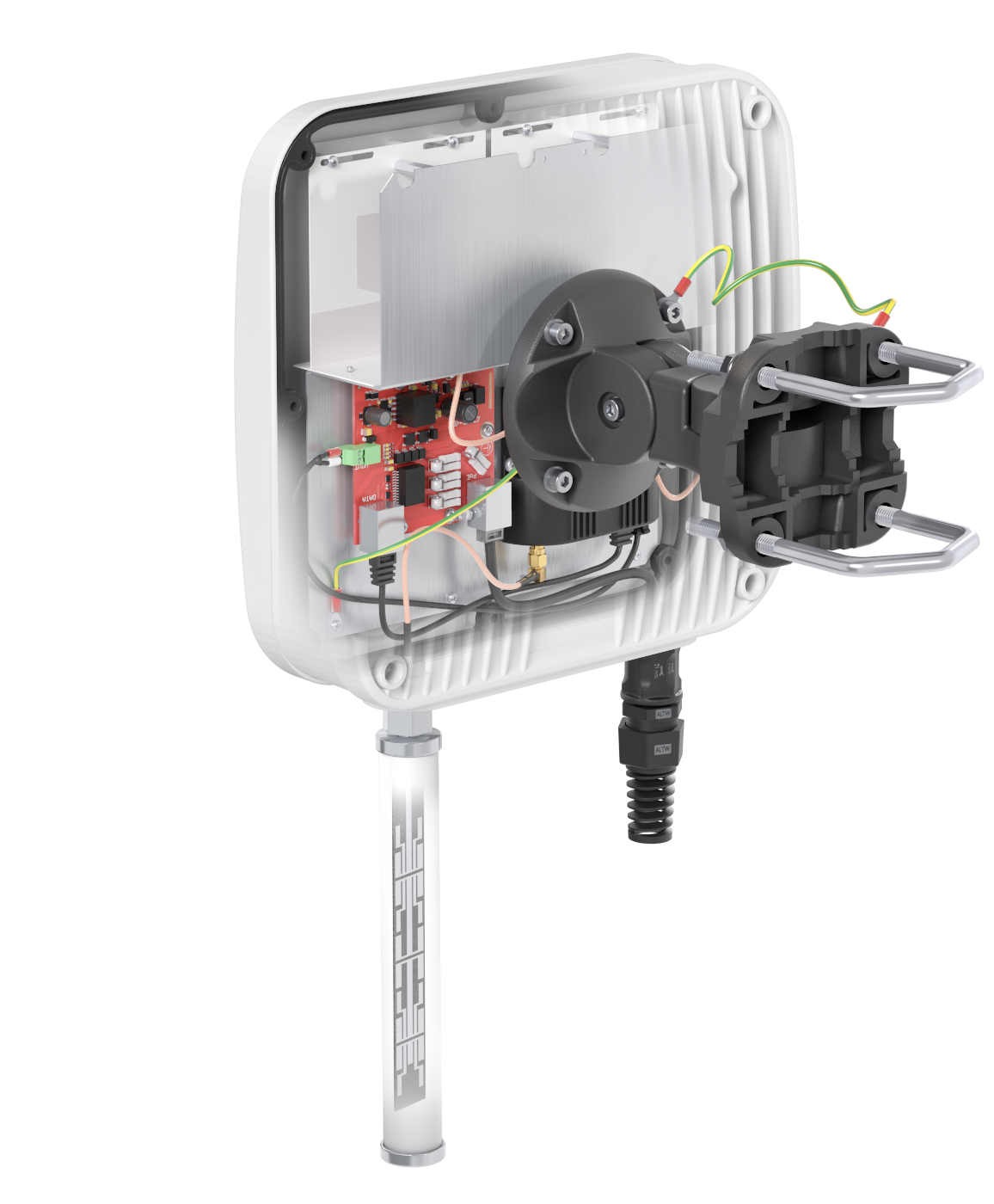

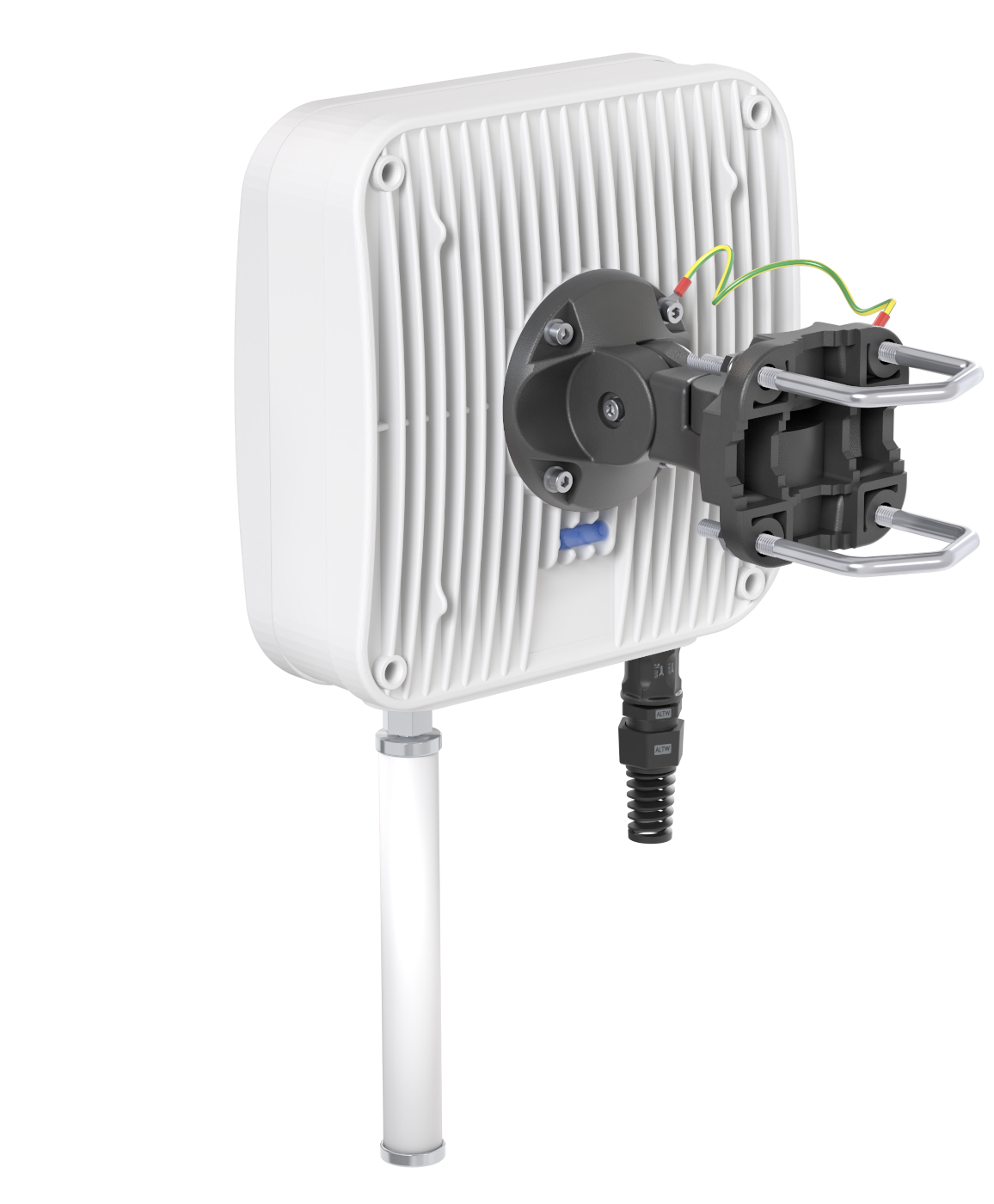

Integrated outdoor LTE high power directional antenna + outdoor Wi-Fi dual band 2.4 & 5 GHz omni antenna + PoE spliter + place to install Cradlepoint IBR200 (All-in-one)

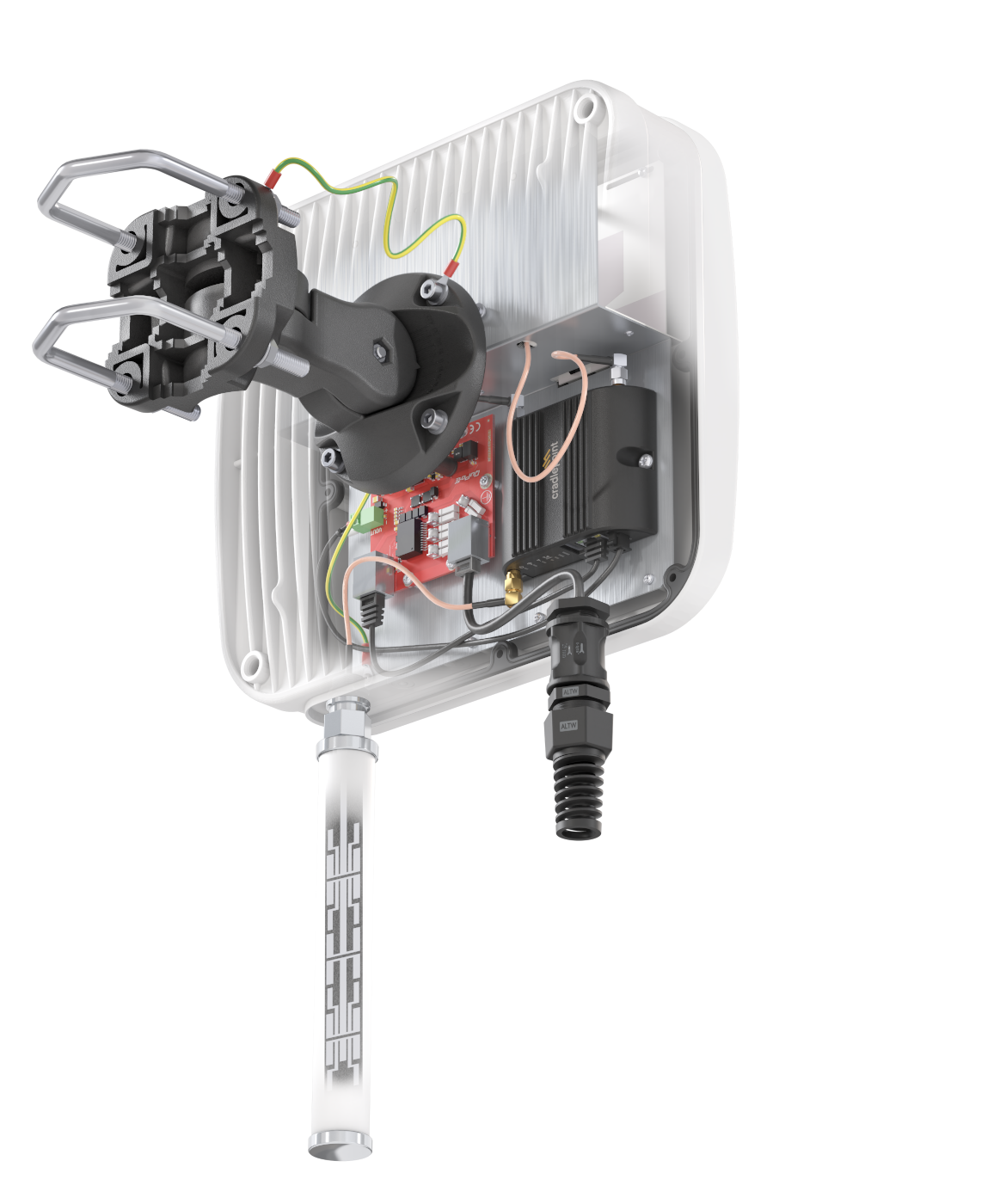

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Cradlepoint IBR200 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment.

Outdoor Wi-Fi dual band 2.4Ghz & 5GHz omni antenna is included in the set and optional for use with IBR200.

The set contains a 802.3af PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection. Using QuWireless splitter provides 3KA surge and lightning protection.

Technical specification

Any question?

Why QuMax for Cradlepoint IBR200

Learn more about your profit

All antennas and Cradlepoint router integrated in one enclosure

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the router

Made in Europe

SPECIFICATION

PRODUCT DETAILS

Frequency

0.694 - 0.96 GHz

1.7 - 2.2 GHz

2.2 - 2.7 GHz

Supported LTE/5G bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256

Gain

0.694 - 0.96 GHz : 4 dBi

1.7 - 2.2 GHz : 5 dBi

2.2 - 2.7 GHz : 6 dBi

Front-to-Back

>8 dB

VSWR

<1.30, max <1.80

Beamwidth

90°/90° ±30°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for Wi-Fi antenna

Gain for Wi-Fi antenna

VSWR for LTE antenna

Gain for LTE antenna

LTE from 700MHz to 900MHz

Elevation

Azimuth

LTE from 1.71GHz to 2.17GHz

Elevation

Azimuth

LTE from 2.3GHz to 2.7GHz

Elevation

Azimuth

Wi-Fi 2.4GHz and 5GHz

Wi-Fi Elevation

Wi-Fi Azimuth

ANY QUESTIONS?

DIMENSIONS

PRODUCT DETAILS

Download

Datasheet QuMax for Cradlepoint IBR200

Download

Installation Guide

Download

IP67 Certificate

Download
