QuMax for Teltonika RUT2xx ver. US (Band71)

Antenna QuMax for Teltonika RUT2xx ver. US (Band71)

P/n: A240MUS

INTEGRATED MULTI-BAND 5G DIRECTIONAL ANTENNA + WI-FI OMNI ANTENNA + PLACE TO INSTALL TELTONIKA RUT260/RUT241/RUT240/RUT200/RUT230 (ALL-IN-ONE)

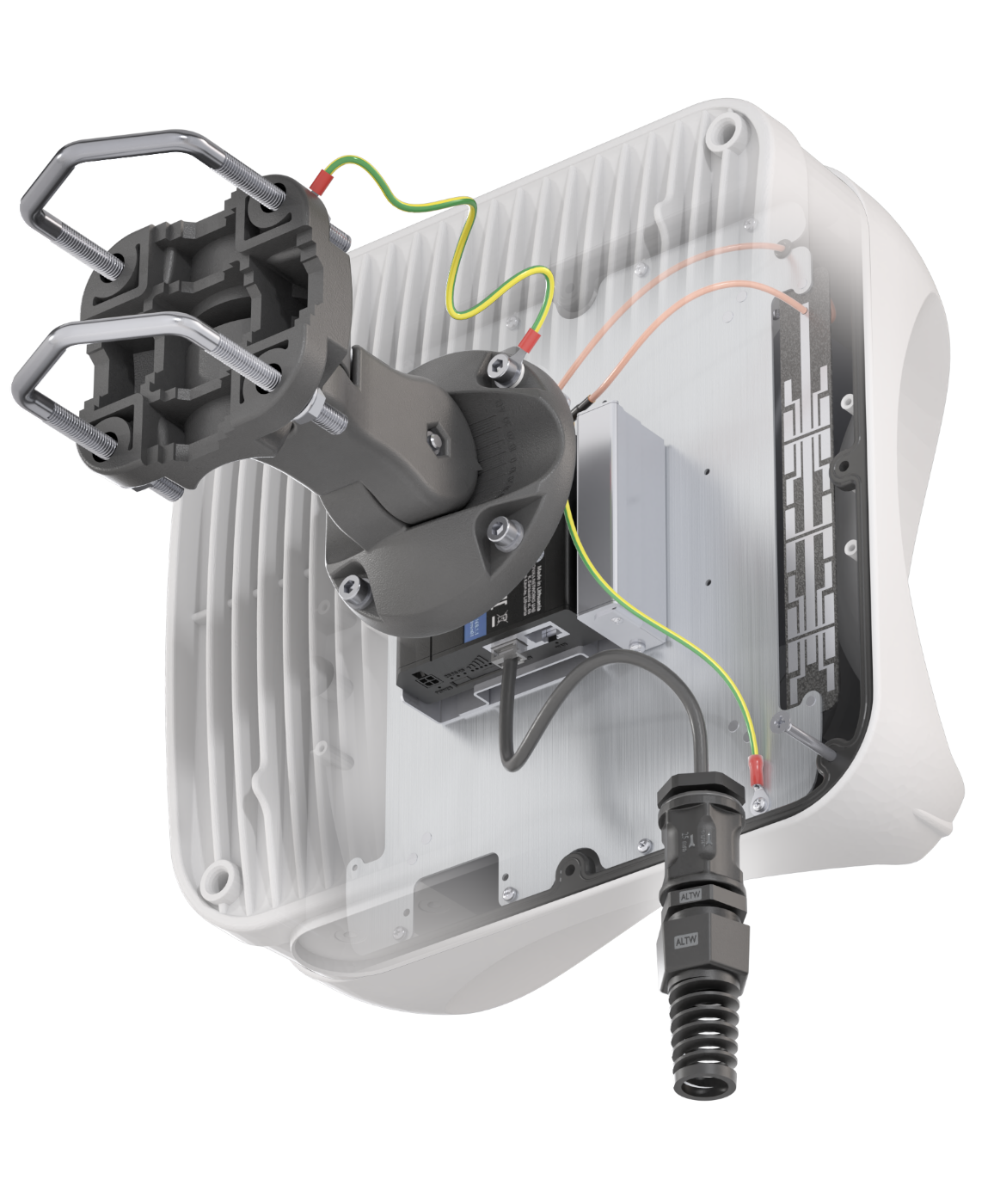

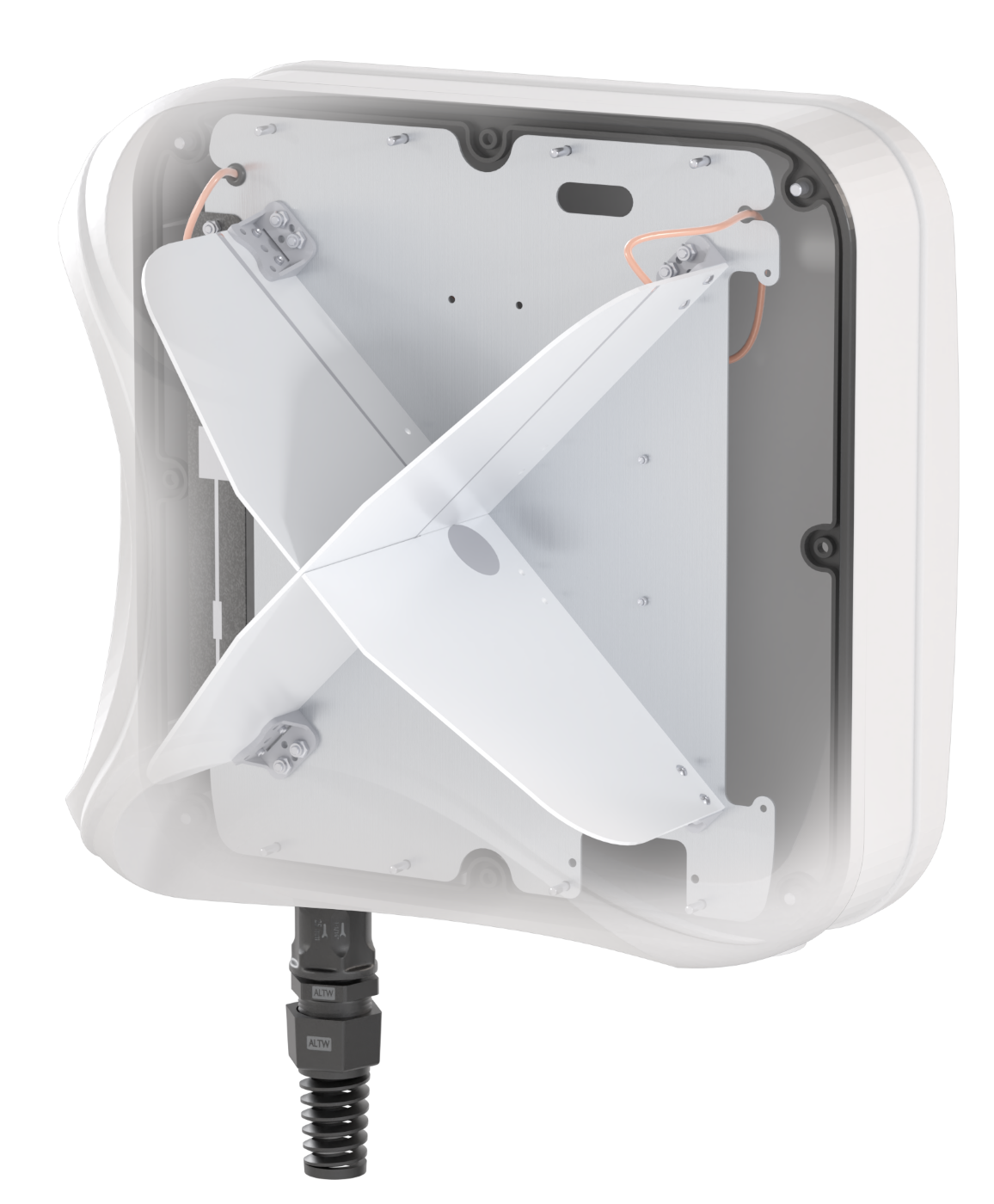

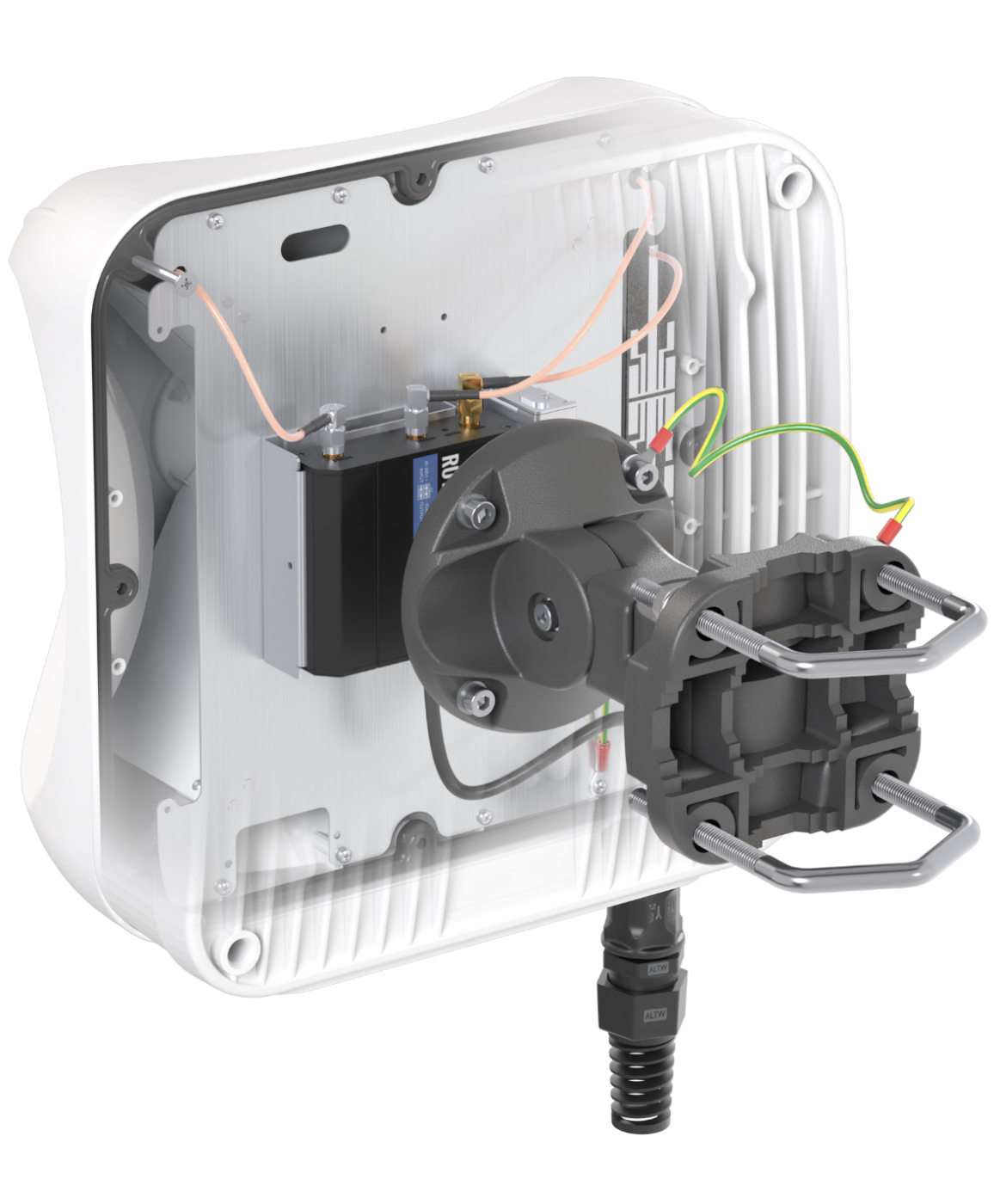

QuMax for RUT2xx ver. US (Band71) is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT271, RUT260, RUT241, RUT240, RUT230 or RUT200 router installed inside IP68 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also Wi-Fi omni antenna.

NOTE: For RUT230 one LTE antenna is unplugged.

Technical specification

Any question?

Why QuMax for Teltonika RUT2xx ver. US (Band71)

Learn more about your profit

OUTDOOR ANTENNA WORKS IN ANY WEATHER CONDITIONS, IP68

MOUNTING SYSTEM WITH TWO PLANES, 60 DEGREES REGULATION

Wide band 600-6000MHz, 5G technology

ALL ANTENNAS AND TELTONIKA ROUTER INTEGRATED IN ONE ENCLOSURE

Made in Europe

SPECIFICATION

PRODUCT DETAILS

Frequency

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.6 GHz

4.7 - 6.0 GHz

Gain

617 - 960 MHz : 6 dBi

1.7 - 2.7 GHz : 7 dBi

3.3 - 4.6 GHz : 7 dBi

4.7 - 6.0 GHz : 5.5dBi

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<2.00, max <3.00

Beamwidth

80°/80° ±15°

Polarization

X (+-45degrees)

Impedance

50 Ω

Connector

2x SMA

Cable type

RG316
