QuBox Medium Slim

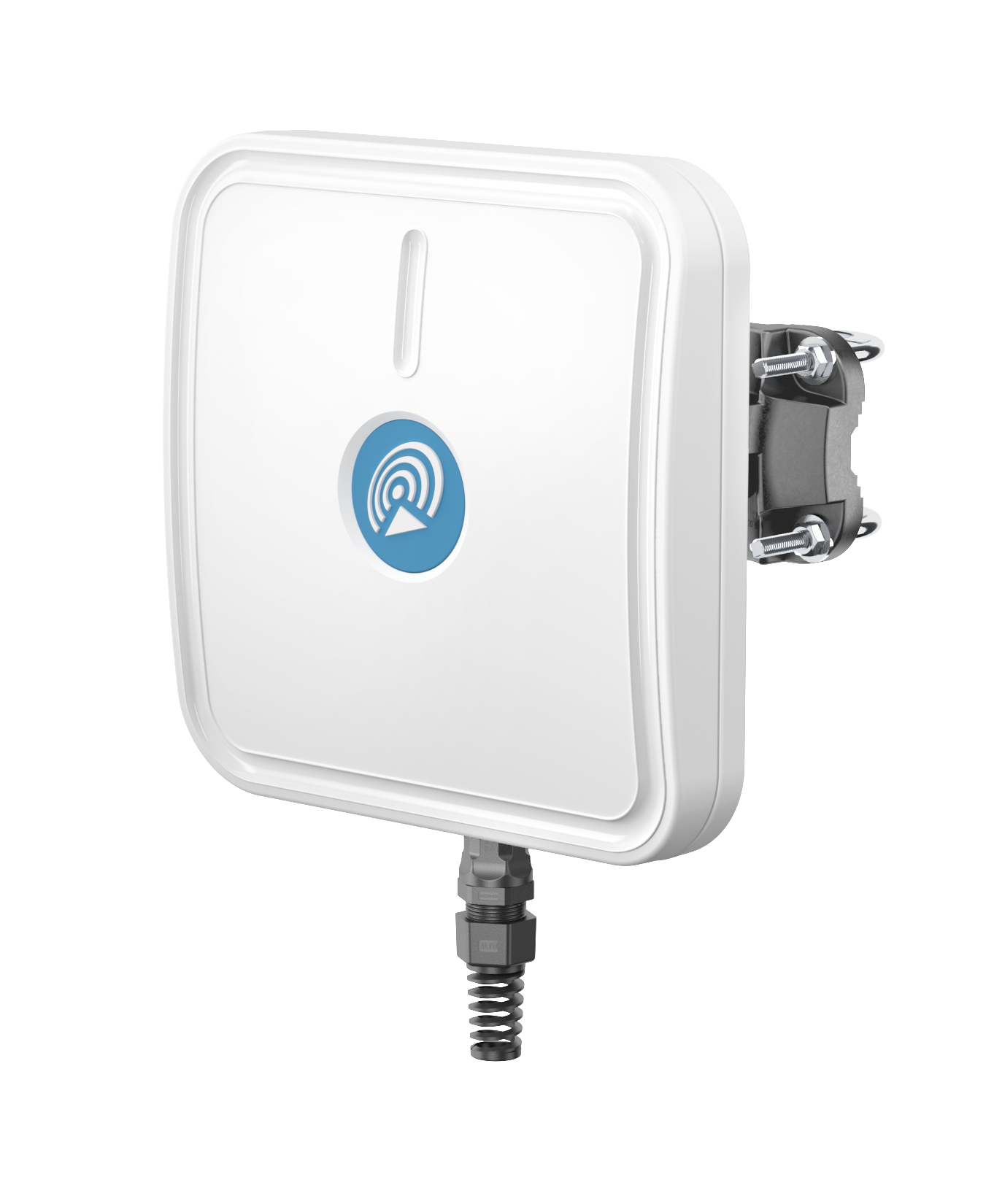

Solid QuBox IP67 enclosure for all outdoor solutions

Aesthetic design predispose them to be installed even in visible places like public/administration buildings (as hotspot). The system is predicted to be used outdoor, the IP67 waterproof level is achieved by special sealing system, what makes it resistant for any weather conditions. QuBOX Medium Slim has flat top which is used to mount additional devices like omnidirectional antennas in it, there is also 4 additional holes to install up to 4 another antennas on the bottom. QuBOX Medium Slim comes with made with fiberglass WiMount mounting system. The system can be ordered with any antenna board from QuWireless offer which is compatible with this box type.

Why QuBox Medium Slim

Learn more about your profit

Solid QuBox works in any weather conditions, IP67

Wall or mast mounting system with two planes, 60 degrees regulation

UV-resistant ABS

Made in Europe

QuBox Medium Slim

SPECIFICATION

PRODUCT DETAILS

Mechanical Specification

Material

ABS (UV Resistant)

Outer dimensions

27 x 27 x 6.2 cm

10.63 x 10.63 x 2.44 inch

Ingress protection

IP67

Connector

RJ45

Weight

1.4 kg

Operating temperature

from -40°C to 80°C

from -40°F to 176°F

OUTER DIMENSIONS

PRODUCT DETAILS
QuBox Medium SlimQuBox Medium Slim

INNER DIMENSIONS

QuBox Medium SlimQuBox Medium Slim

WHAT'S IN THE BOX?

PRODUCT DETAILS

IN THE BOX

QuBox Medium Slim

Parts of QuBox Medium Slim
1 x
Parts of QuBox Medium Slim
1 x
Parts of QuBox Medium Slim
2 x
Parts of QuBox Medium Slim
1 x
Parts of QuBox Medium Slim
4 x M6 x 18
Parts of QuBox Medium Slim
4 x
Parts of QuBox Medium Slim
4 x M8
Parts of QuBox Medium Slim
4 x Mounting footer
Parts of QuBox Medium Slim
4 x M3.1 x 10 Mounting screw
Parts of QuBox Medium Slim
4 x Double sided sticky pad

Download

Datasheet QuBox Medium Slim
Download
IP67 Certificate
Download
3D model
