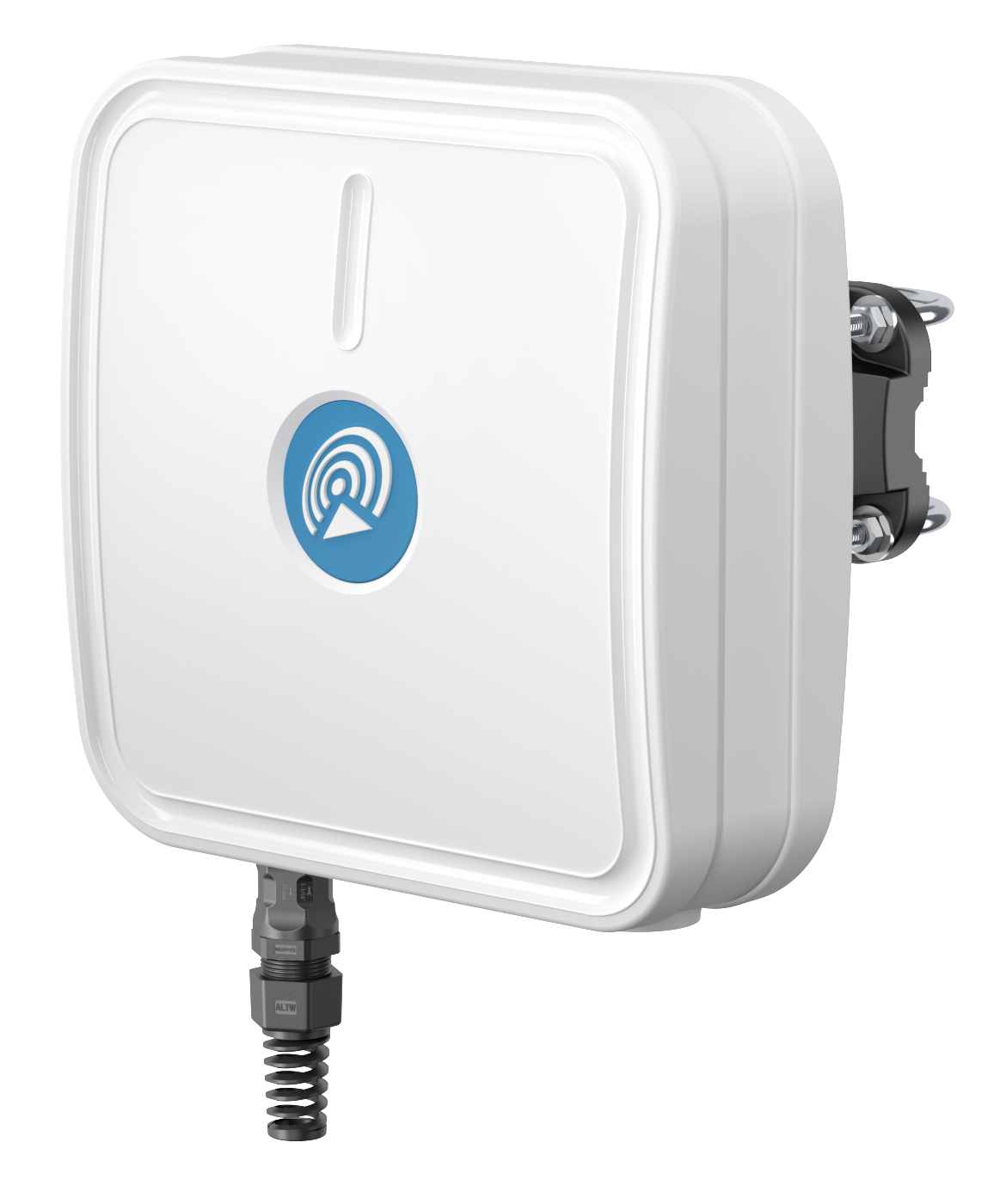

Antenna QuMax for Robustel R3000 Lite

P/n: AR3000LM

INTEGRATED MULTI-BAND LTE DIRECTIONAL ANTENNA + POE SPLITTER + PLACE TO INSTALL ROBUSTEL R3000 LITE (ALL-IN-ONE)

QuMax antenna for Robustel R3000 Lite router is a perfect outdoor device for improving the signal in rural/suburban and locations where the mobile signal is weak. It has embedded directional LTE antenna. If you use R3000 Lite with QuMax antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.

Why QuMax for Robustel R3000 Lite

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

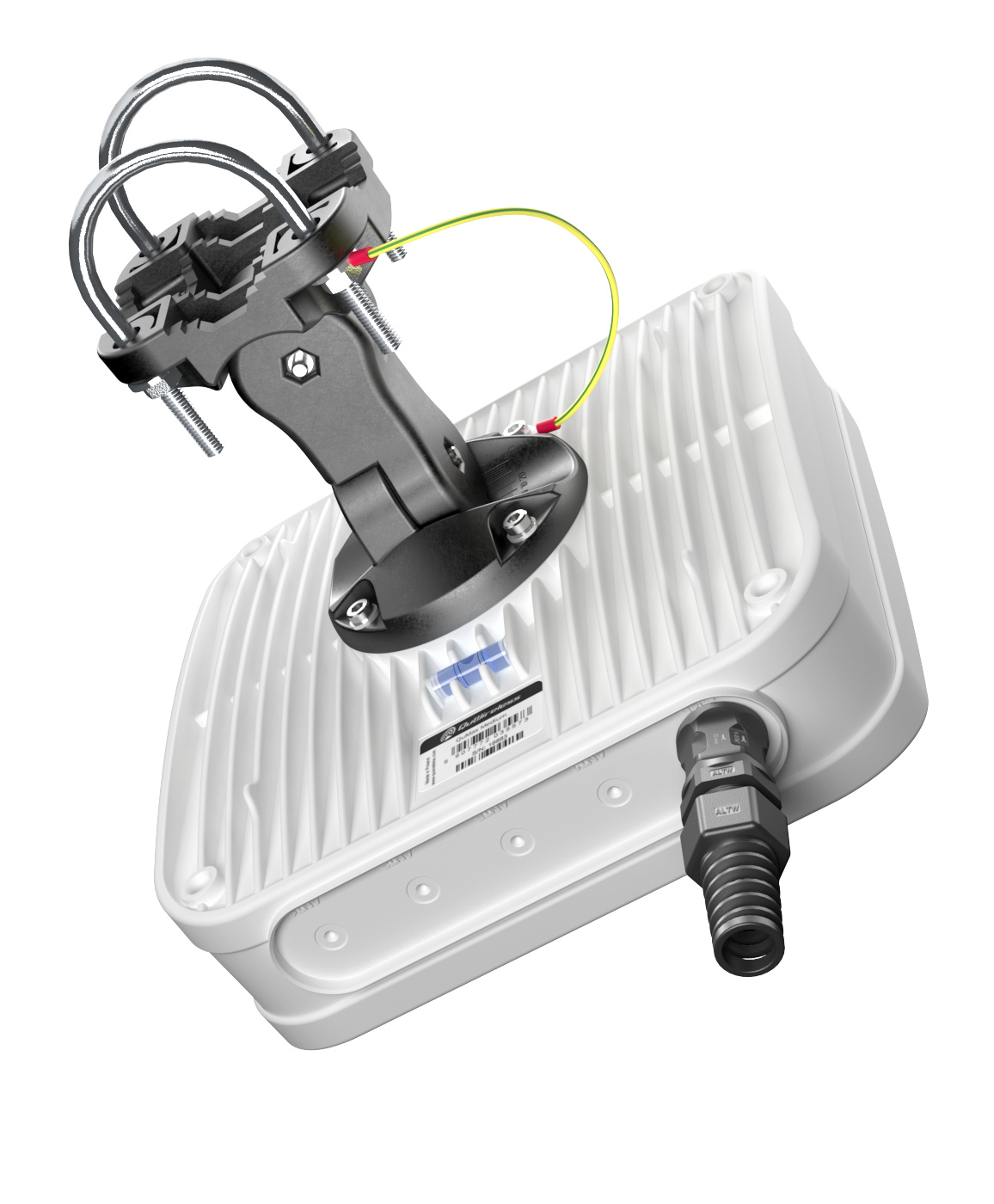

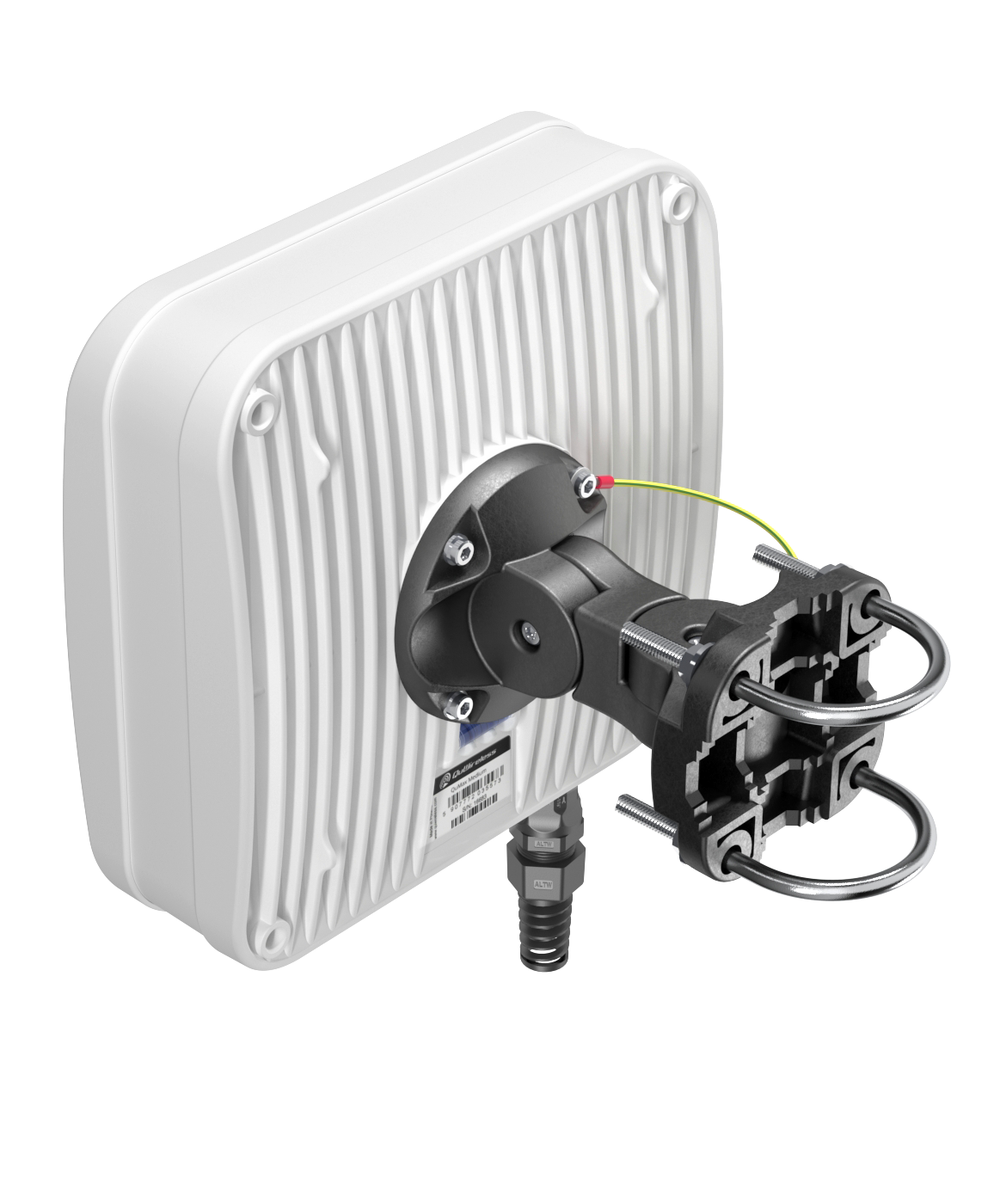

Mounting system with two planes, 60 degrees regulation

ANTENNA PERFECTLY MATCHED WITH THE ROBUSTEL R3000 LITE

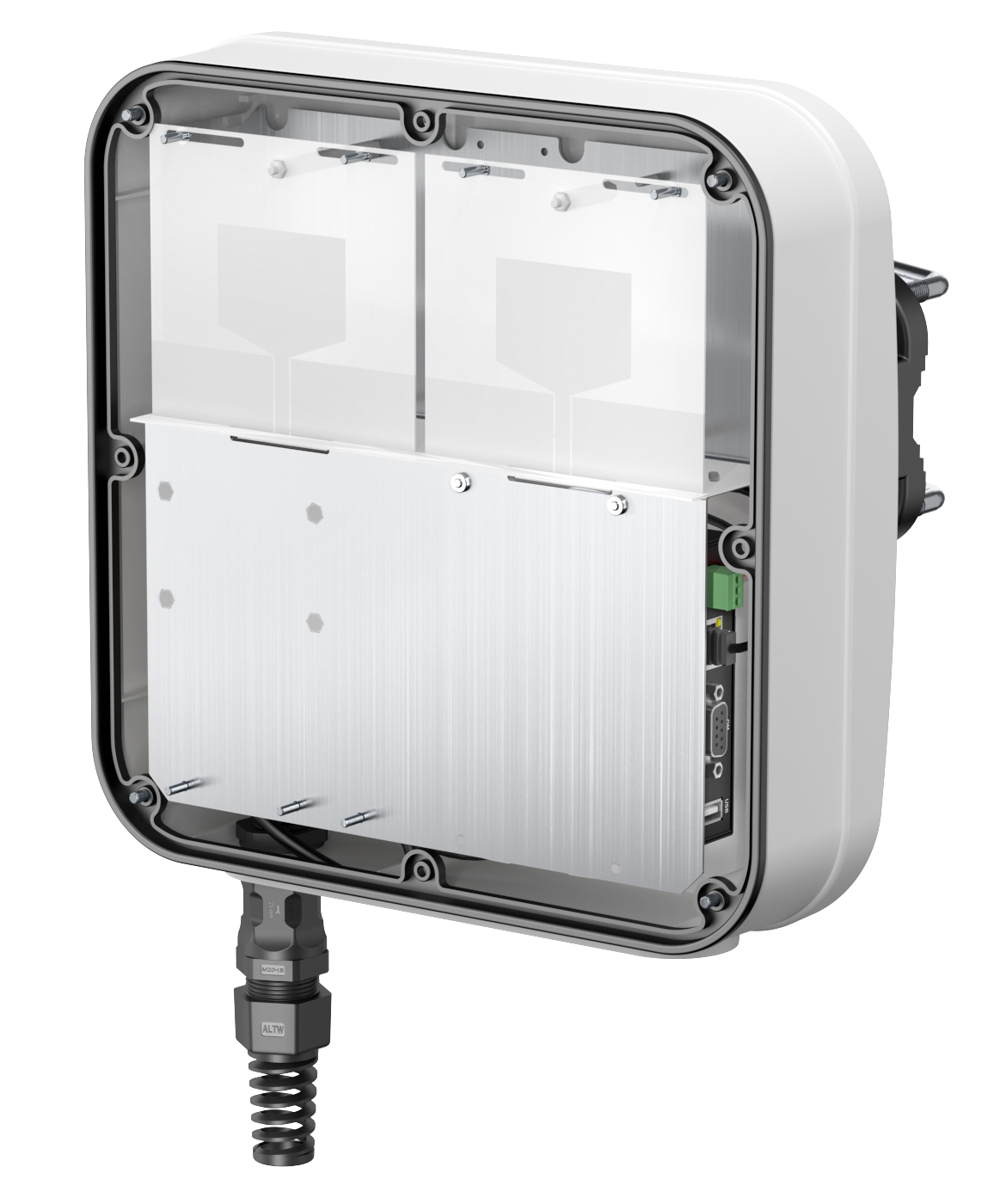

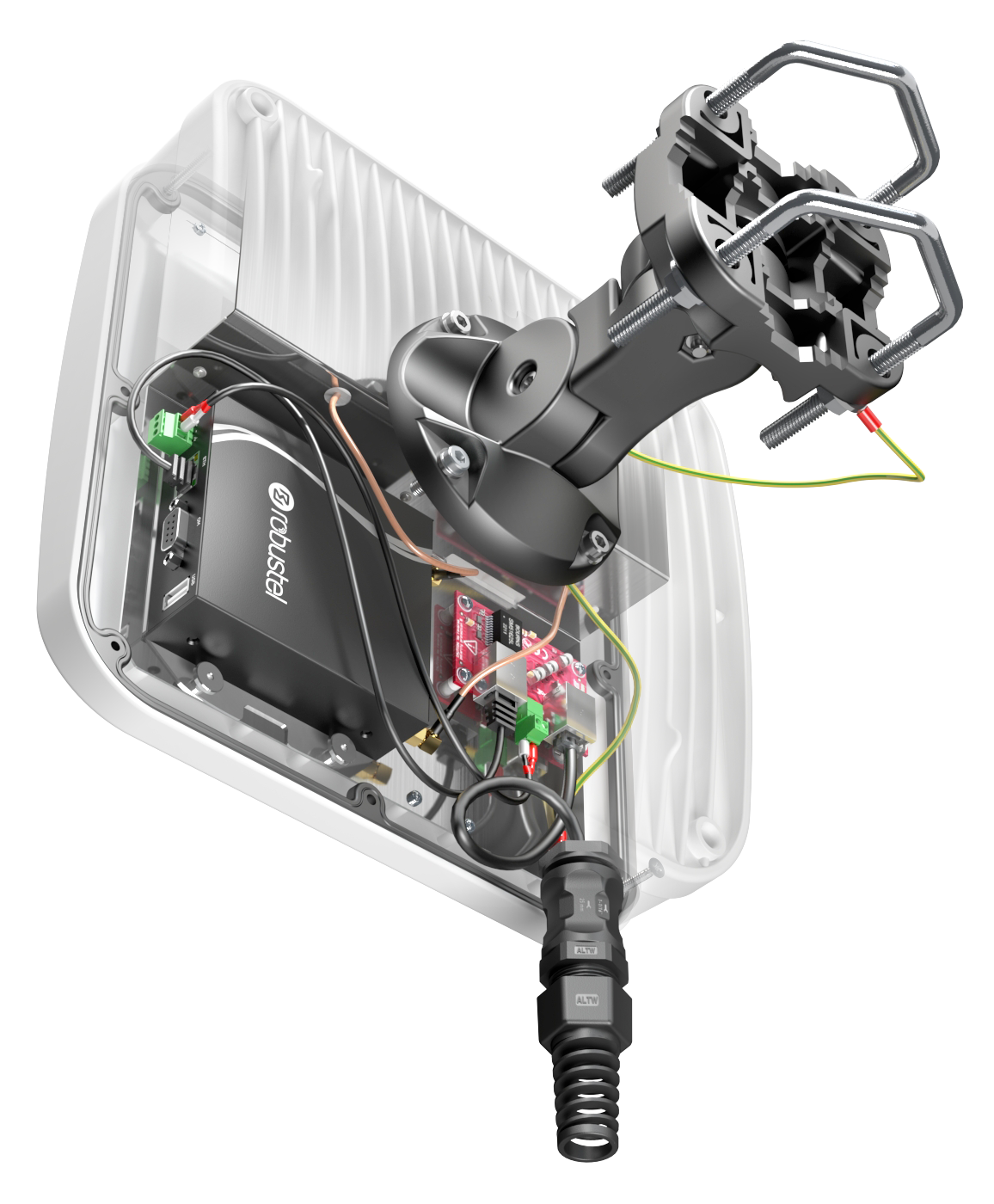

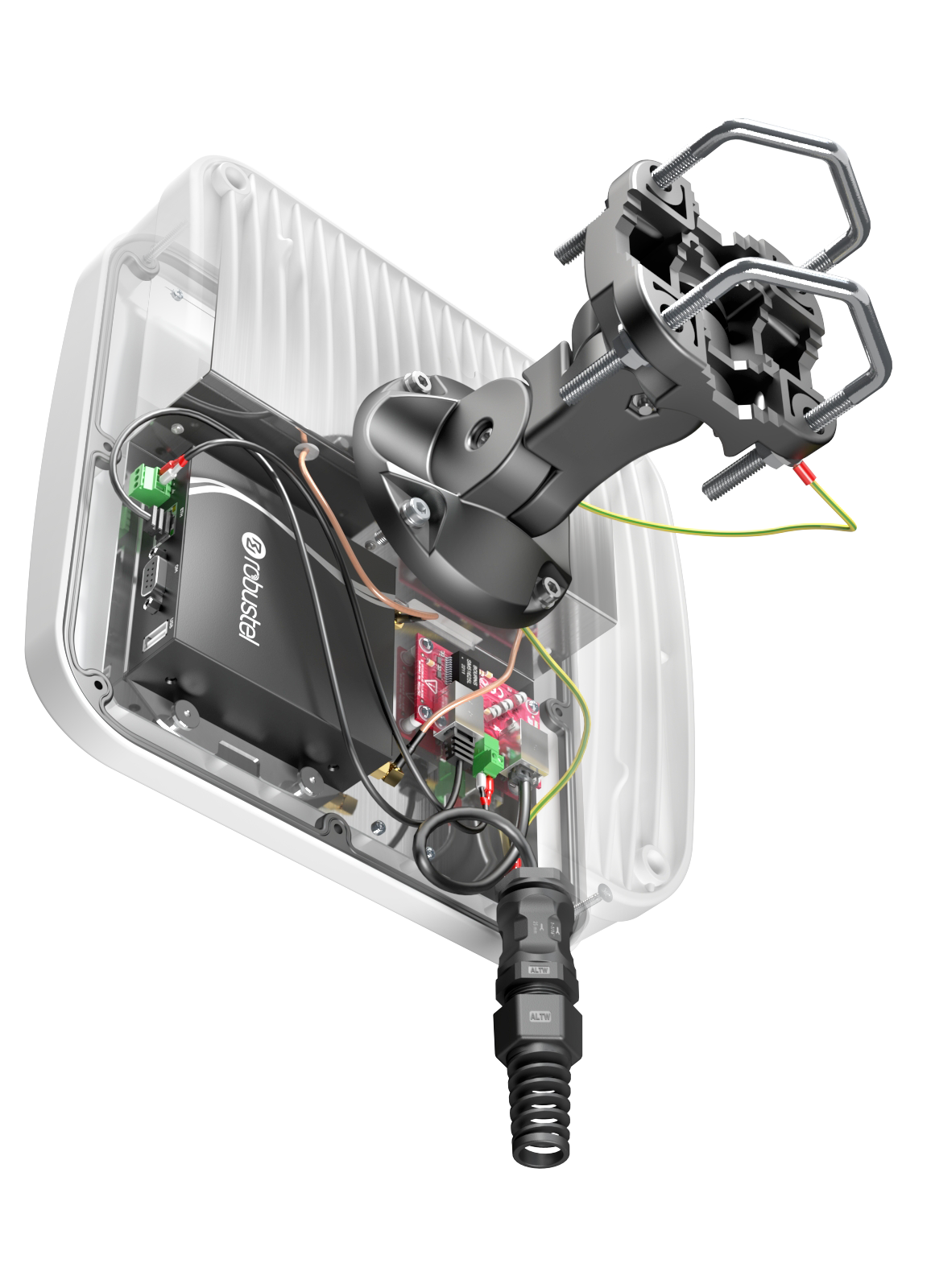

ALL ANTENNAS AND ROBUSTEL GATEWAY INTEGRATED IN ONE ENCLOSURE

Made in Europe

QuMax for Robustel R3000 Lite

SPECIFICATION

PRODUCT DETAILS

LTE ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS

Frequency

694 - 960 MHz

1.7 - 2.2 GHz

2.2 - 2.7 GHz

Supported LTE/5G bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256

Gain

694 - 960 MHz : 4 dBi

1.7 - 2.2 GHz : 5 dBi

2.2 - 2.7 GHz : 6 dBi

VSWR

<1.70, max <2.00

Beamwidth

70°/70° ±15°

Polarization

Dual polarized X-Pol

Impedance

50 Ω

Front-to-Back

>10 dB

PLOTS

PRODUCT DETAILS

VSWR

VSWR of QuMax for Robustel R3000 Lite

Gain

Gain of QuMax for Robustel R3000 Lite
From 700MHz to 900MHz
Elevation
Azimuth
From 1.71GHz to 2.17GHz
Elevation
Azimuth
From 2.3GHz to 2.7GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuMax for Robustel R3000 LiteQuMax for Robustel R3000 Lite

Download

Datasheet QuMax for Robustel R3000 Lite
Download
3D MODEL
Download
Installation Guide
Download
IP67 Certificate
Download
