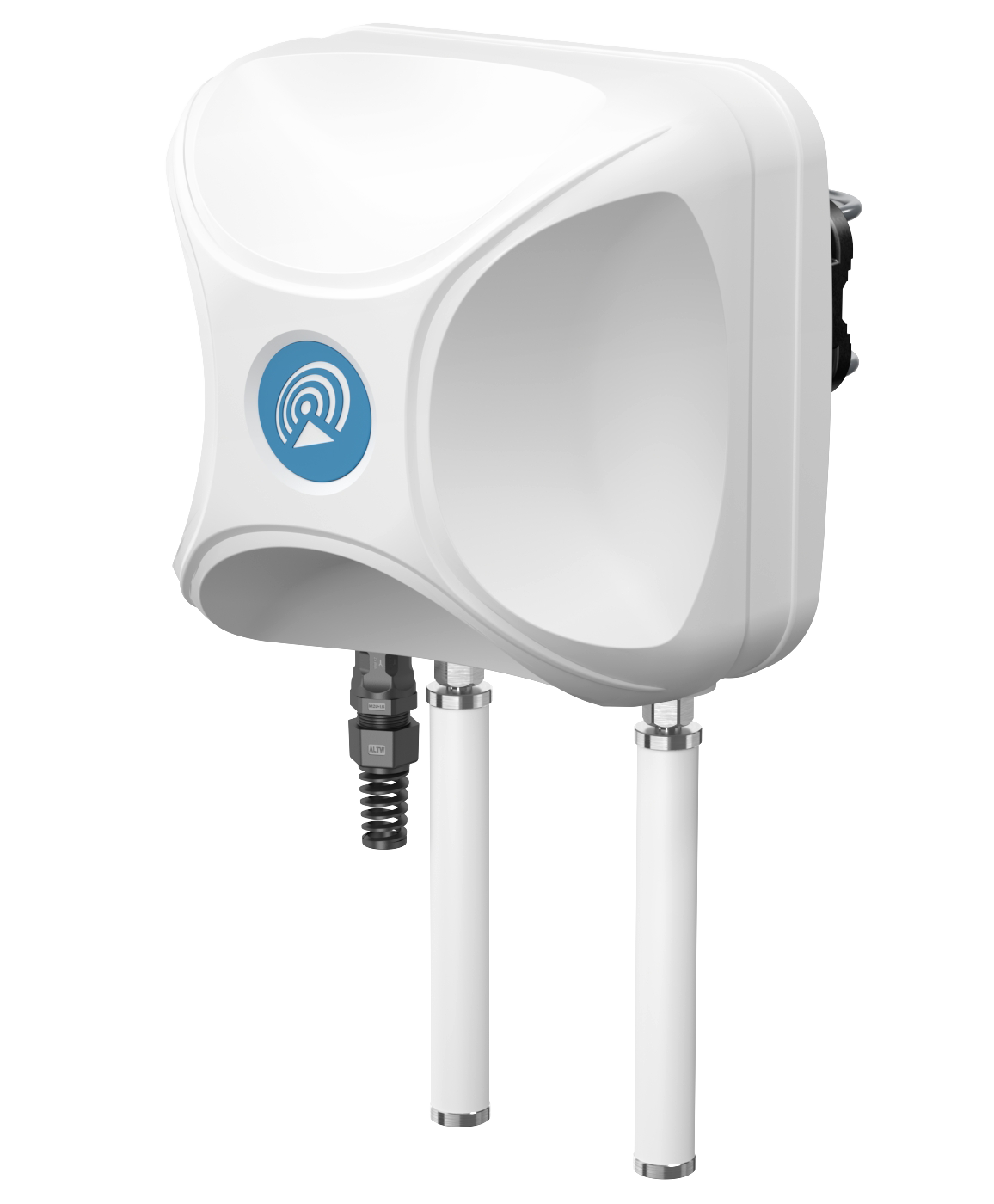

Antenna QuMax for Robustel R3000 LoRa

P/n: AR3000LRM

INTEGRATED LORA ANTENNA + MULTI-BAND LTE OMNI ANTENNA + POE SPLITTER + PLACE TO INSTALL ROBUSTEL R3000 LG (ALL-IN-ONE)

QuMax all-in-one antenna for Robustel R3000 LG router is the perfect choice for extending the reach and reliability of your Long Range (LoRa) wireless communication networks. It has embedded omni LTE and LoRa antenna. If you use R3000 LG with QuMax antenna, you get an integrated complete solution with embedded gateway and multi band antennas in one enclosure.

The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.

Why QuMax for Robustel R3000 LoRa

Learn more about your profit

Outdoor antenna works in any weather conditions, IP68

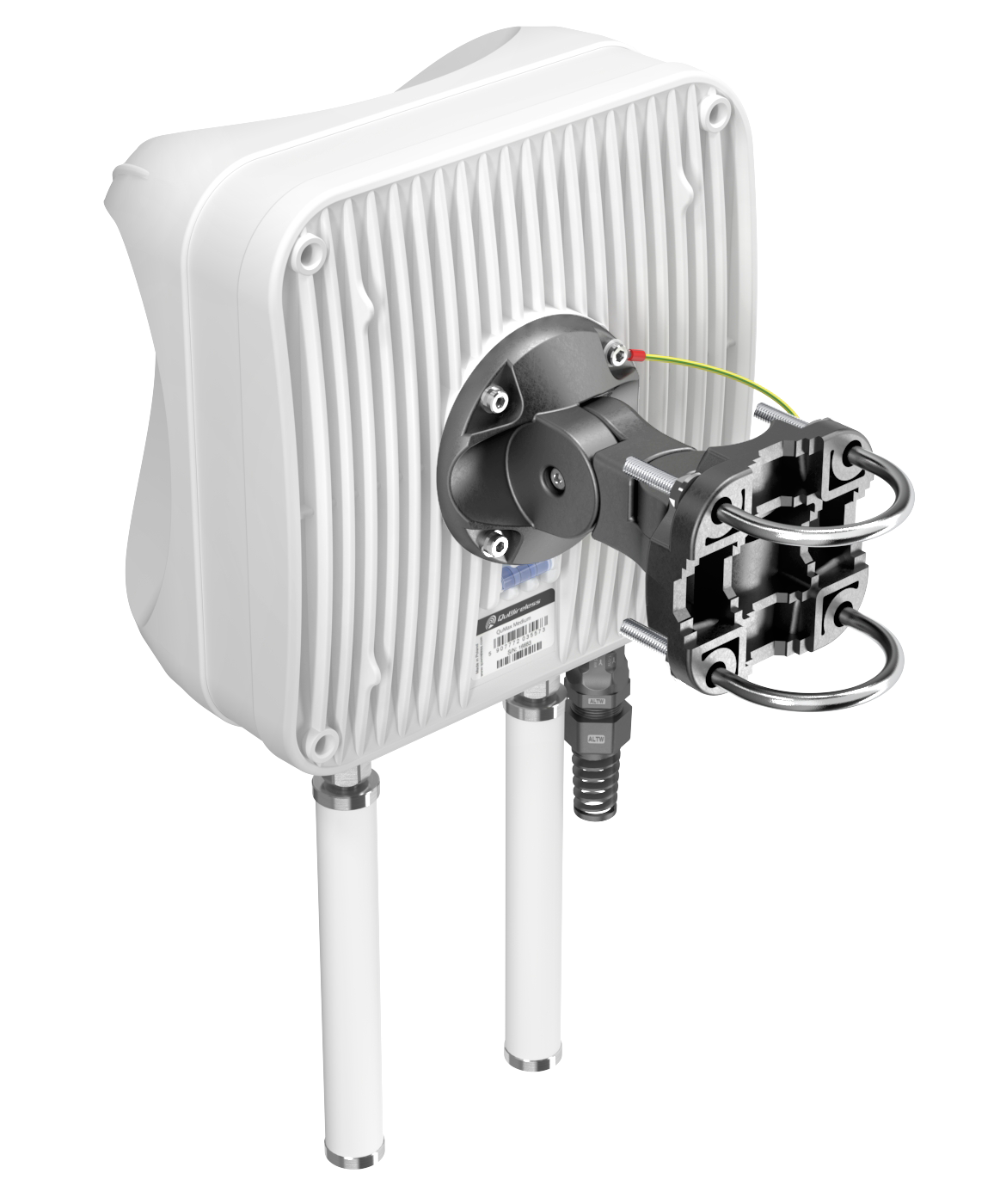

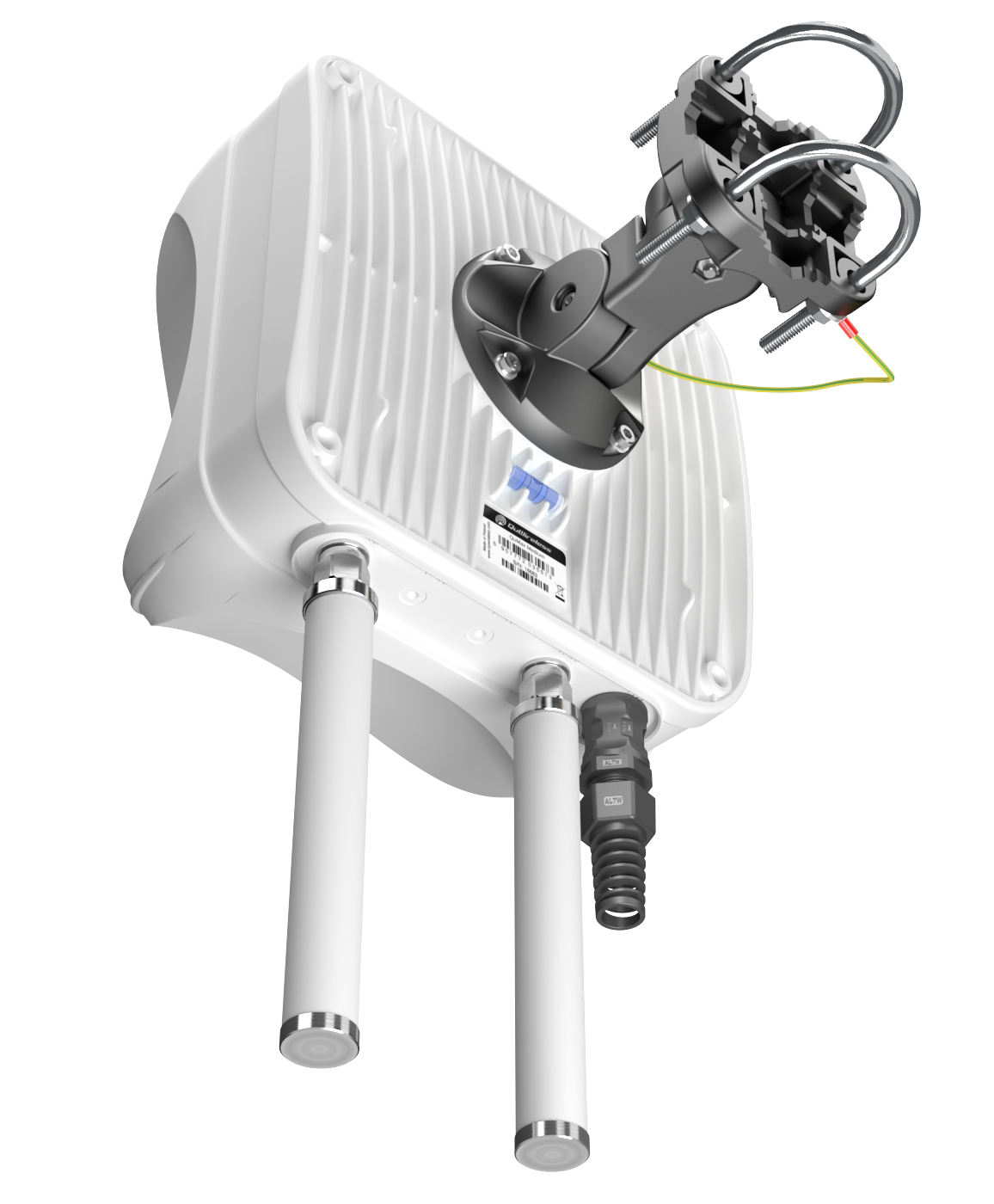

MOUNTING SYSTEM WITH TWO PLANES, 60 DEGREES REGULATION

ANTENNA PERFECTLY MATCHED WITH THE ROBUSTEL R3000 LG

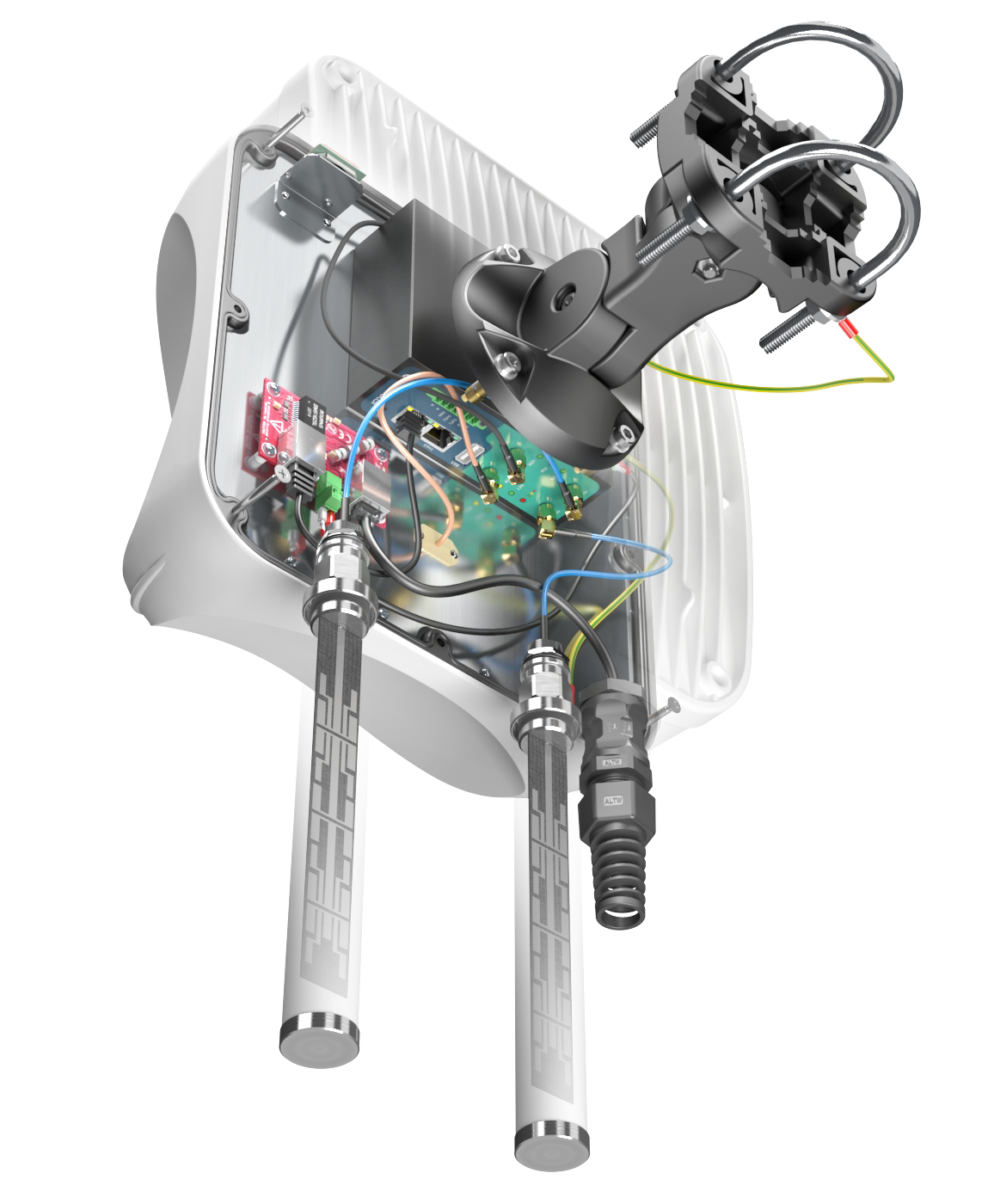

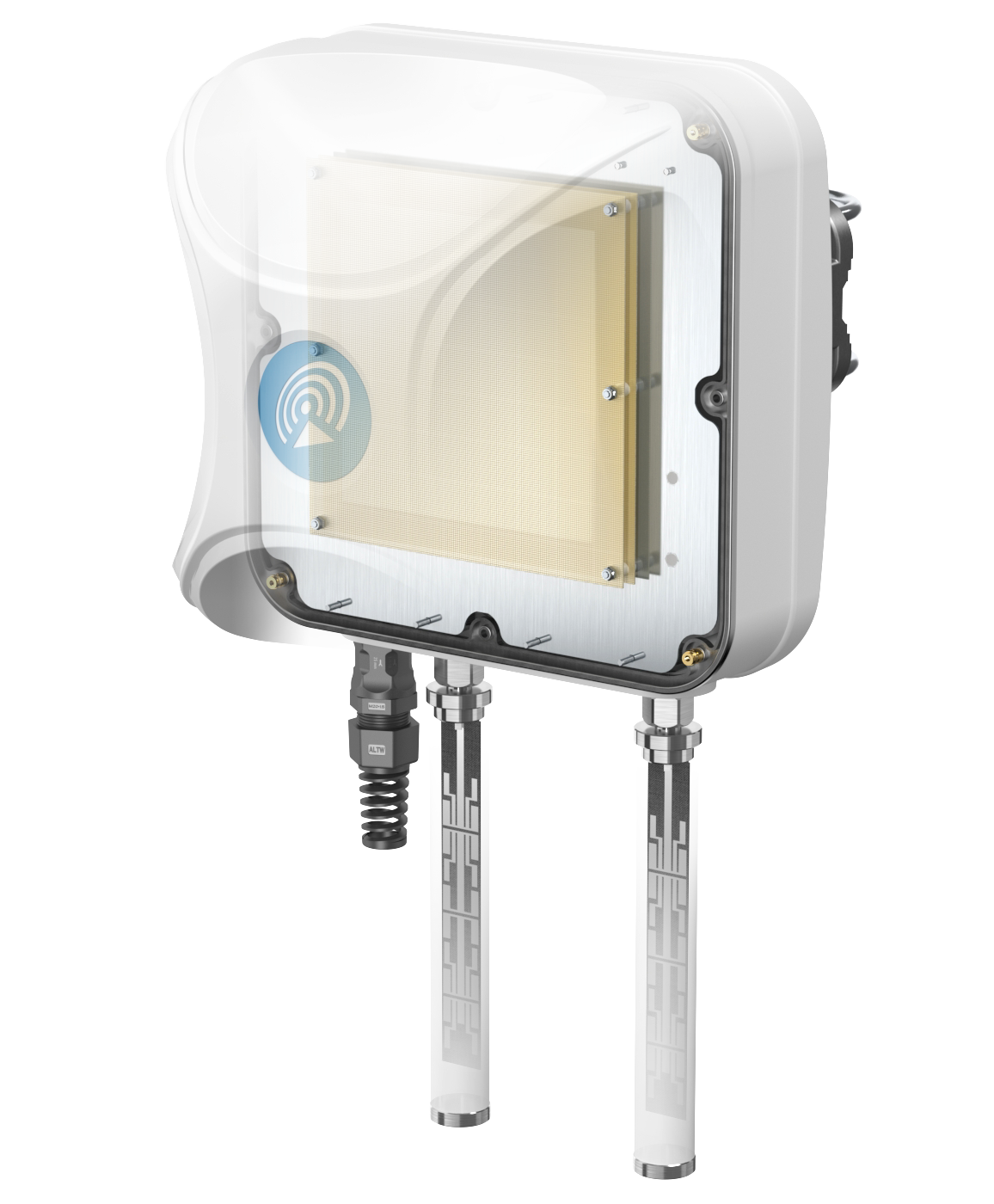

ALL ANTENNAS AND ROBUSTEL ROUTER INTEGRATED IN ONE ENCLOSURE

Made in Europe

QuMax for Robustel R3000 LoRa

SPECIFICATION

PRODUCT DETAILS

LORA ANTENNA SPECIFICATION

LTE ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS

FREQUENCY

868 MHz (EU868, IN865, RU864)

GAIN

8.5 dBi

VSWR

<1.80, max <2.00

BEAMWIDTH

75°/75° ±10°

POLARIZATION

Vertical

IMPEDANCE

50 Ω

FRONT TO BACK

>17 dB

PLOTS

PRODUCT DETAILS

LTE VSWR

LTE VSWR of QuMax for Robustel R3000 LoRa

LTE Gain

LTE Gain of QuMax for Robustel R3000 LoRa

LoRa VSWR

LoRa VSWR of QuMax for Robustel R3000 LoRa

LoRa Gain

LoRa Gain of QuMax for Robustel R3000 LoRa
LTE From 700MHz to 900MHz
Elevation
Azimuth
LTE From 1.71GHz to 2.17GHz
Elevation
Azimuth
LTE From 2.3GHz to 2.7GHz
Elevation
Azimuth
LoRa 868 MHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuMax for Robustel R3000 LoRaQuMax for Robustel R3000 LoRa

Download

Datasheet QuMax for Robustel R3000 LoRa
Download
Installation Guide
Download
IP67 Certificate
Download
IP68 Certificate
Download
