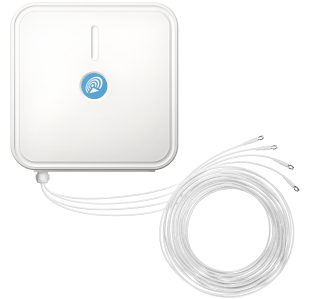

QuPanel LTE MIMO 4x4
5m cable P/N: APLM4 / 10m cable P/N: APLM4-1
Directional multiband LTE MIMO 4x4 antenna
QuPanel LTE directional MIMO 4x4 antenna is predicted for 4G LTE high categories from cat 5 up to cat 19. The antenna improves the signal in rural/suburban and locations where the mobile signal is weak. That antenna is predicted to be installed on the buildings (on the pole or on the wall). Due to very wide working frequency range, the antenna is universal client for LTE bands like LTE700/800/1800/1900/2100/2300/2600. It’s compatible with all MIMO 4x4 LTE modems and routers working in categories: cat 5, cat 6, cat 7, cat 9, cat 10, cat 11, cat 12, cat 13, cat 15, cat 16, cat 18, cat 19, cat 20.

LTE ANTENNA SPECIFICATION | |
---|---|
Frequency | 0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz |
Supported LTE/5G bands | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95 |
Gain | 0.694 - 0.96 GHz : 4 dBi 1.7 - 2.2 GHz : 5 dBi 2.2 - 2.7 GHz : 6 dBi |
Front-to-Back | >8 dB |
VSWR | <1.30, max <1.80 |
Beamwidth | 90°/90° ±30° |
Polarization | 4x Vertical |
Impedance | 50 Ω |
MECHANICAL SPECIFICATION | |
---|---|
Materials | ABS, aluminum, PTFE, Fiberglass |
Ingress protection | IP67 |
Dimensions | 272 x 276 x 96 mm 10.71 x 10.87 x 3.78 inch |
Weight | 1.8 kg 3.97 lbs |
Operating temperature | From -40°C to 75°C From -40°F to 167°F |
Cable length | 5m (P/N: APLM4) or 10m (P/N: APLM4-1) |
Cable type | LMR195 white |
Connector type | 4x SMA plug |



Frequency bands
LTE / 4G
GSM
GSM
680 MHz
5
6
8
12
13
14
17
18
19
20
26
27
28
29
44
67
68
85
n81
n82
n83
n89
960 MHz
LTE / 4G
UMTS
UMTS
1710 MHz
1
2
3
4
9
10
25
33
34
35
36
37
39
59
62
n80
n84
n86
n95
2170 MHz
LTE / 4G
WCS
DARS
WCS
DARS
2300 MHz
30
40
2400 MHz
LTE / 4G
2400 MHz
7
38
41
53
69
n90
2700 MHz
VSWR

700-900 MHz Azimuth

700-900 MHz Elevation

1710-2170 MHz Azimuth

1710-2170 MHz Elevation

2300-2700 MHz Azimuth

2300-2700 MHz Elevation
